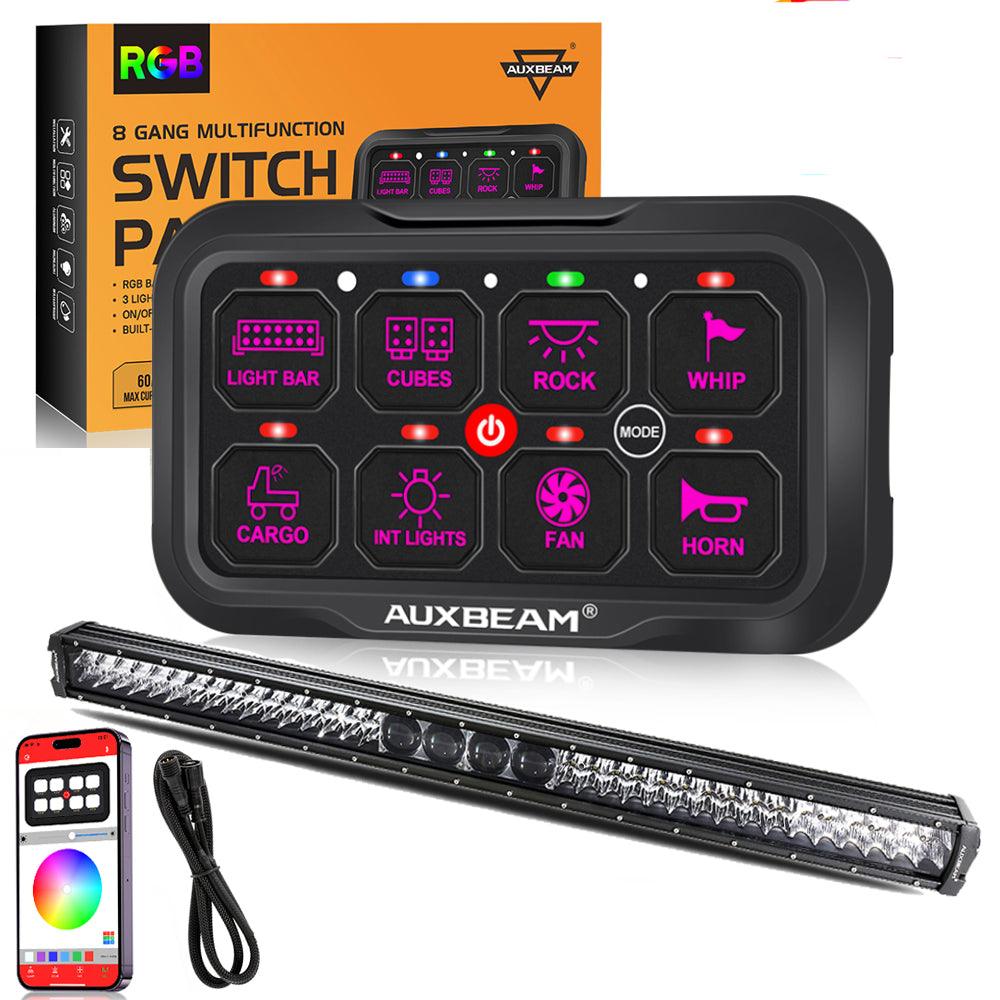

AR-800 RGB Switch Panel with APP+32 Inch 5D-PRO LED Light Bar, Toggle/ Momentary/ Pulsed Mode Supported
TYPE:
TYPE
Quantity:
Choose options
TYPE:
TYPE
Quantity:
We do some big upgrades on switch panel! The latest system can be operated via switch panel or smartphone. It’s not limited to just controlling the “ON/OFF” of the LED Lights or electrical devices. Change the backlight color and lighting modes to have fun programming with Auxbeam latest RGB switch panel!
Specification:
▶32 Inch 5D-PRO LED Light Bar

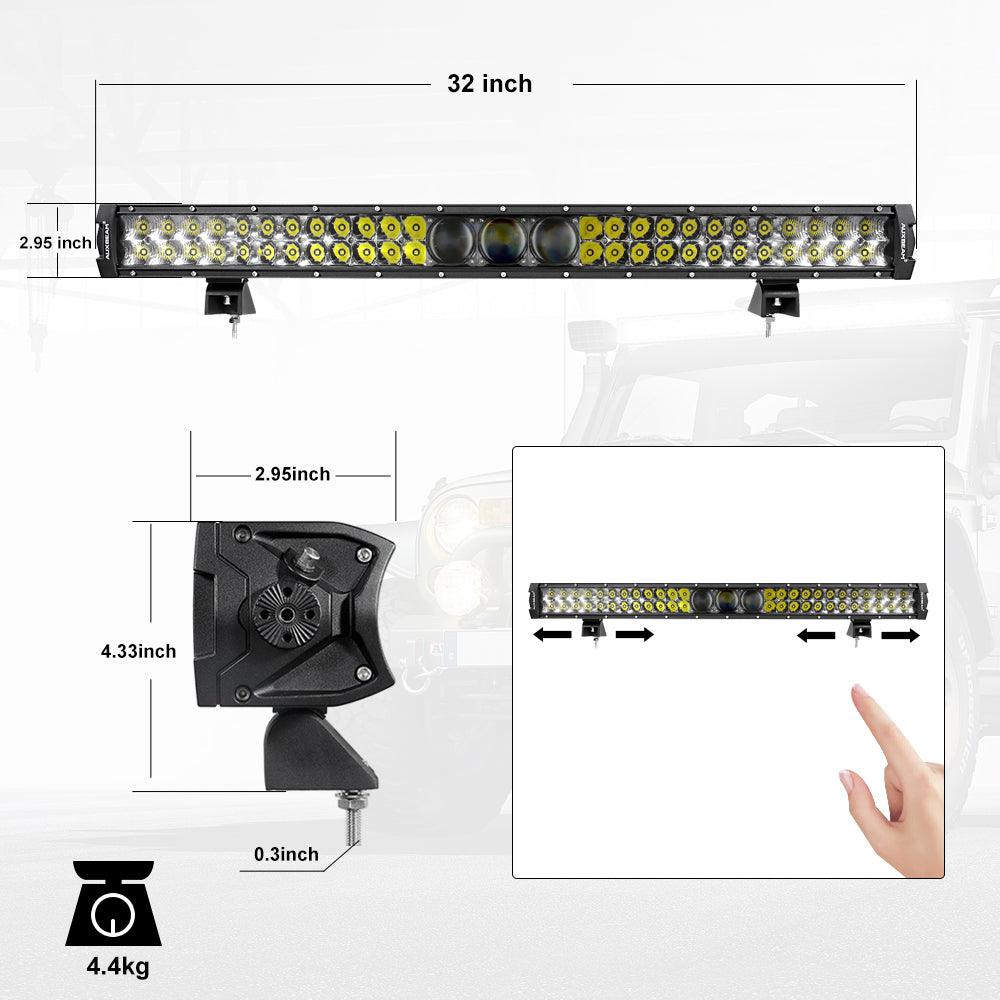

Size: 32"
Wattage: 270W
Input voltage: 10-30V
Lumens: 33000LM

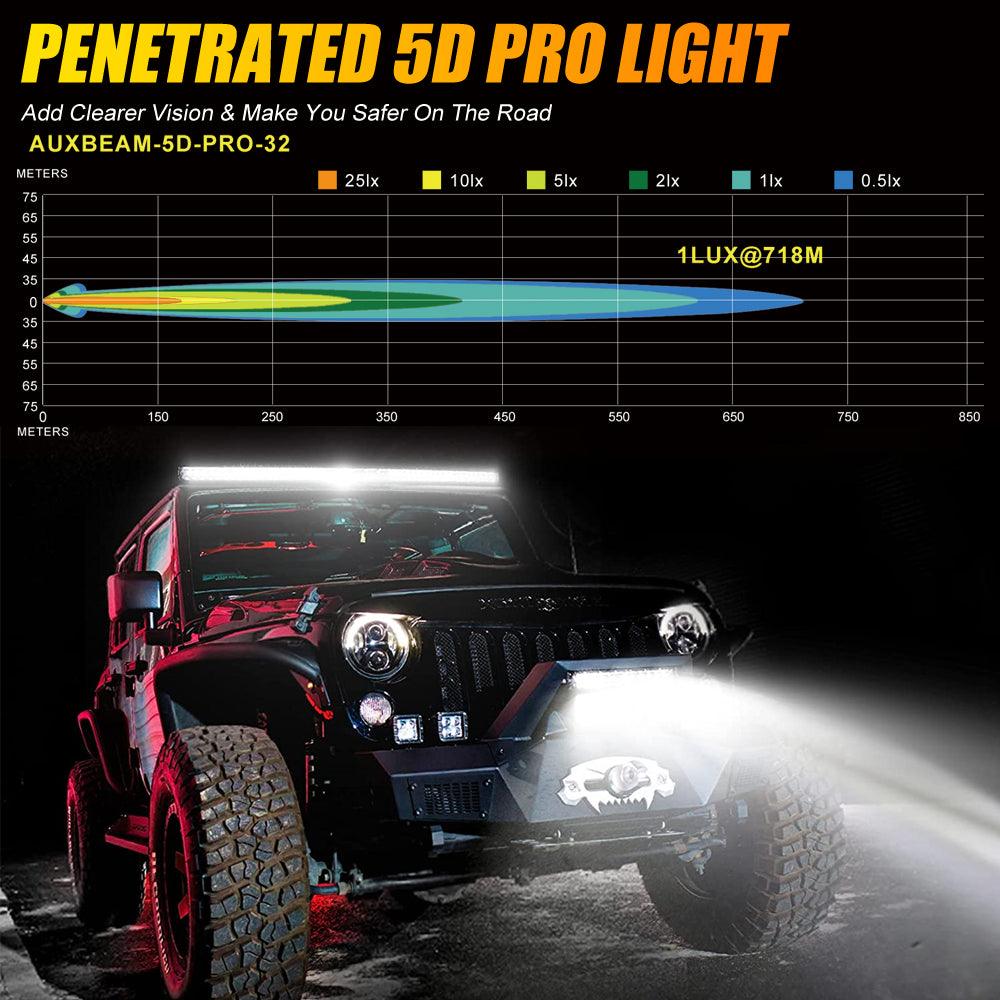

Lighting Distance: 1LUX@718M
LED Type: KW3+P8 chips
LED Chips Quantity: KW3*3+P8*48
Beam Type: Combo with 5D Projectors
Color temperature: 6500K
Waterproof rate: IP68
Color temperature: 6500K
Waterproof rate: IP68
Light color: White
Body color: BLACK
PCS/SET: 1Pcs
Body color: BLACK
PCS/SET: 1Pcs
▶AR-800 RGB Switch Panel with Bluetooth APP
Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1400W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65
Features:
▶32 Inch 5D-PRO LED Light Bar

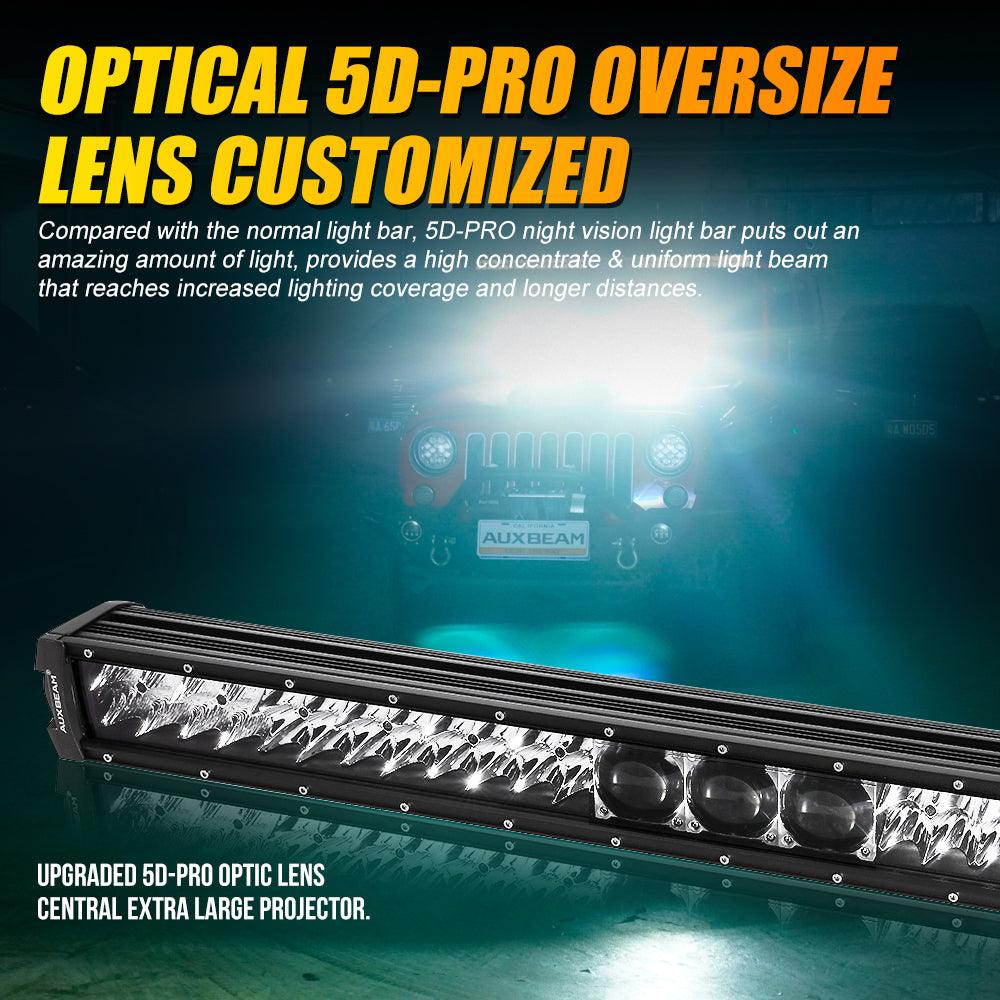

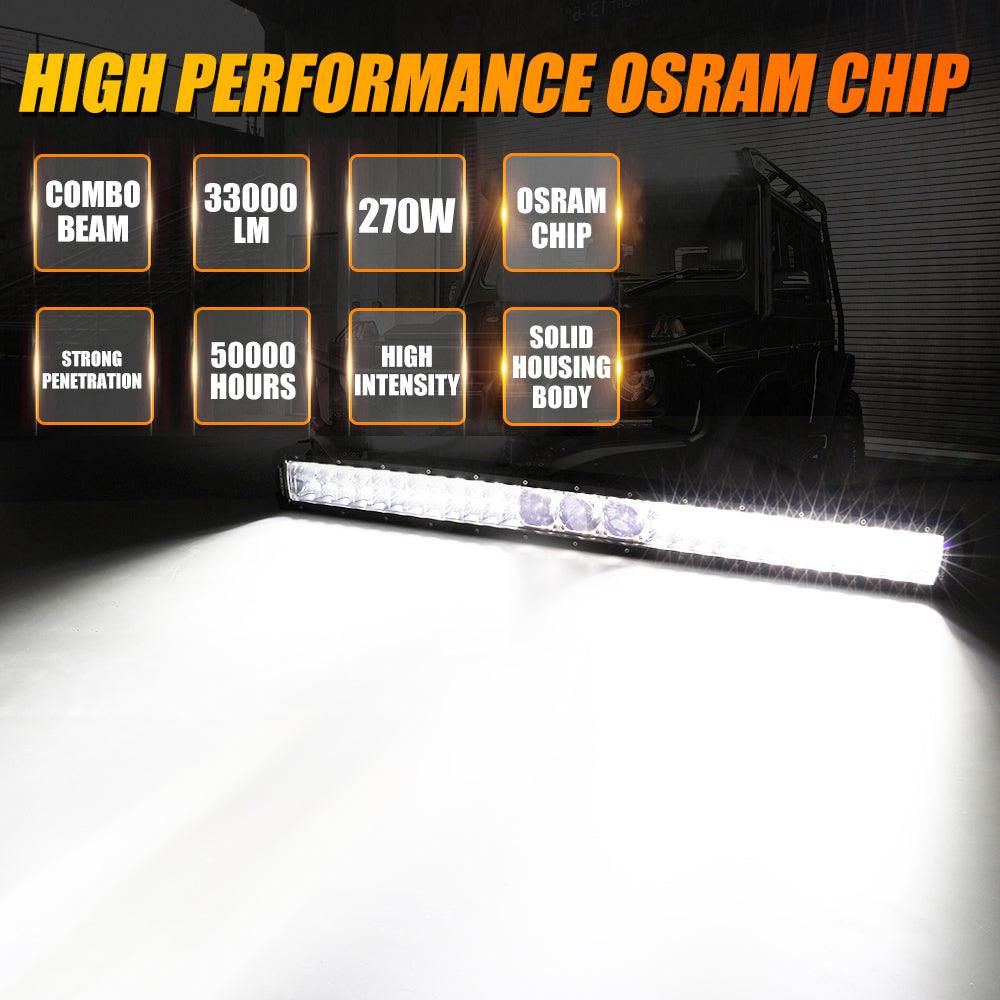

- Newest upgraded Design. High-intensity OSRAM P8+KW3 LED chips, central extra large projector, spot beam & flood reflector combo on both sides.
- The night vision light bar puts out an amazing amount of light and provides a high concentration of light beams that reach increased lighting coverage and longer distances for better visibility. Luminance improves 300%-400% compared with the ordinary light bar.
- Made of premium die-aluminum alloy material, the solid housing body effectively prevents the light bar from breaking when driving at high speeds.
- All-weather, IP68 waterproof, can withstand any harsh environment. High-efficiency cooling system for maximum component longevity.

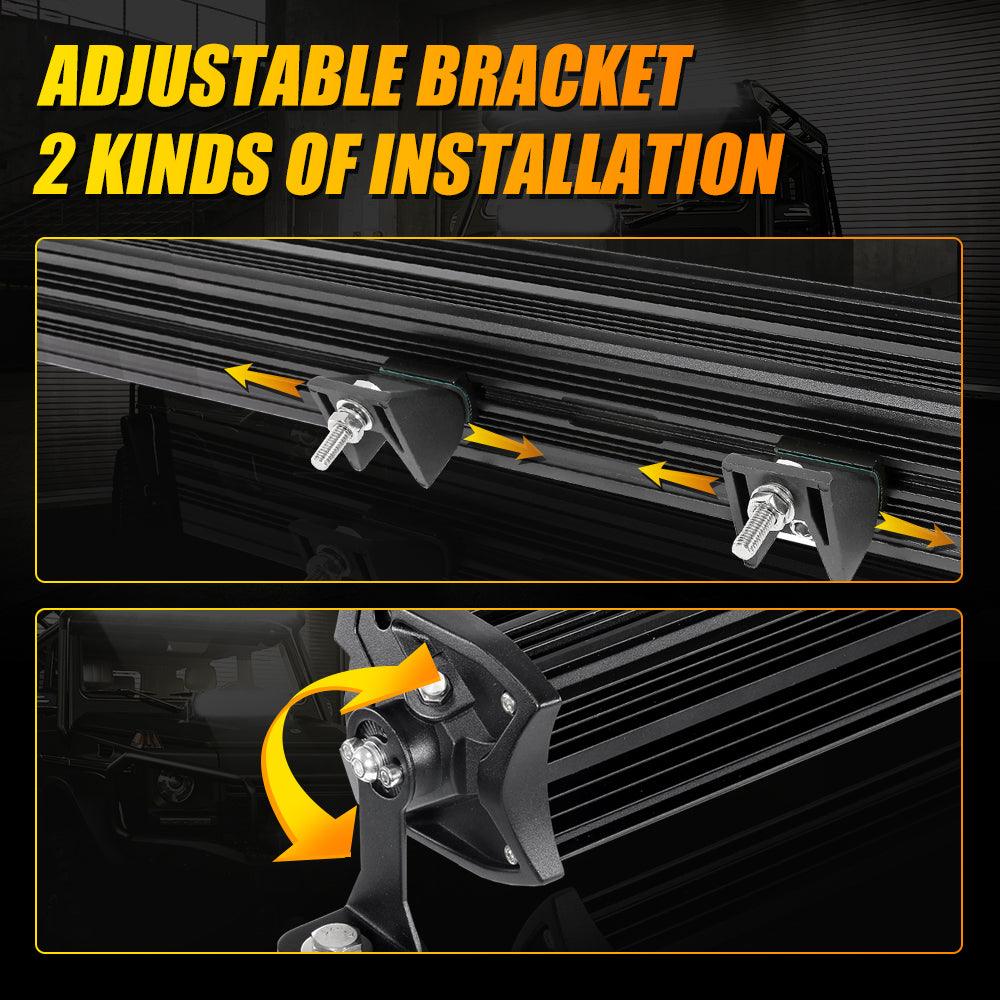

- 2 kinds of bracket installation, the light bar can be adjusted at any time according to the environment.

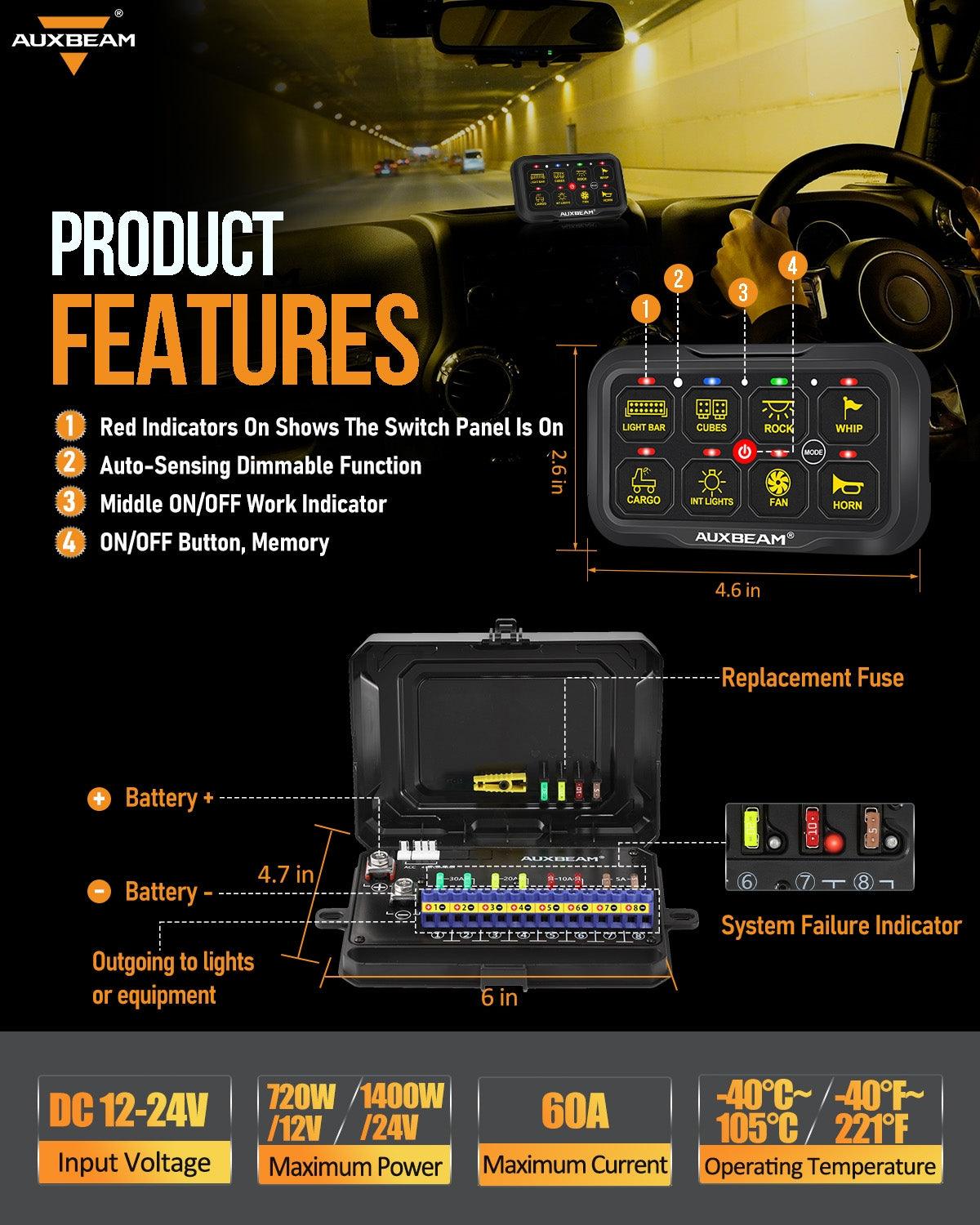

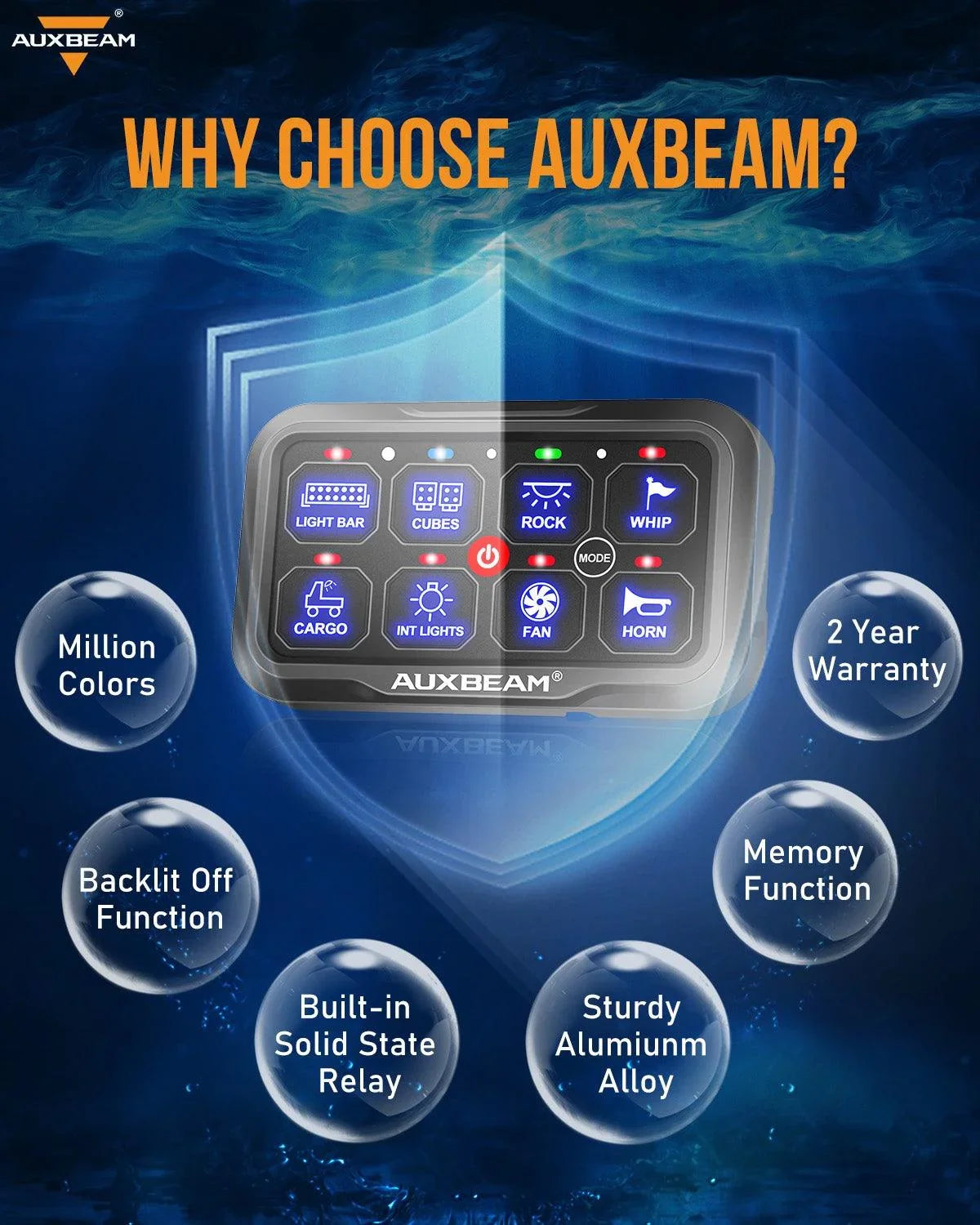

▶AR-800 RGB Switch Panel

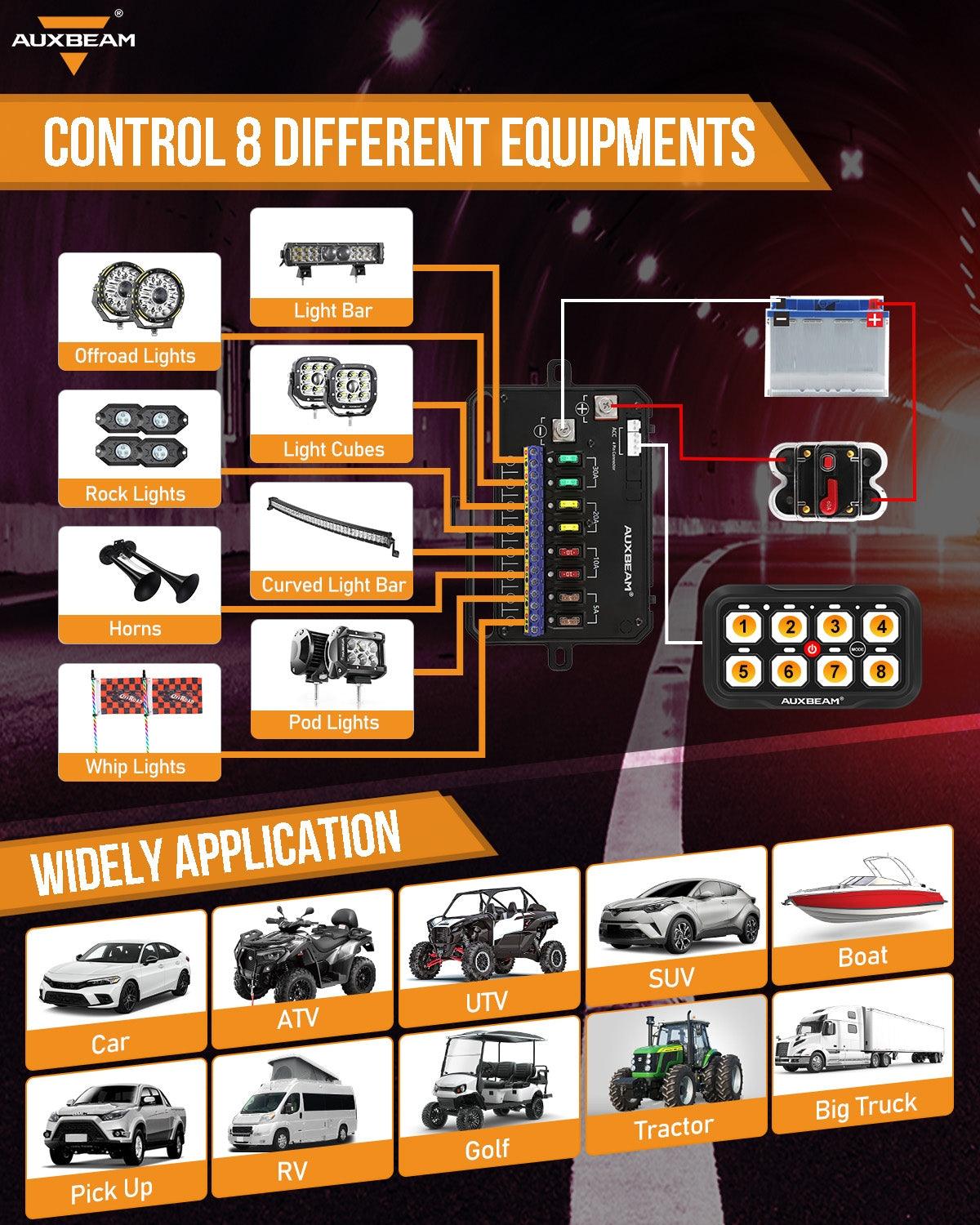

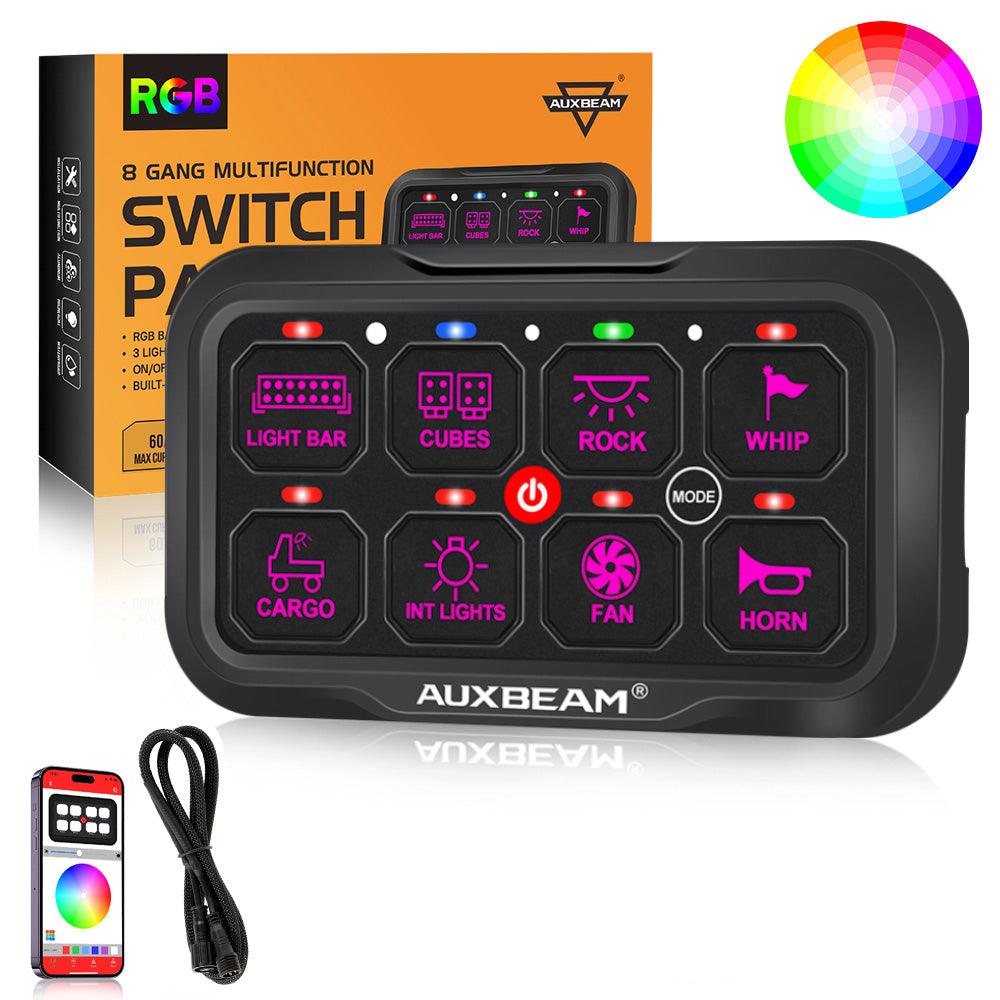

- 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
- 2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
- 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● RED-Toggle, Constant light mode (Great for things like fog lights or driving.
● BLUE-Momentary, Press & hold the button to turn on, then release the button o turn off, just like pressing the horn button.
● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.

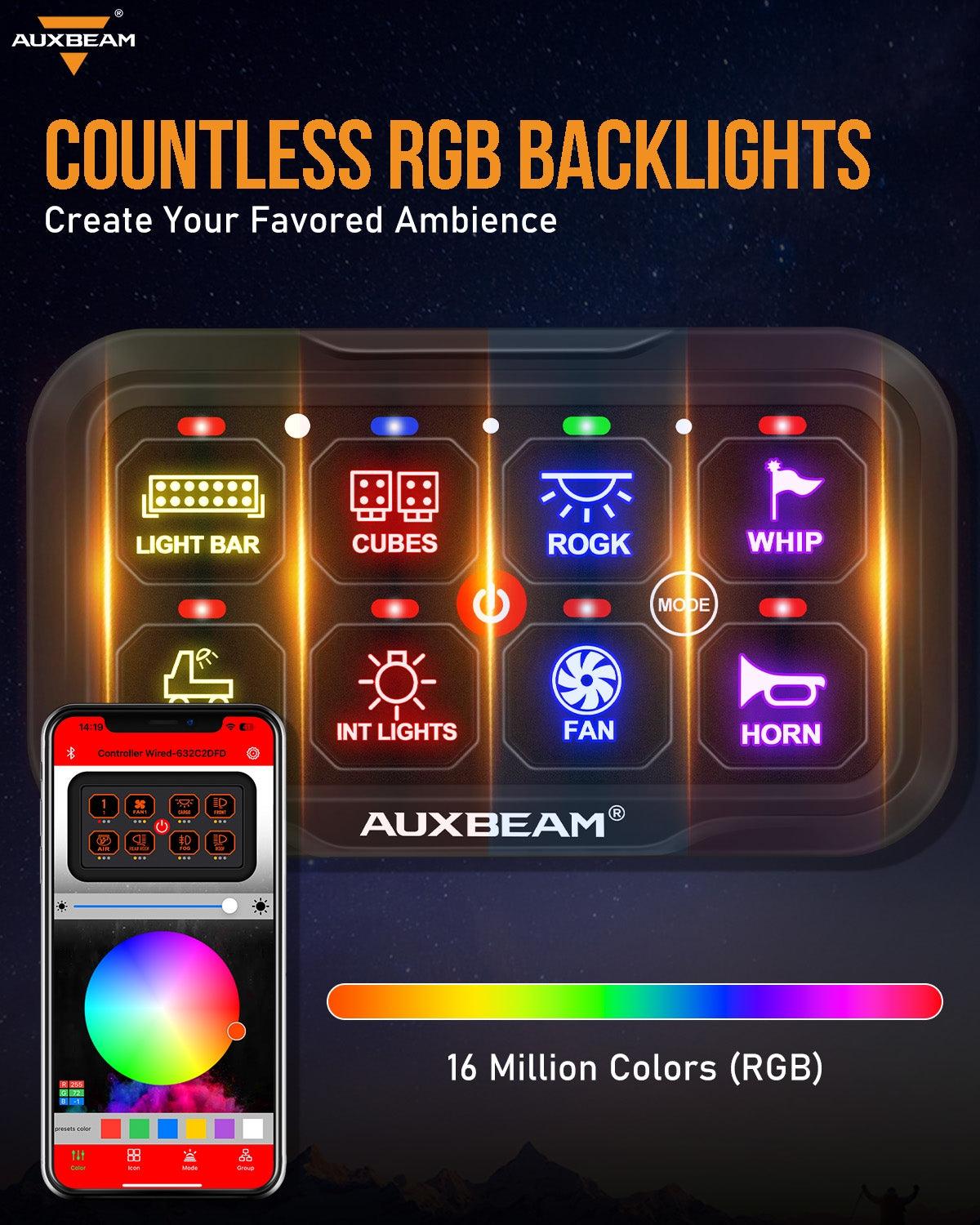

- RGB backlight color. Adjust backlight color and brightness to match your vehicle.
- Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
- Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
- DIY button icon on APP. 200 default icons or use your own photos from the phone album.
- Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
- Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
- Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
▶47 Inch Extension Cable
- There is a 4-pin aviation video cable, a cable for transmitting video and power.
- It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid, and connected with vehicle monitoring CCTV system.
- Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.
- Power input DC 12V - DC 24V.
- Specially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.
Bluetooth Connection Requirements:
- Compatible with IOS & Android devices
- IOS 9.0 or newer version, Android 4.5 newer version
- Download the “Switch panel” app from Apple store or Google Play Store (free download). Scan QR code on the instructions.
- If your Android device can not connect to the APP, please turn on GPS positioning and allow “Switch Panel” to access your phone’s location while using the APP.

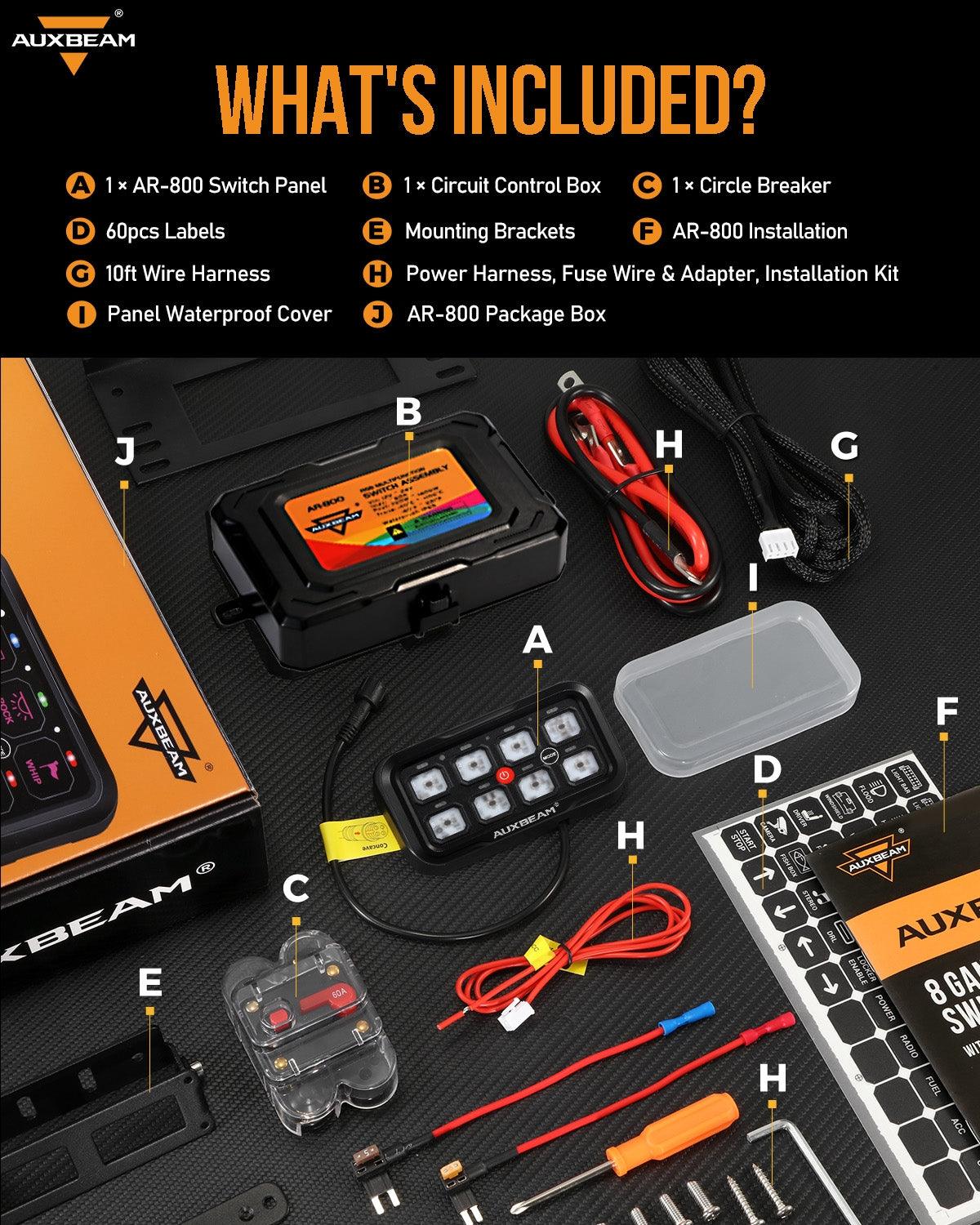

Package Included:
8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)*1Installation Instructions*1
47Inch Extension Cable*1
LED Light Bar*1

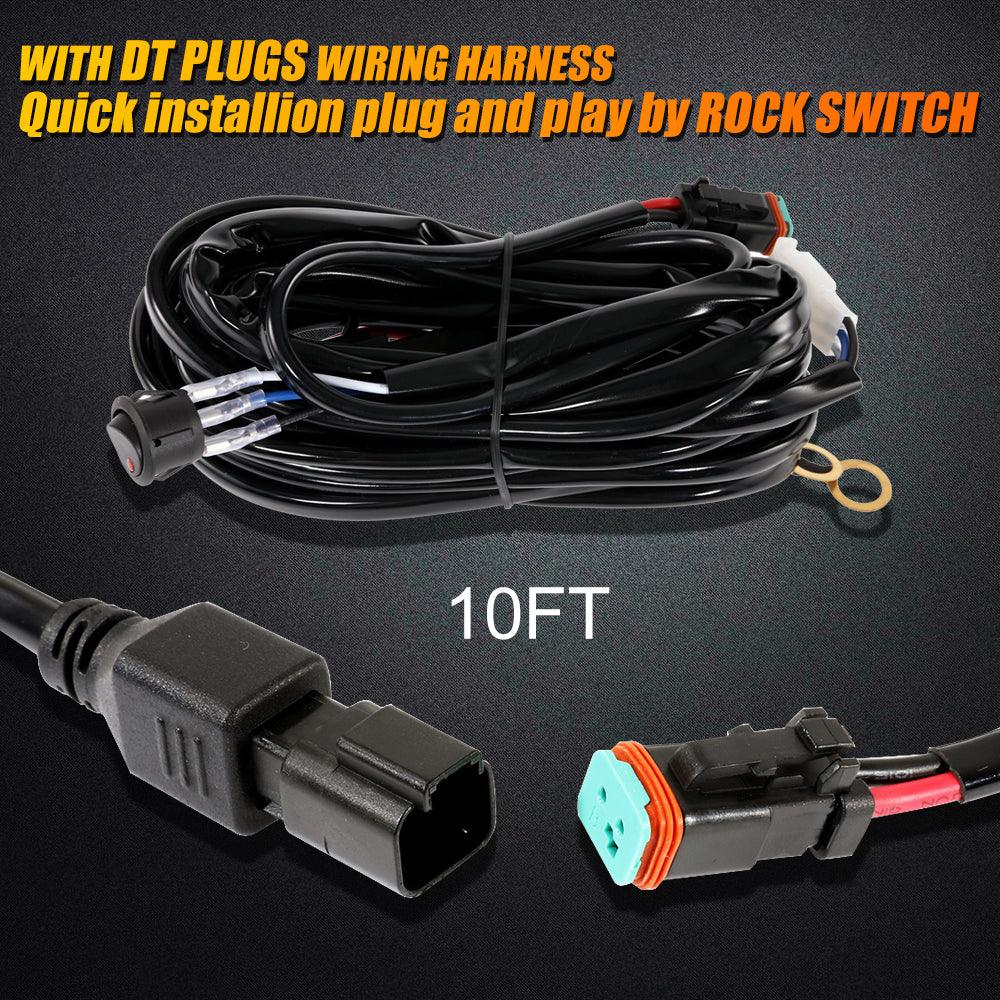

DT Wiring Harness*1
DT Wiring Harness*1
Guideline for connecting the red cables:
The red cable connects the master switch power cable to the ACC. If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
-
How to install RGB switch panel:
Ram Rebel: https://www.youtube.com/watch?v=LkSpkL720sw&
Lexus GX460: https://www.youtube.com/watch?v=uWCPvghKrXs
