BUMP STOP ASSEMBLY – 2018-2022 CAN AM

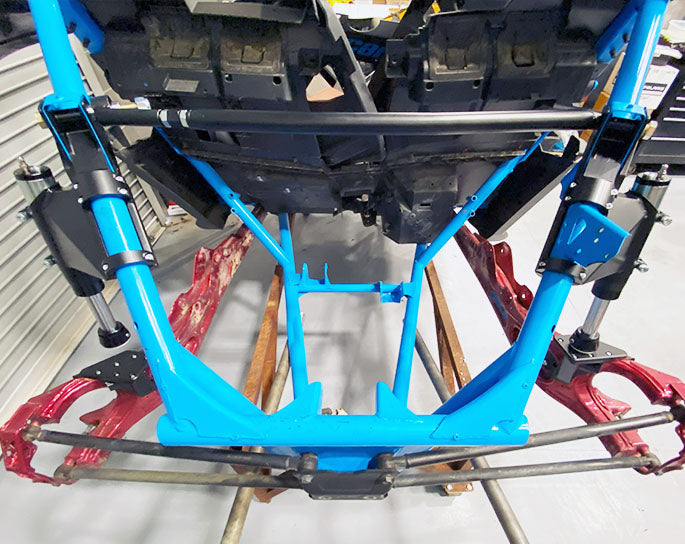

After almost 3 years of R&D the new Bump Stop Kit from SANDCRAFT MOTORSPORTS is finally here! This kit has been designed to eliminate the harsh bottom out that is so common on the Maverick X3. This is a BOLT ON kit that installs easily and includes (2) 2.0 x 4” stroke pinch can style bump stops. This Kit is critical for any heavier 4 seat cars to eliminate the frame bottom out on the whoops or G-outs.  Not only does this kit include the bump stops, we’ve also included and adjustable rear cross brace to hold everything together and drastically improve chassis stiffness during bump.

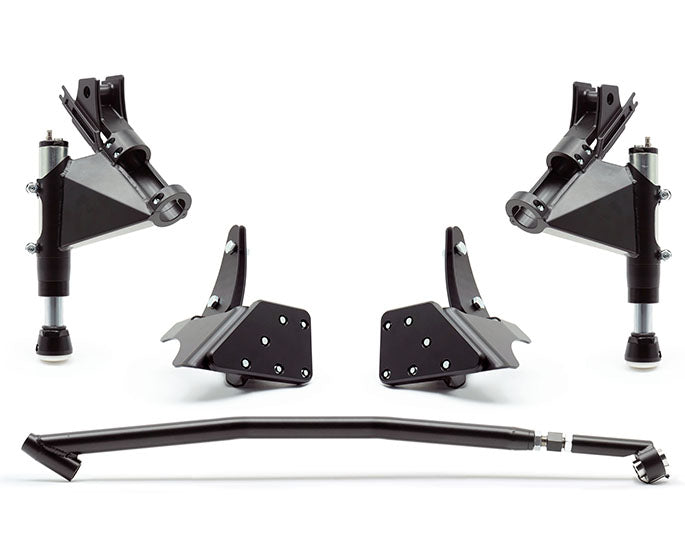

KIT INCLUDES:

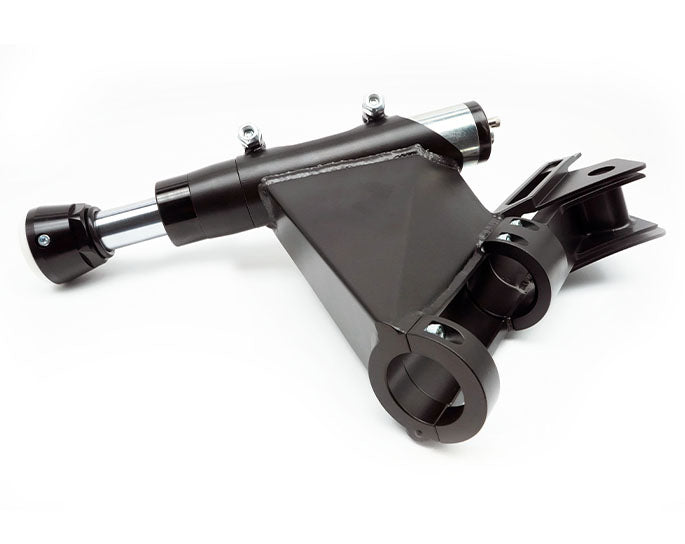

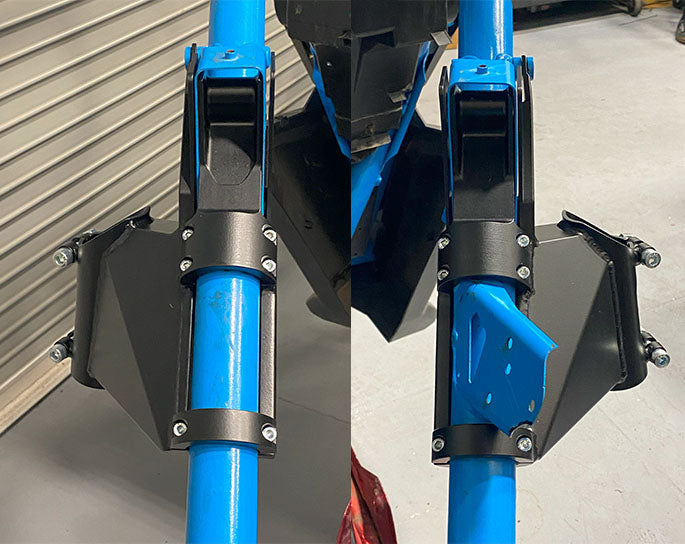

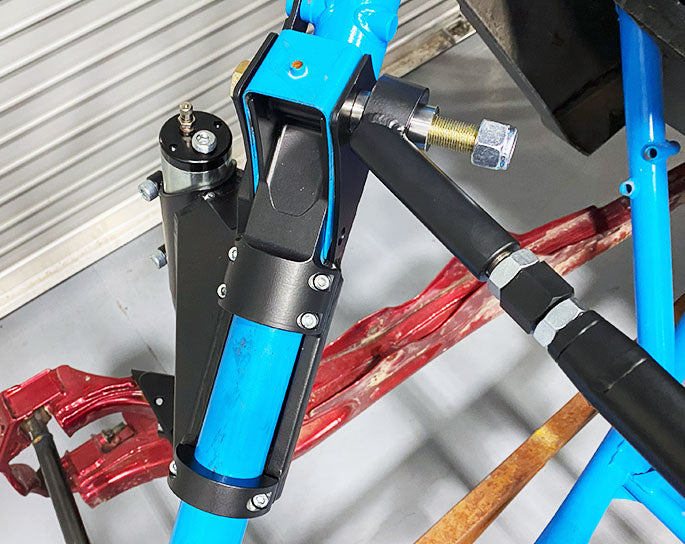

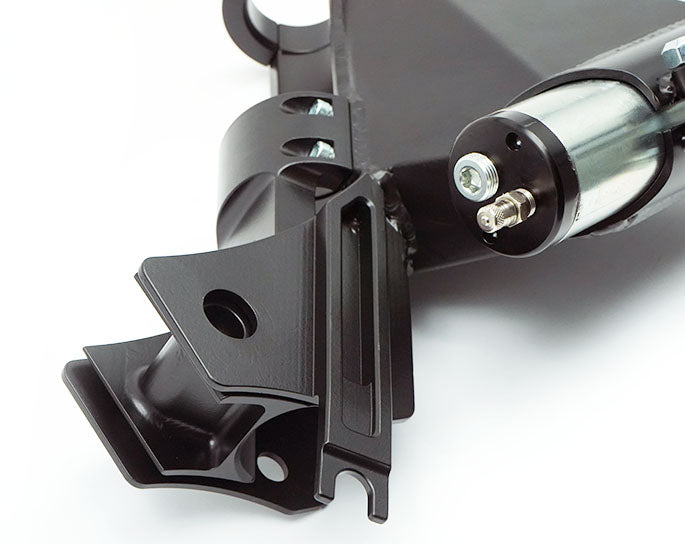

(2) Complete upper bump stop housing

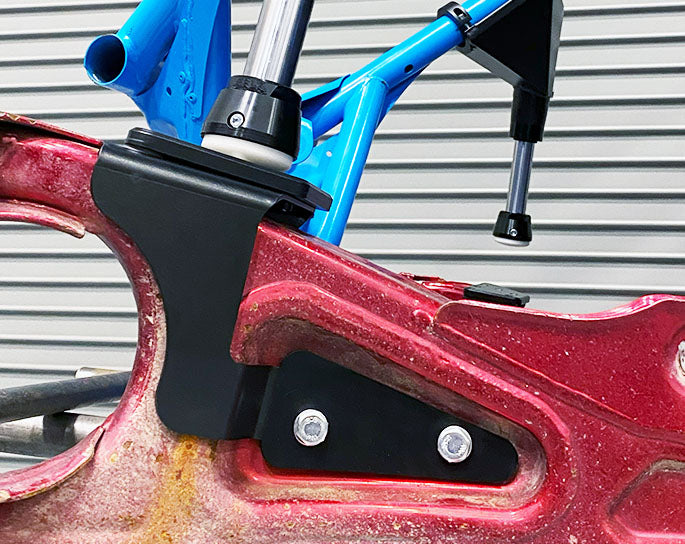

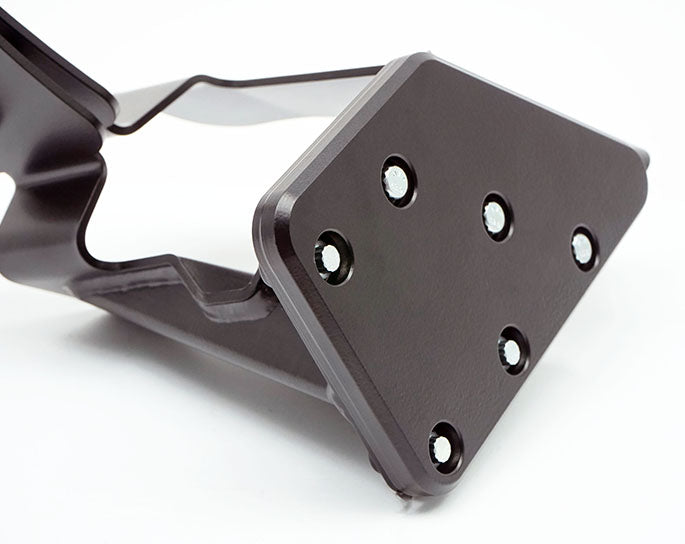

(2) Complete lower strike plate fixture with strike pad

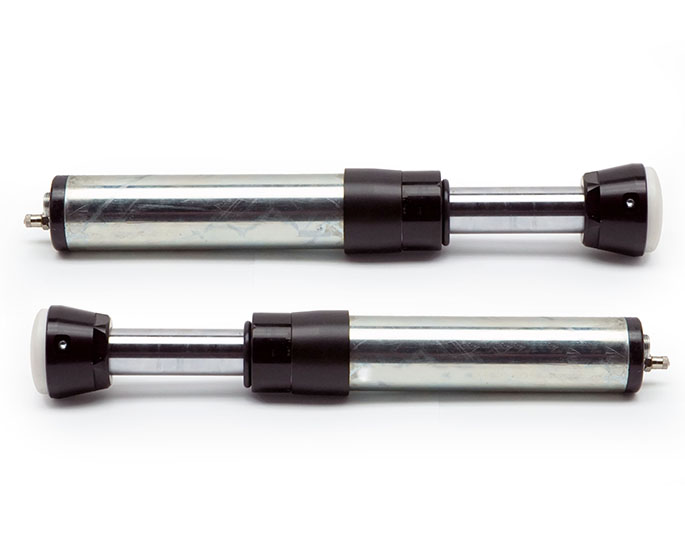

(2) Nitrogen 2.0 x 4” bump stop

Rear cross brace

Includes all mounting and assembly hardware

US PATENT NO: 11,441,638 B2

NOTE: This product is intended to work with the OE suspension only. Correct fitment with aftermarket suspension components is not guaranteed. Charge the bump stops to 120PSI for the 2 seater and 150PSI for the Max. These are our suggestions, pressure is adjustable to fit your personal driving style.
