Ford Ranger (2019+) - 20" LED Bumper Light Bar
Ford Ranger (2019+) - 20" LED Bumper Light Bar
Ford Ranger (2019+) - 20" LED Bumper Light Bar

Heretic Studio

Ford Ranger (2019+) - 20" LED Bumper Light Bar

$539.99 USD
Lens Style:

Lens Style
Beam Pattern:

Beam Pattern
Quantity:

Overview

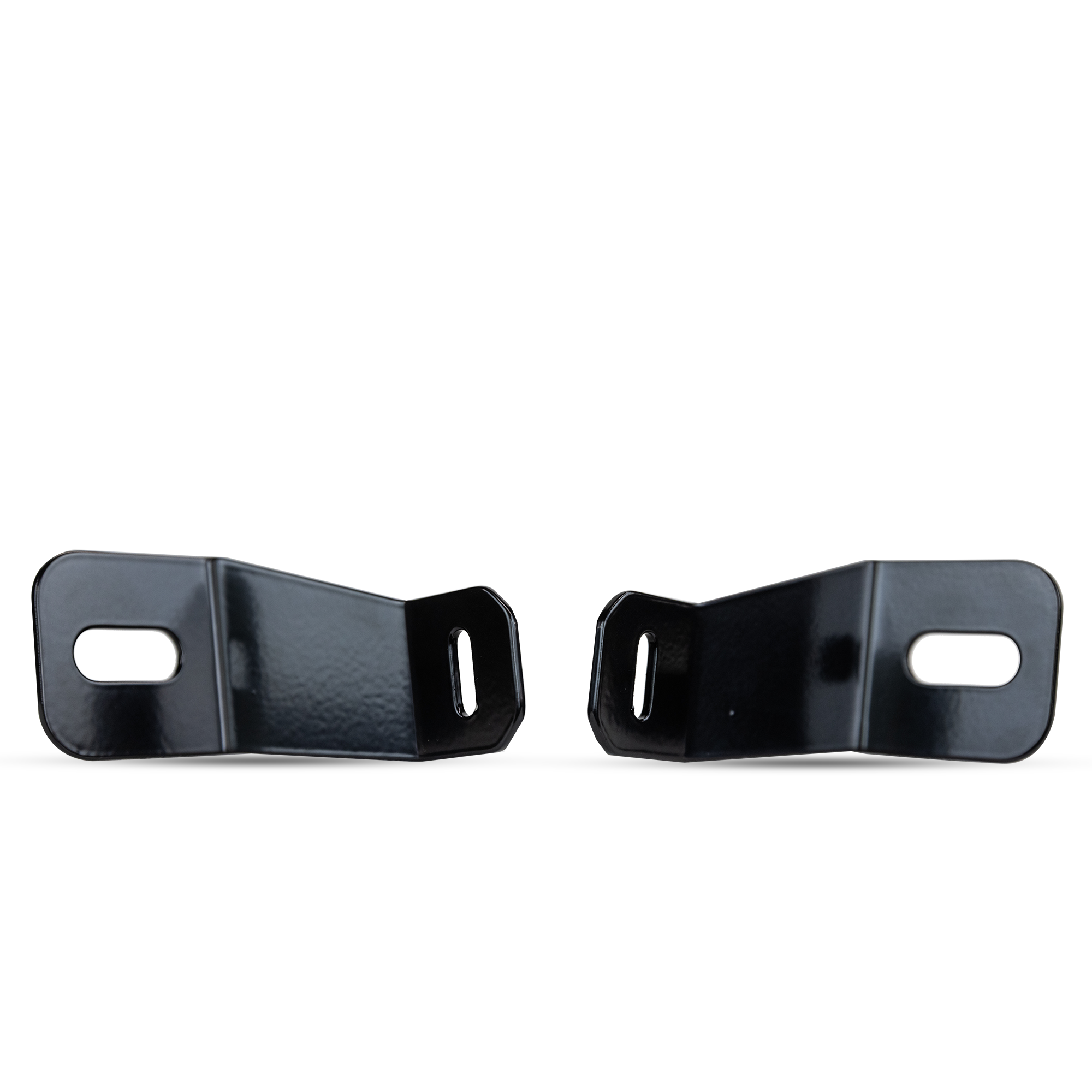

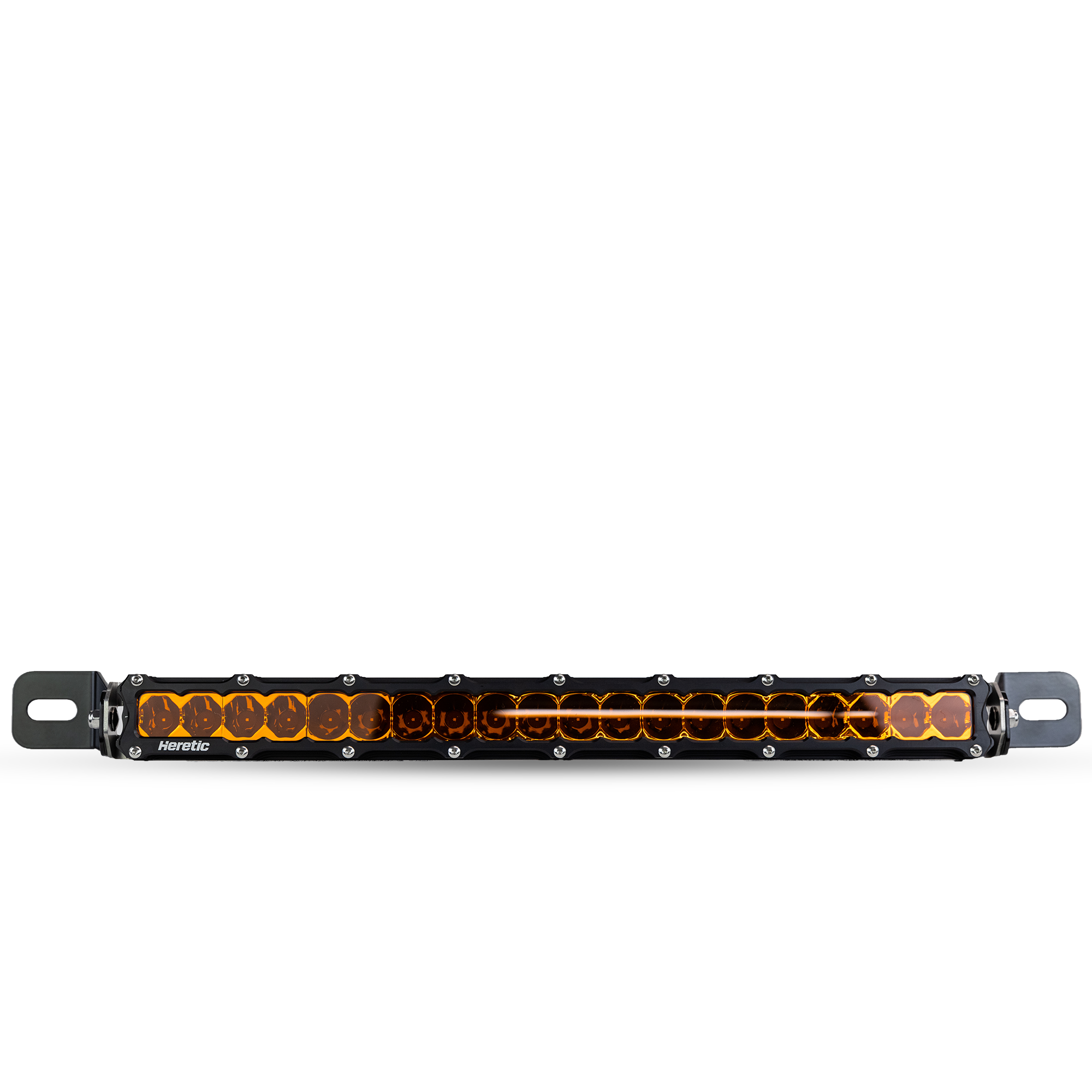

The Heretic 20" LED light bar is one of the most rugged and reliable lights on the market. These high performance 6-series LED light bars are designed and assembled in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. With the bracket this becomes a 22" LED light bar.

Features

  • USA Patented 6061 CNC Aluminum Grade Billet Housing
  • (40) 6-watt CREE LED
  • IP68 rated Stainless Steel Mounts
  • Designed, Assembled, Supported, and Shipped in Centerville, Utah
  • Customize Your Beam Pattern: Combo, Spot, or Flood

Vehicle Trim Compatibility

Ford Ranger ('19+)

Details/Specs

Shipping Weight: 5lbs
Type: 20” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Amber
Wattage: 120W
Amp Draw at 13.8V: 11.3A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 21” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 22” x D 1.5” x H “2.4
Lumens: 14520 lm
Lux At 10m:
  • Spot: 4125 lx
  • Flood: 878 lx
  • Combo: 2826 lx
Candela:
  • Spot: 412500 cd
  • Flood: 87750 cd
  • Combo: 282600 cd
Beam Distance:
  • Spot: 1285 m
  • Flood: 592 m
  • Combo: 1063 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No
