Ford F150 Raptor (2017-2021) - Behind The Grille 30" LED Light Bar - Clear Lens
Ford F150 Raptor (2017-2021) - Behind The Grille 30" LED Light Bar - Clear Lens

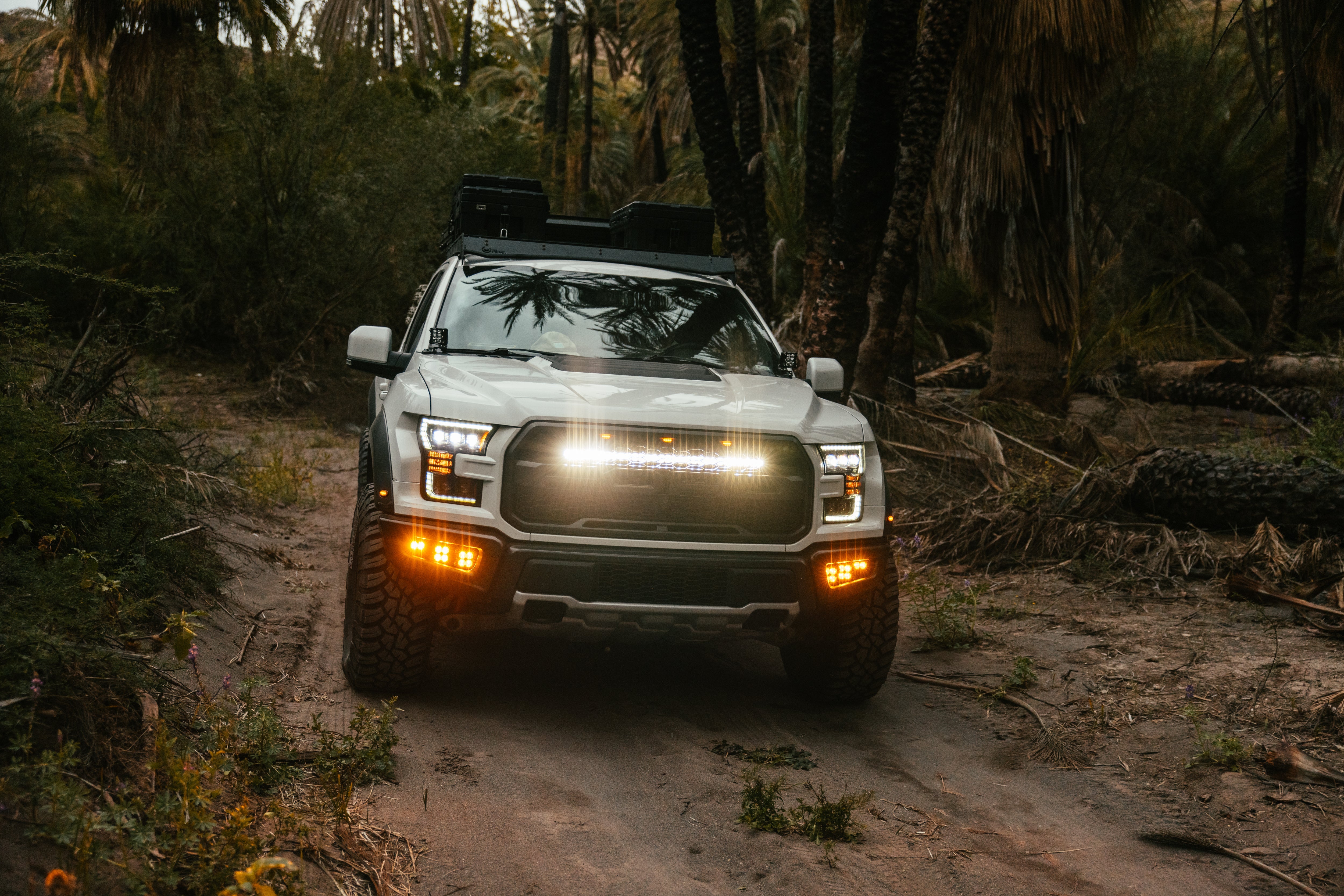

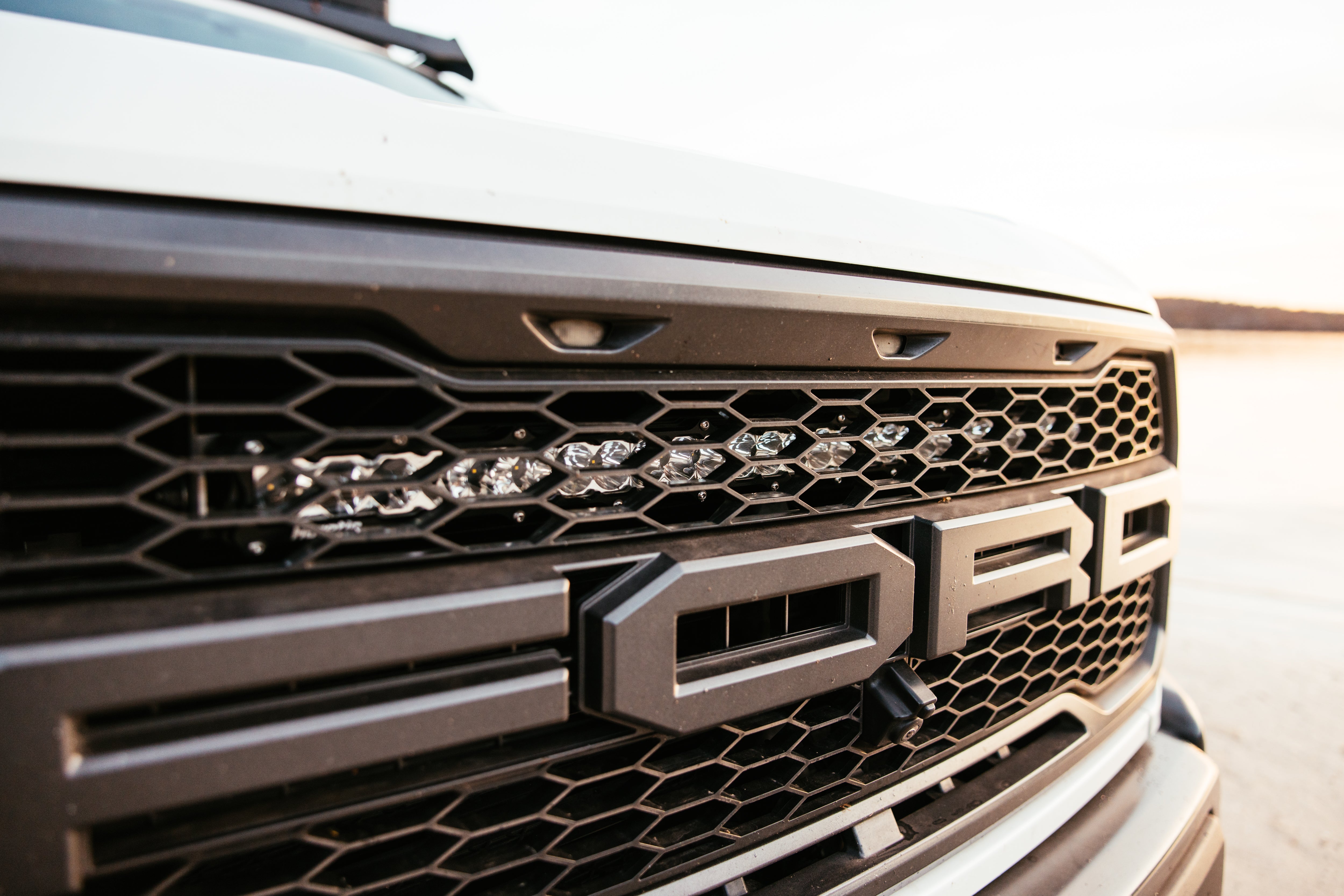

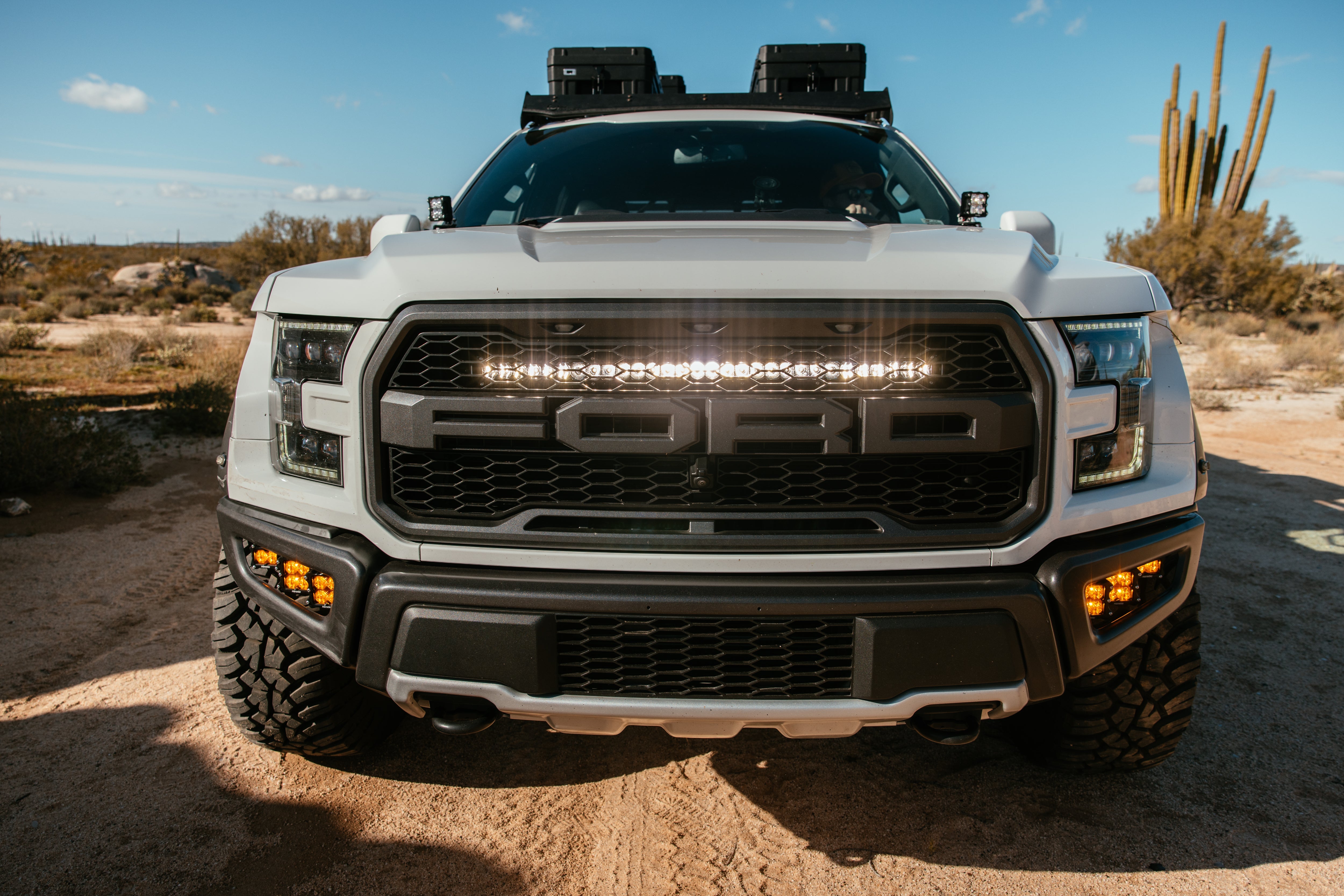

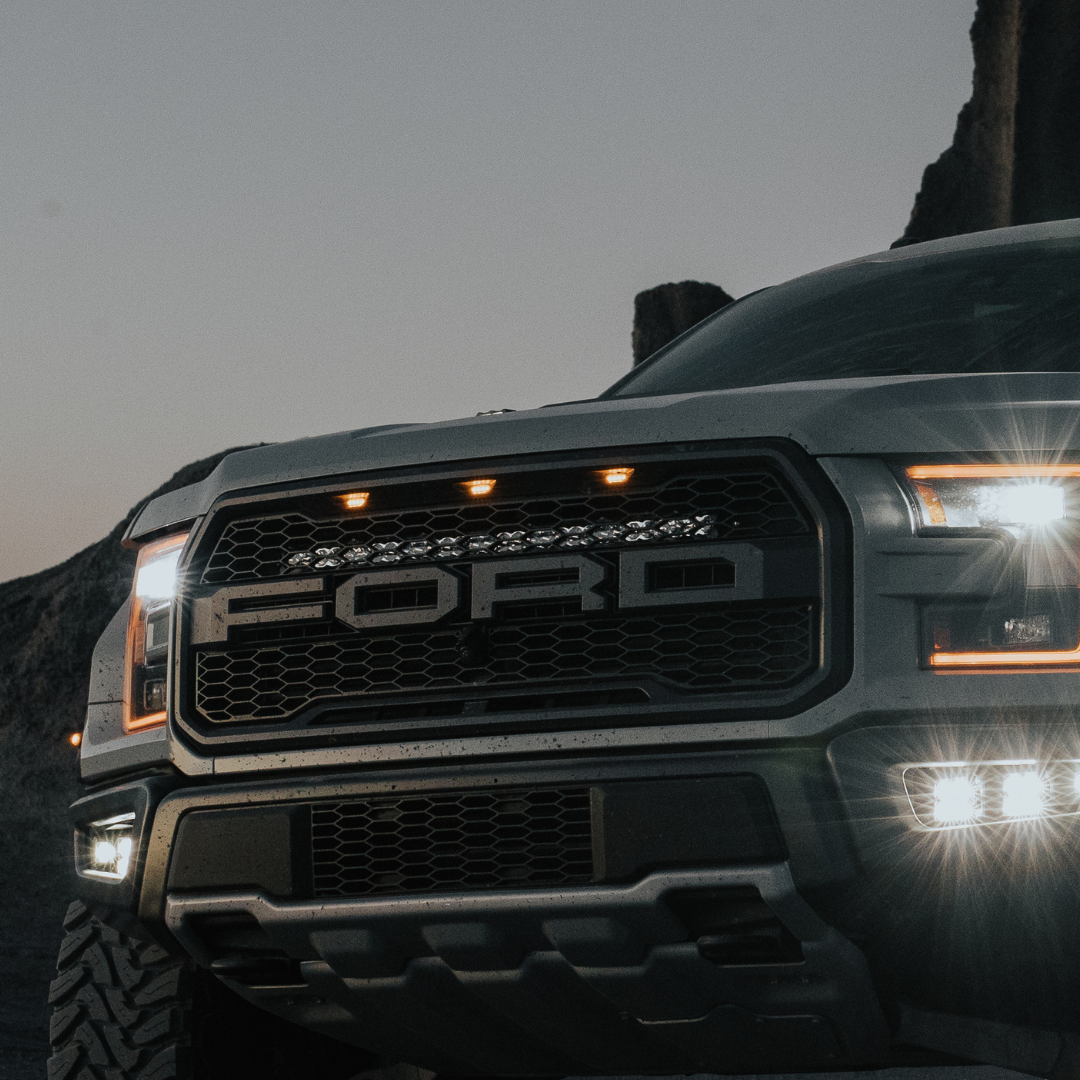

30 inch behind the grill led light bar on a ford raptor
Ford F150 Raptor (2017-2021) - Behind The Grille 30" LED Light Bar - Clear Lens
Ford F150 Raptor (2017-2021) - Behind The Grille 30" LED Light Bar - Clear Lens
Ford F150 Raptor (2017-2021) - Behind The Grille 30" LED Light Bar - Clear Lens

Heretic Studio

Ford F150 Raptor (2017-2021) - Behind The Grille 30" LED Light Bar - Clear Lens

Sale price$874.99 USD
Add Wiring Harness (+$39.99):

Add Wiring Harness (+$39.99)

Beam Pattern:

Beam Pattern

Quantity:

Overview

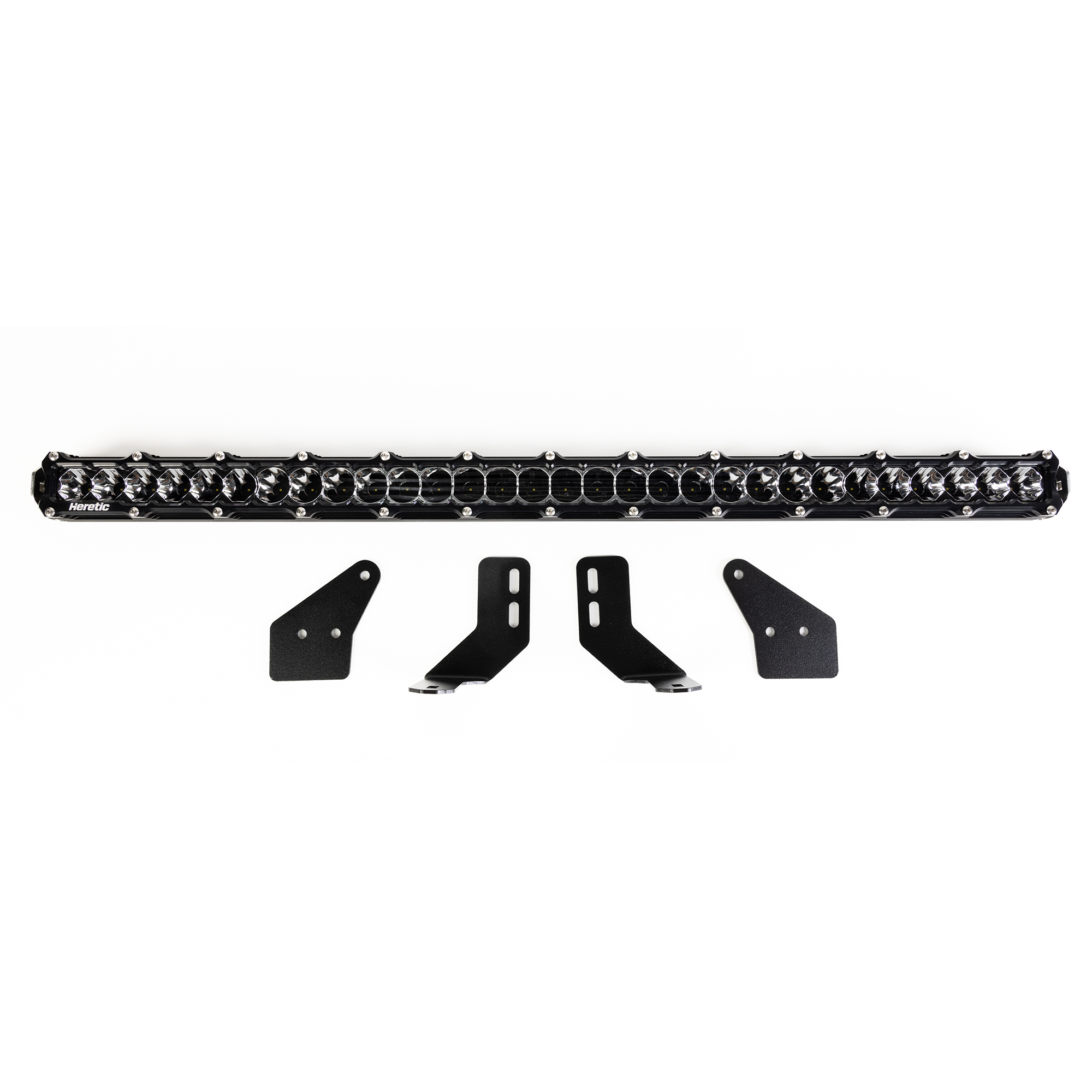

The Heretic Behind The Grille 30" LED light bar - Clear Lens is the best option for your Ford F150 Raptor's grille. This high performance 6-series amber LED light bar is  designed and assembled in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. This light bar is optimal for use under clear night conditions. With brackets included this becomes a 32" Behind the Grille LED Light Bar.

Features

  • USA Patented 6061 CNC Aluminum Grade Billet Housing
  • (30) 6-watt CREE LED
  • IP68 rated Stainless Steel Mounts
  • Designed, Assembled, Supported, and Shipped in Centerville,Utah
  • Customize Your Beam Pattern: Combo, Spot, or Flood
  • Customize Your Bezel - Contact Heretic Studio

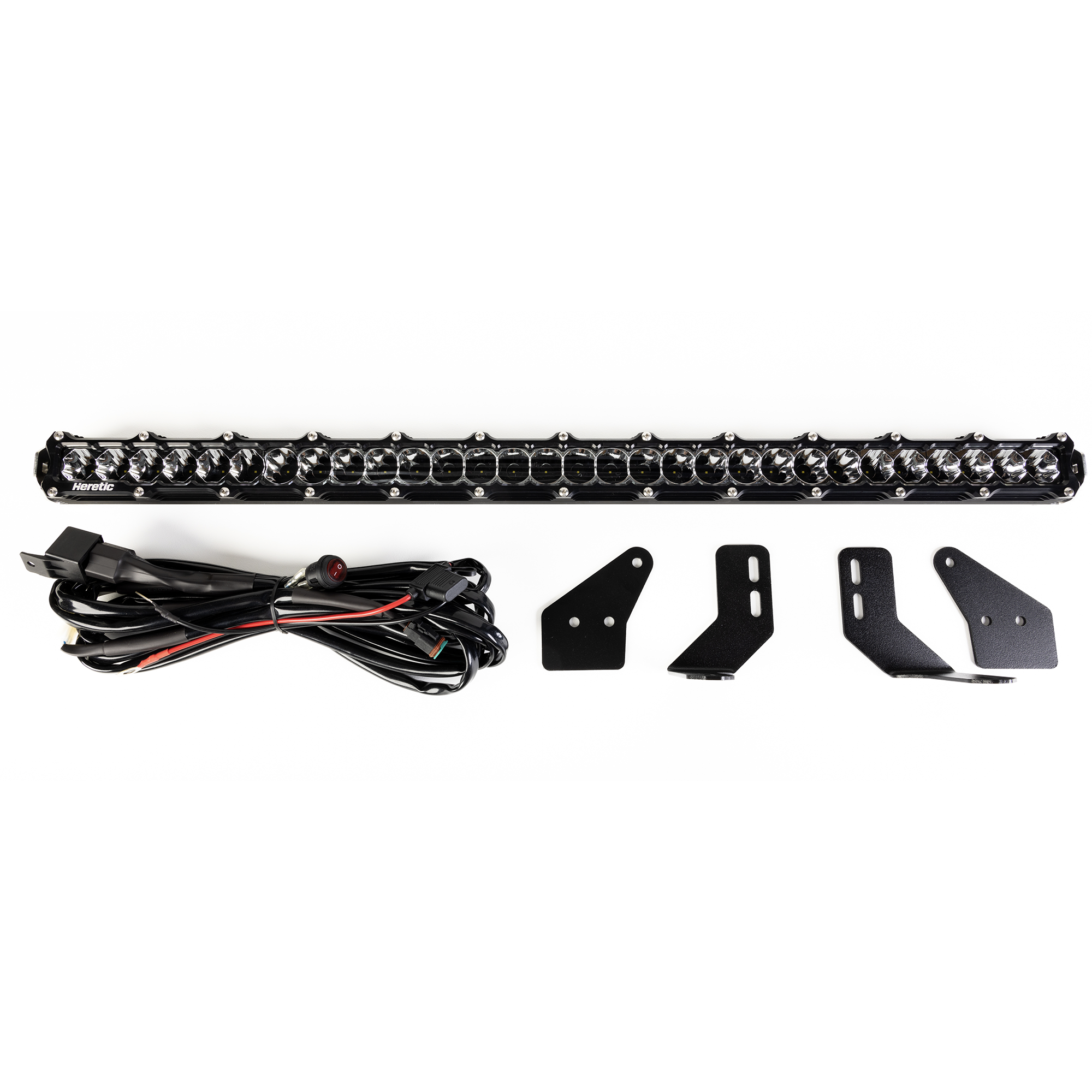

  • Wire Harness And Brackets Included In Kit

Vehicle Trim Compatibility

Ford F-150 Raptor (2017-2021)

Specifications

Details/Specs

Shipping Weight: 5lbs
Type: 30” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 180W
Amp Draw at 13.8V: 17.9A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 31” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
Lumens: 21780 lm
Lux At 10m:

  • Spot: 6188 lx
  • Flood: 1316 lx
  • Combo: 4239 lx

Candela:

  • Spot: 618750 cd
  • Flood: 131625 cd
  • Combo: 423900 cd

Beam Distance:

  • Spot: 1573 m
  • Flood: 726 m
  • Combo: 1302 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No
