RA80 XL RGB 8 Gang Switch Panel for UTV ATV Side by Sides, Toggle/ Momentary/ Pulsed Modes, Off Road Lights Controller

$249.99 USD
Quantity:

RA80 XL SERIES RGB switch panel is now available!

There are cases where a larger size might be an advantage and Auxbeam’s RA80 XL is the answer for those situations.

We provide a better operating experience for you to control the lights & device! With 5" larger panel & 1" buttons, the RA80 XL switch panel could be easier to use when moving in rough environments.

It’s not limited to controlling the “ON/OFF” of the LED Lights or electrical devices. Enjoy RGB backlighting and change lighting modes to have fun programming!

Upgraded Functions:

✔ XL size - 5 Inch panel & 1 Inch button, larger than the common model
✔ RGB backlight - Unlimited color options match dash lighting and vehicle
✔ 3 mode setting - Toggle/ Momentary/ Pulsed
✔ DIY switch panel - Use the provided 60pcs switch labels to indicate what’s connected to that switch.
✔ 10FT wiring harness - Extend from 9FT to 10FT

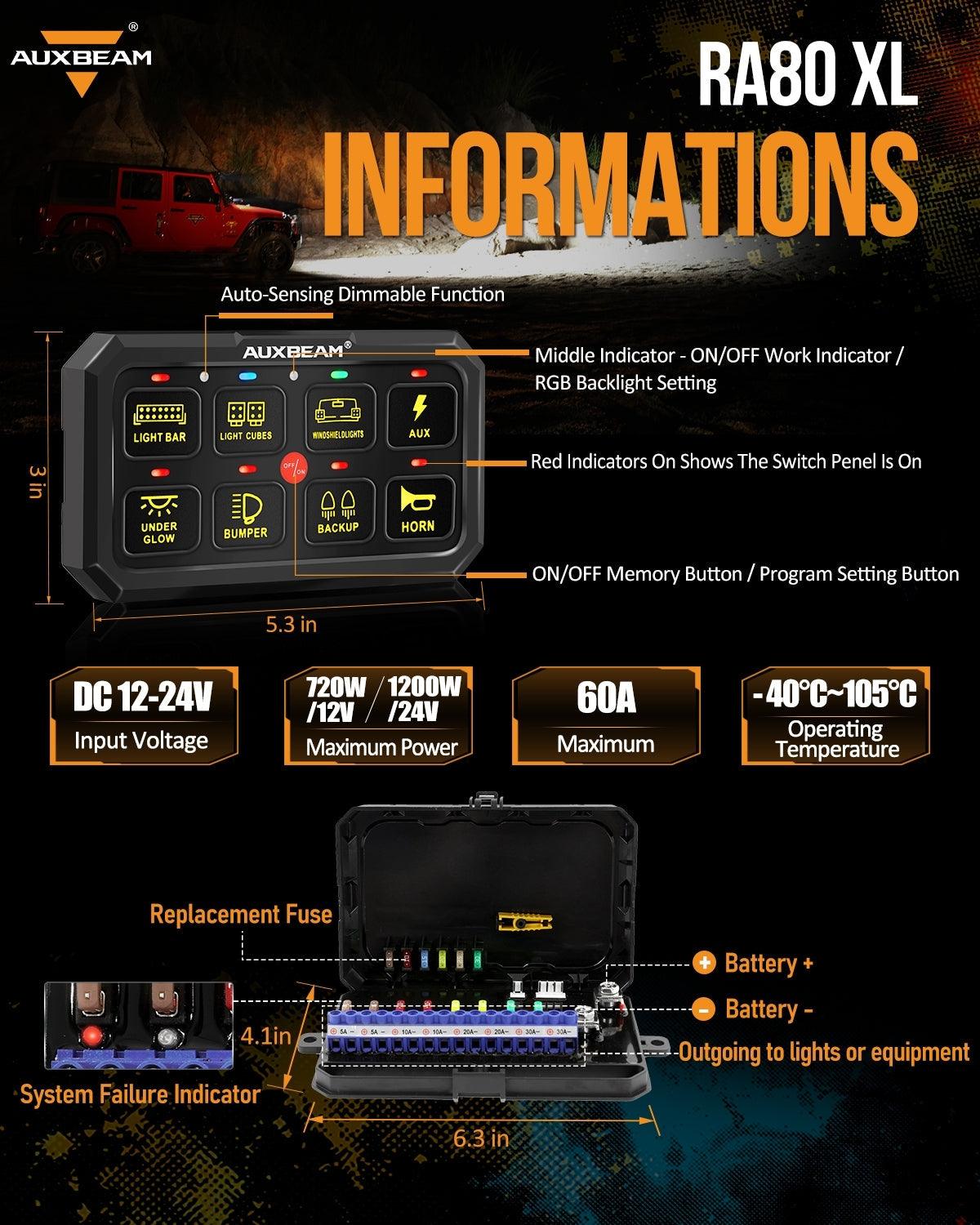

Specification:

Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1200W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65

Features:

  • 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices just from one convenient place at the same time. Meet all your electrical needs.
  • XL size. 5 Inch panel & 1 Inch button, larger than the common model. You can command all your vehicle accessories by the tap of your finger in a more easy and comfortable way.

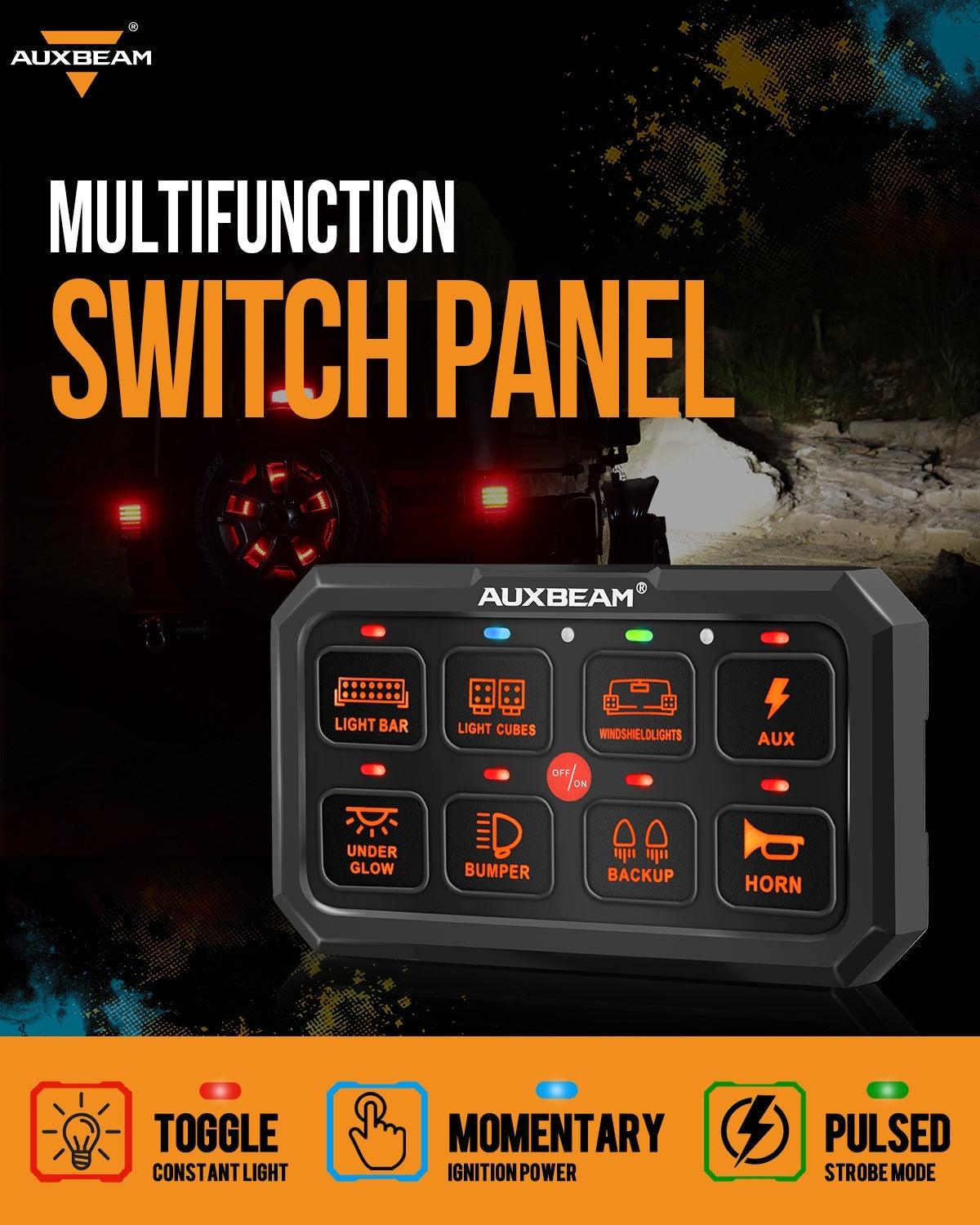

  • 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● RED-Toggle, Constant light mode. (Great for things like fog lights or driving. )
● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.

● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.

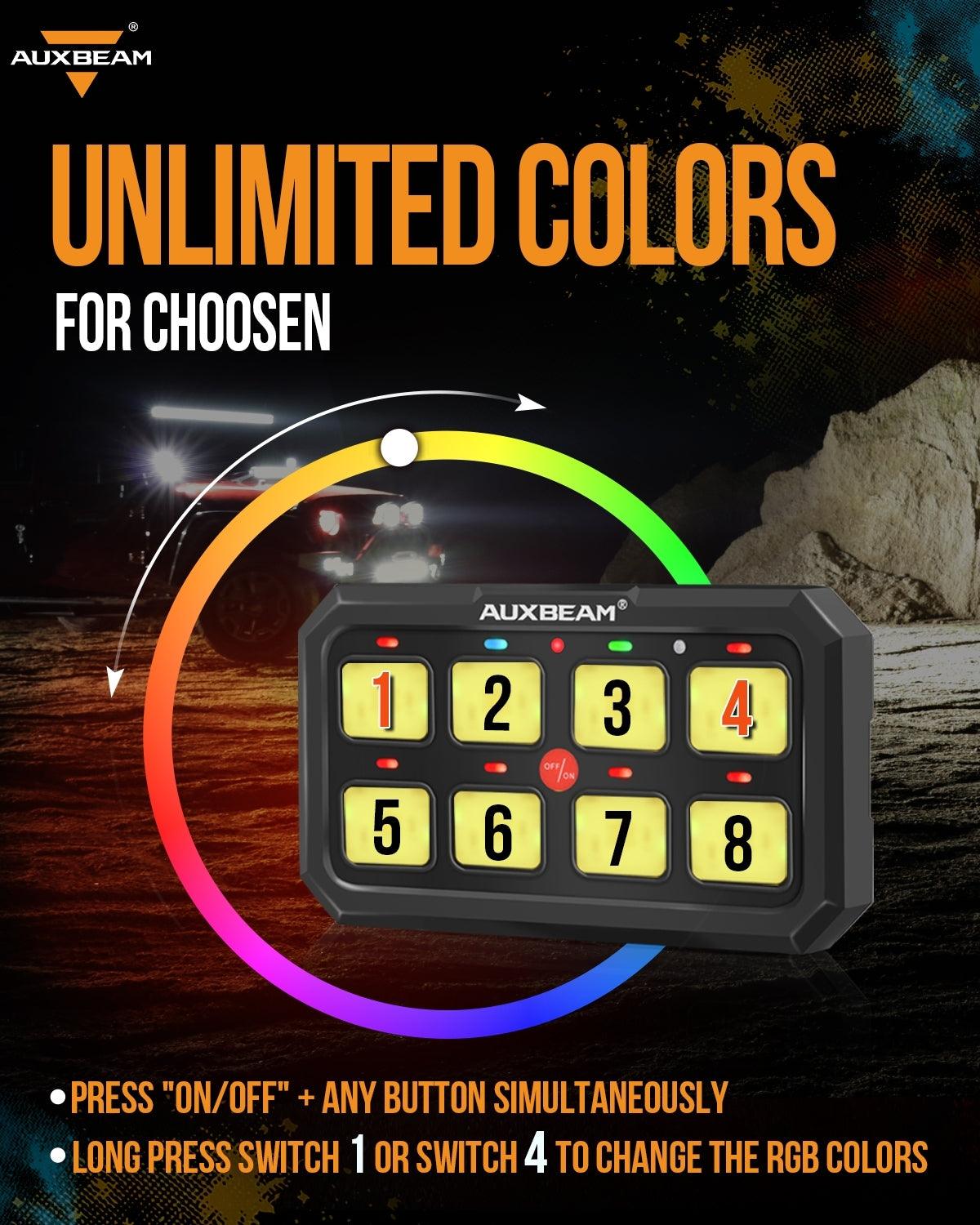

  • RGB backlight color. Adjust backlight color and brightness to match your vehicle.
  • Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
  • Customize your own switch panel with 60 universal stickers.
  • Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
  • Waterproof IP65, high sensitivity, stability and strong anti-interference ability
  • Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
  • With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

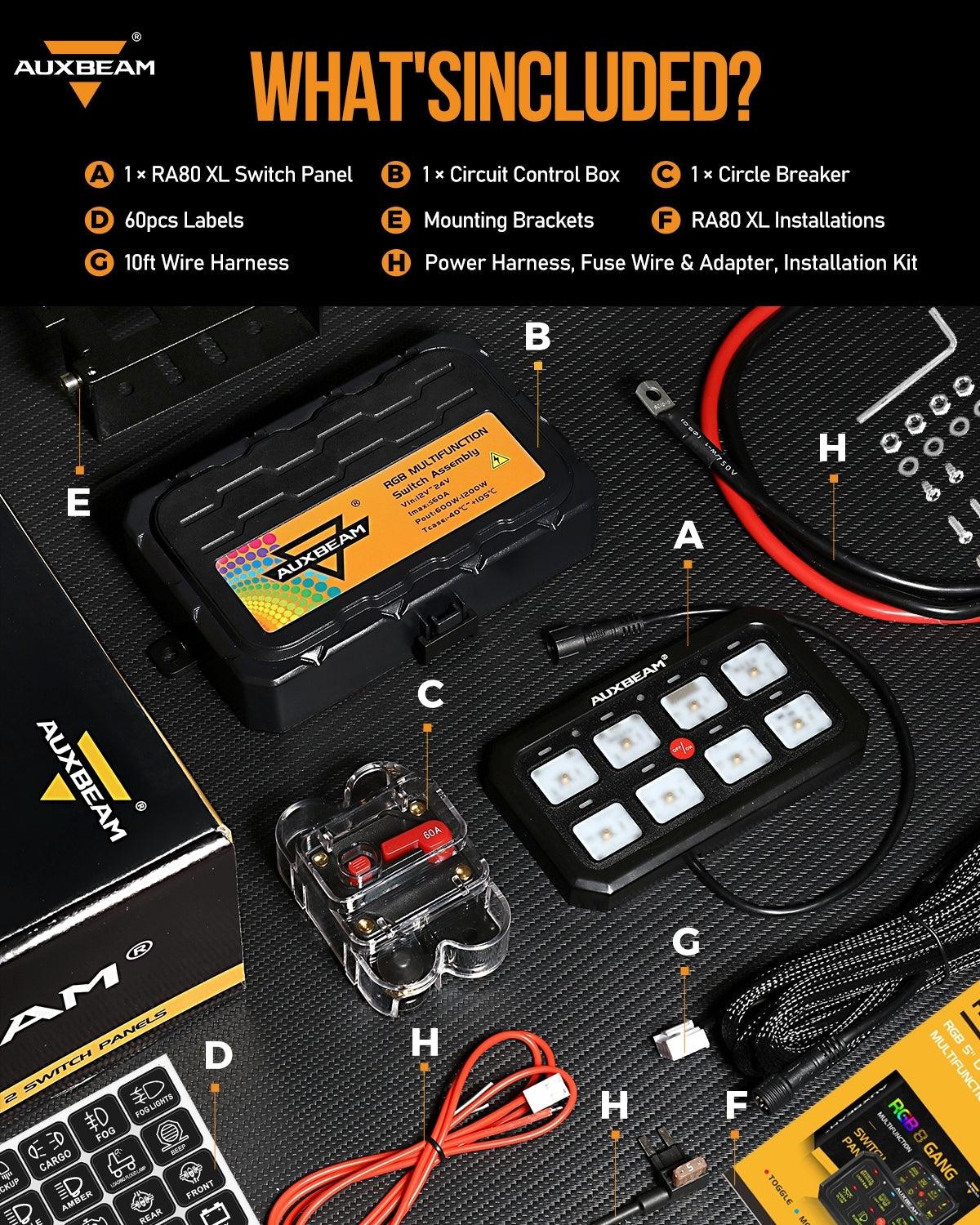

Package Included:

  • 1 Set of RA80 XL Switch Panel (all necessary hardware and wiring harness is included)
  • Installation Instructions
