Looking for the cleanest way to simplify all your accessories? This is it! Simply run one power wire to the "brain", then run your accessories to it, and run one wire to the lighted face plate which can be mounted anywhere and you are done! Its that easy! Includes labels for just about everything you could think of so you can easily label which button goes to which accessory. If you need more than 8 accessories be sure to check out the 12 button system. SP9100 System:
- 125 User-selectable switch legends (not shown)
- Eight user-programmable switches
- Four 35A circuits and four 20A circuits
- Waterproof, Solid State 125A Power Module
- RGB Backlighting provides unlimited color options, using Color Picker on App
- Daisy Chain up to 3 Switch Panels to One Power Module to allow control of your 8 outputs from up to 3 locations on your vehicle
- Switches can be programmed for:
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Memory Function
- Master Mode, with ability to turn multiple outputs On AND Off with one touch
- Automatic Power-Up upon vehicle start up
- Two External trigger inputs can each activate up to four outputs (Active High or Active Low)
- Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns
- Sleep Mode for minimal power consumption
- Color Coded circuit wires
- LED Input Status Indicators for easy troubleshooting
- Time Delay Off function available for all circuits
- Splash proof switch panel with Polycarbonate overlay faceplate
- Program and control the system from switch panel pad or smart phone
- Bluetooth interface with FREE Apple or Android App
- Battery Voltage Readout on App screen
- No Fuses or Bulky Relay box
- Built-In Bluetooth Module

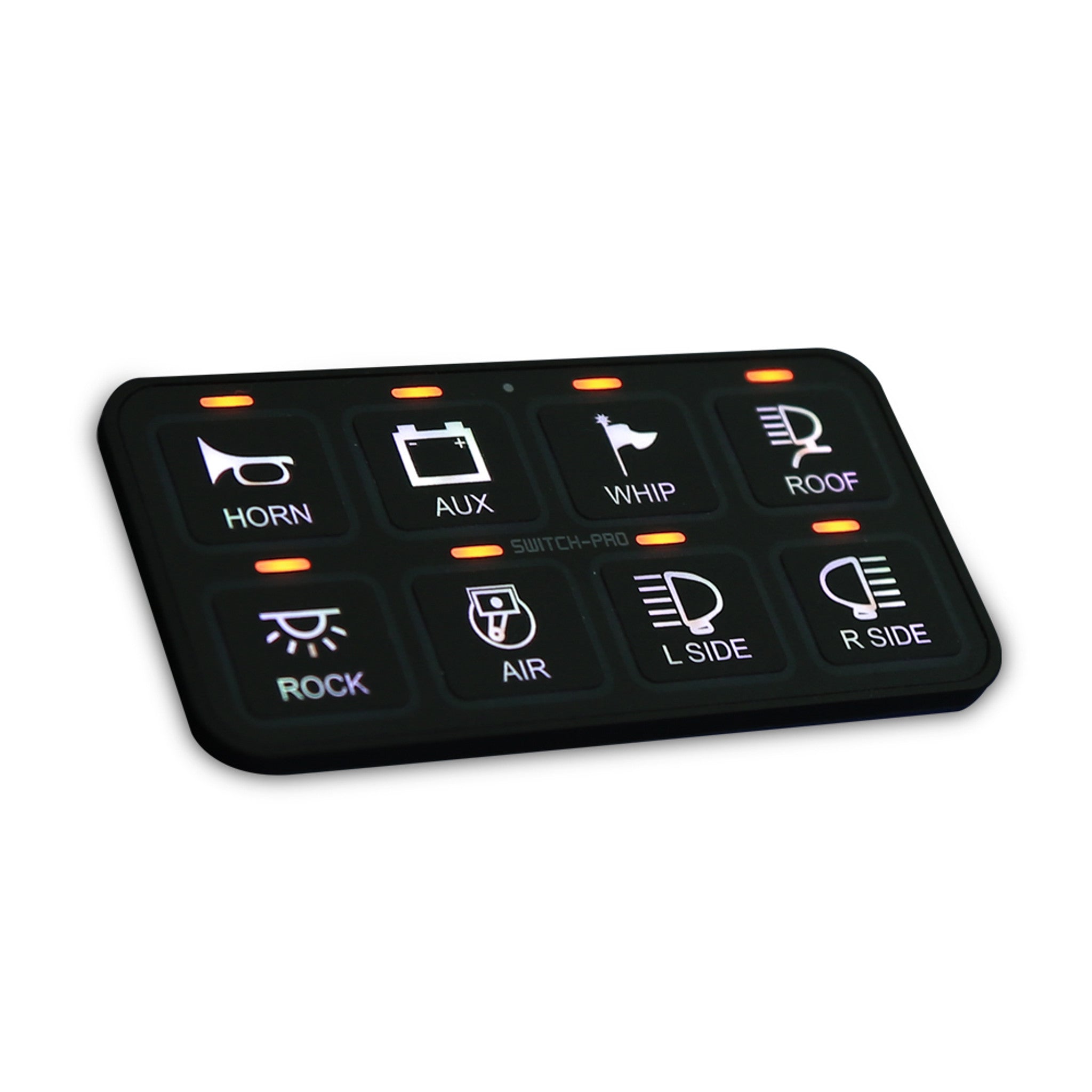

Switch Panel Specs:
- RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting
- Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” H ; includes concealed mounting hardware for factory-look installation
- Orange LED switch indicators
- 100 User Selectable Legends

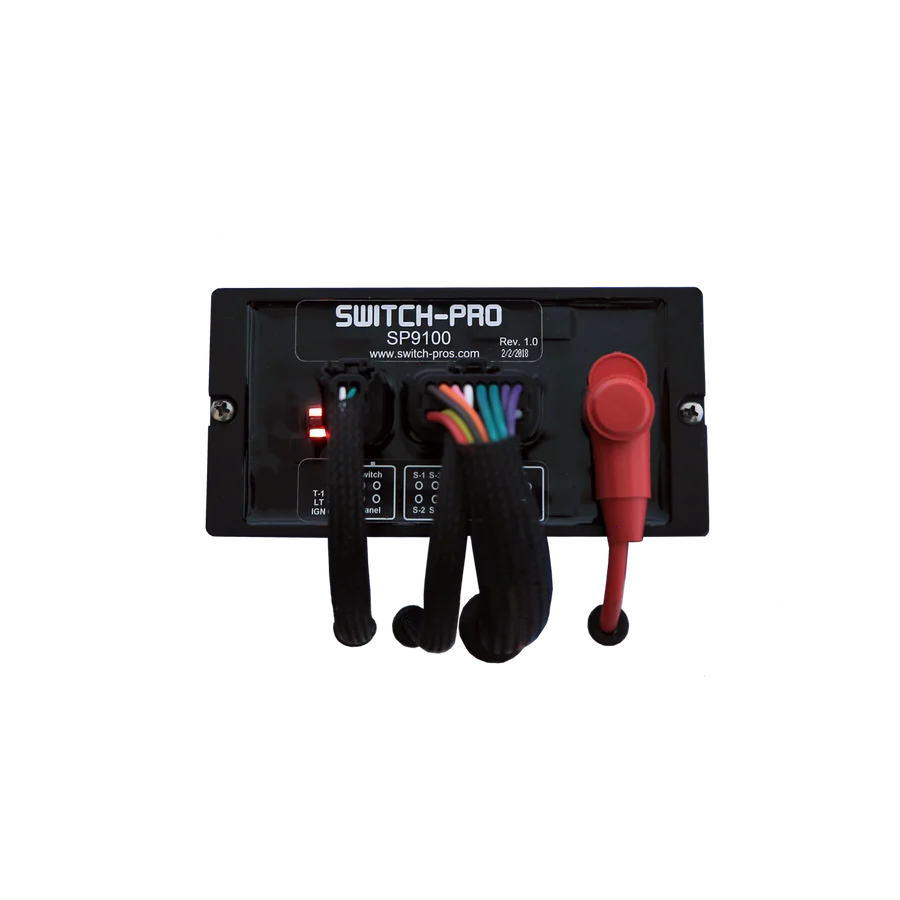

Power Module Specs:
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- 125A maximum rating
- Waterproof and Solid State
- 6”L x 3”W x .5”H (excluding connectors)
- LED Input Status Indicators for easy troubleshooting
- Underhood rated 125° to -40°C

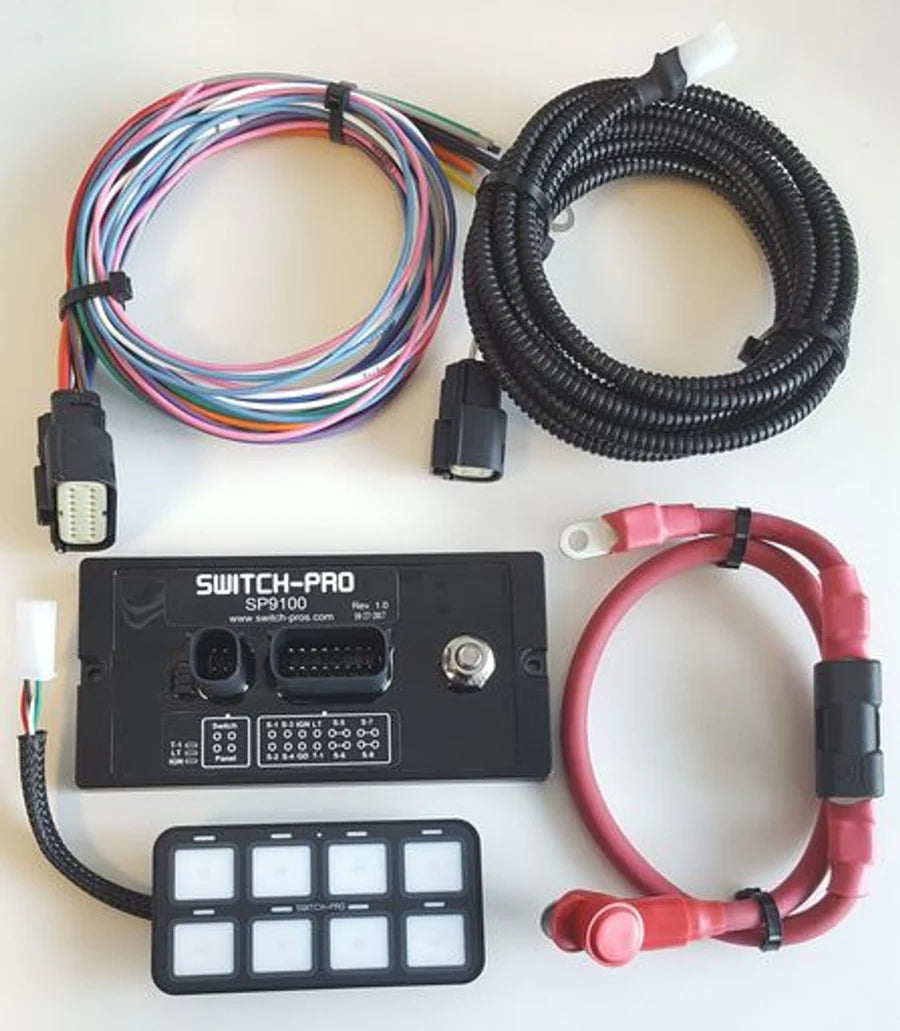

Kit Also Includes:
- 11’ of Communication Cable between Switch Panel and Power Module
- Color Coded Output wires
- Wire harness with Waterproof, sealed automotive grade connectors
- Power Cable with 125A inline fuse
