Venum Wheel

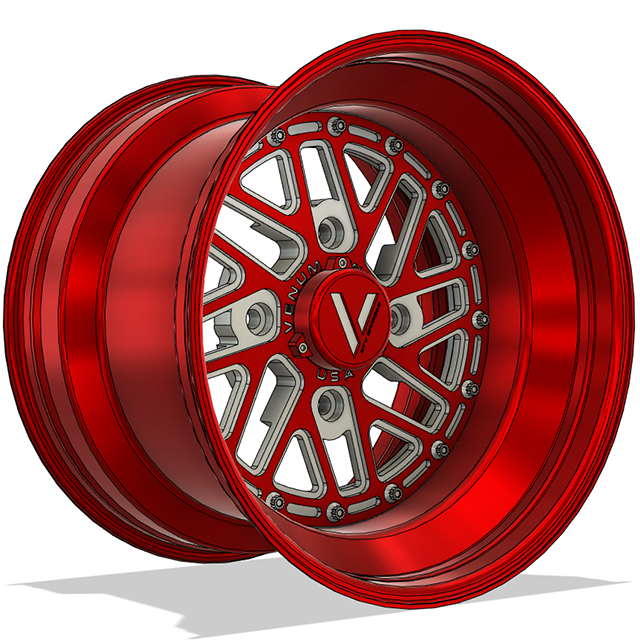

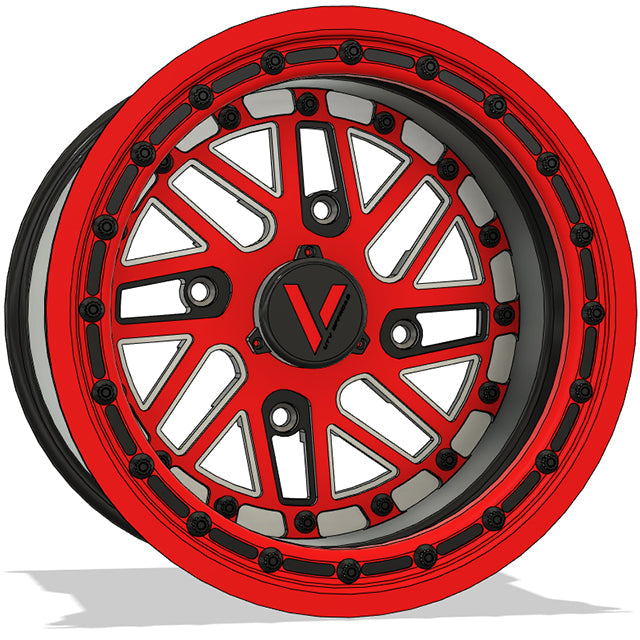

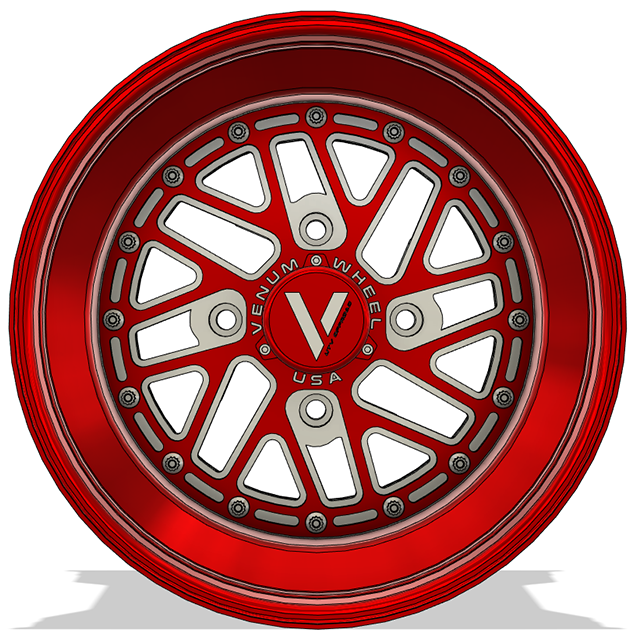

V-4 UTV Wheels Billet Aluminum Lightweight For Can Am Rzr Yxz
Bolt Pattern | Vehicle
Wheel Size | Inner + Outer |
Finish
FREE: 16 Pc 6-Spline Lug Nuts - When You Purchase A Complete Set of Wheels
Venum Wheel Introduces Our New Venum Wheel UTV Wheels. Designed & Made In California. Made Out of USA Grade 6061 T-6 Spun Aluminum Barrel & Billet Centers. These are 2 Pc Wheels. They Come Assembled & Ready To Mount.
-Standard Color is Black Barrel With Black/Machined Centers.
-Standard Fasteners Are Stainless Steel Allen Bolts
VEHICLE FITMENT
- Artic Cat - All Years Articat Wildcat (All Models)
Bolt Pattern:
- 4x156 MM |
- 12x1.5
- Can Am - 2017-2021 Can Am X3 (All Models)
Bolt Pattern:
- 4x137 MM |
- 12x1.5
- Honda - All Years Honda Talon
Bolt Pattern:
- 4x137 MM |
- 12x1.5
- Polaris - All Years Polaris RZR (All Models)
Bolt Pattern:
- 4x156 MM |
- 12x1.5
- Yamaha - 2016-2019 Yamaha YXZ 1000R
Bolt Pattern:
- 4x110 MM |
- 12x1.25
- Yamaha - 2020 + Yamaha YXZ 1000R
Bolt Pattern:
- 4x156 MM |
- 12x1.25
FEATURES
- Barrels Are Made Out of 6061 T-6 Aluminum
- Hardened at 1200°F, Then Sent Out To Get A T-6 Treatment
- Center Is Made Out of 6061 T-6 Billet Aluminum
- Enhance Vehicle Appearance; Aggressive Stance
- Rolled Beads
- Wheels Come Assembled
- Made In The U.S.A.
SPECIFICATIONS
- Model: V-4
- Wheel Size: 15"
- Wheel Width: Choose Above
- Wheel Bolt Pattern: 4x137 MM
- .190" Aluminum Spun Inner Half
- .190" Aluminum Spun Outer Half
- Lug Nut Holes: Conical Seat
- Finish: Choose Above
- Comes With Valve Stems
CUSTOM POWDER COATING
Billet Center ( Machined )
Please Make Sure You Have Selected " Custom Color " Under The " Billet Center Color " Option Above If You Are Looking For A Custom Color.
- Once Wheel is Added To Cart, You Will Get A Pop Up Window
- Turn Around Time For Custom Colors is Under 2 Days.
Wheel Barrels ( Rims ) 1 Color
Please Make Sure You Have Selected " Custom Color " Under The " Wheel Barrel Color " Option Above if You Are Looking For A Custom Color.
- Once Wheel is Added To Cart, You Will Get A Pop Up Window
- Turn Around Time For Custom Colors is Under 2 Days.
CUSTOM FASTENER BOLTS
We Offer Different Fastener Bolts As Well As Powder Coated Finishes
- Once Wheel is Added To Cart, You Will Get A Pop Up Window
- Powder Coated Bolts Available
Allen Custom Color Bolts
Hex Custom Color Bolts
WEIGHT & OFFSETS
|
Size
|
Negative | Positive | Weight |
| 15x7" | 3.5" | 3.5" |
- |
| 15x9" | 3.5" | 5.5" |
- |
| 15x11" | 5.5" | 5.5" | - |
INSTALLATION INSTRUCTIONS
- All Bolts Are Torque Down To 18 Ft/Lbs.
- Red Thread Locker Has Been Applied To Prevent Bolts From Coming Loose
- It Would Be A Good Idea To Retorque All Bolts Every Other Ride
PRODUCT VIDEOS
- Product Videos Will Be Updated Soon
FREE LUG NUTS
Free Lug Nuts When Purchased A Full Set of 4 Wheels ( Any Color Lug Nuts )
| Thread Pitch | Series | Thread Pitch | Link |
| Conical |
6 Series (6-Spline) |
12x1.5 | 16 Pc Lug Nuts |
WARRANTY
- Further Warranty Information Will Be Updated Soon
