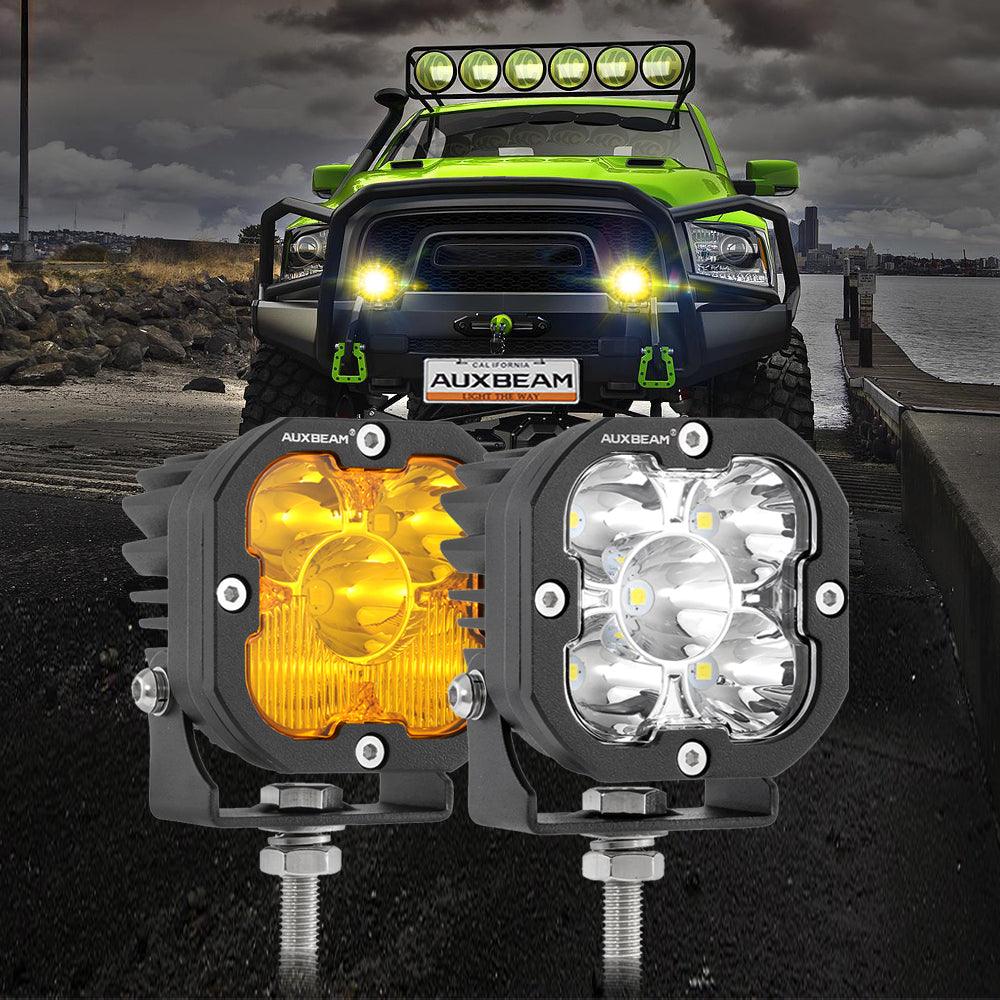

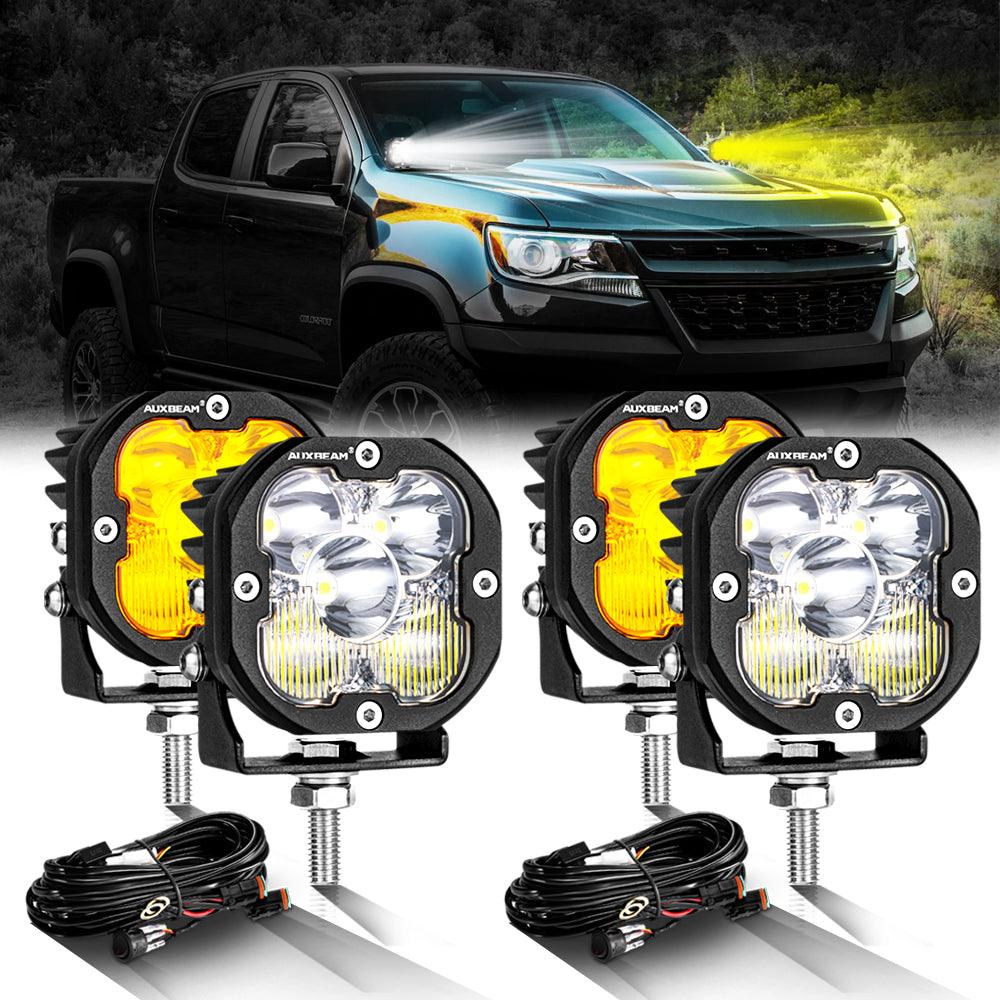

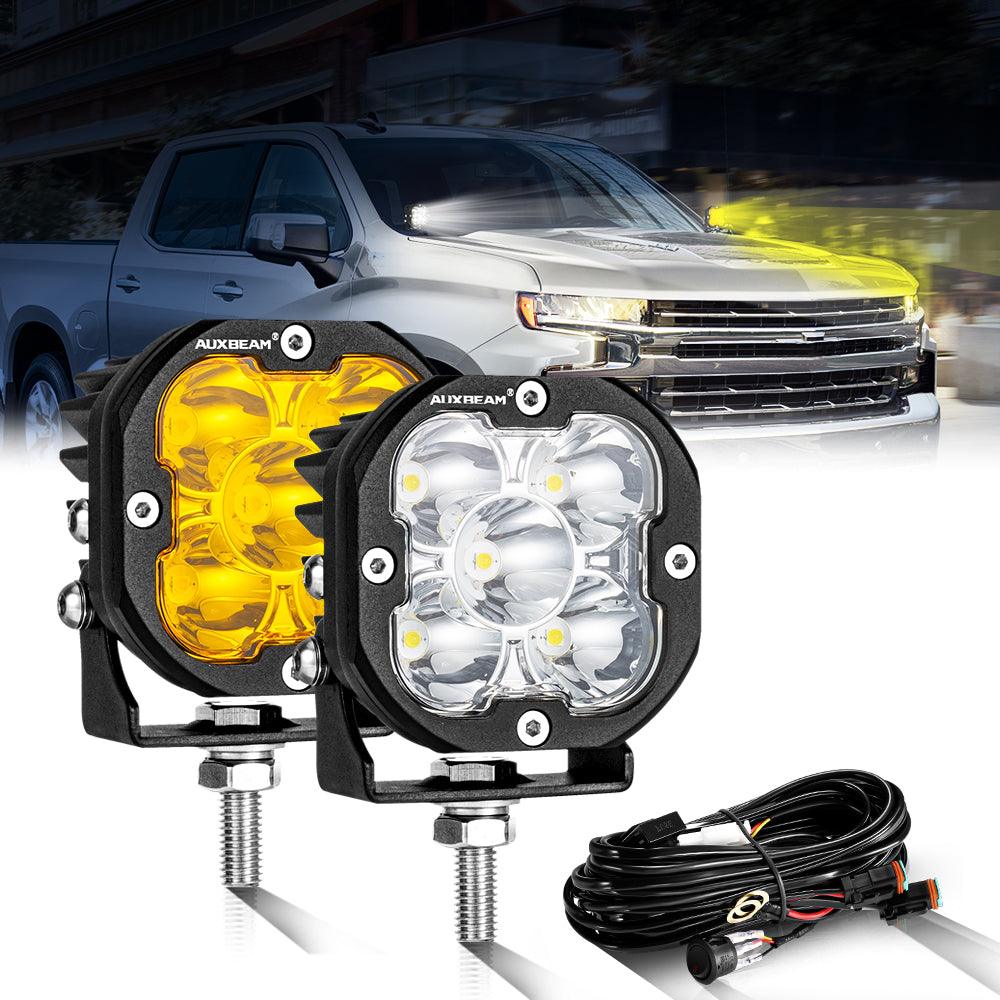

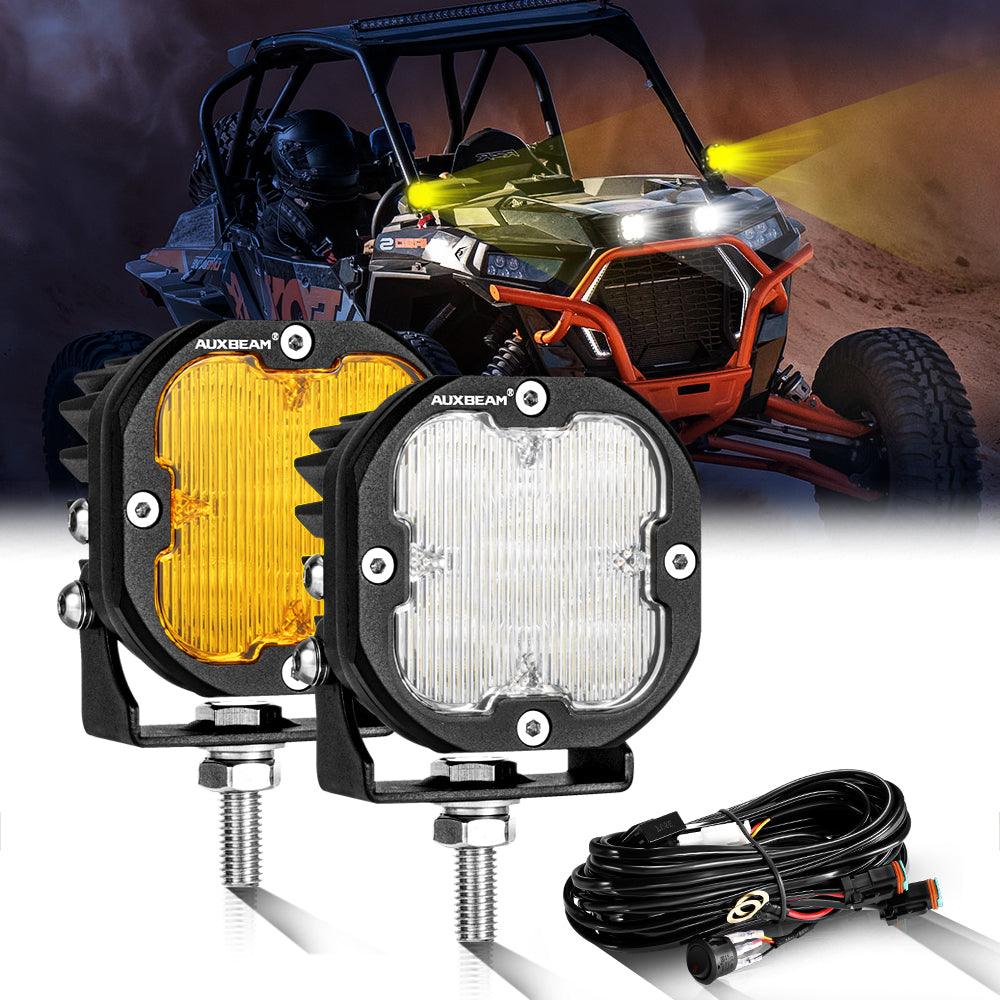

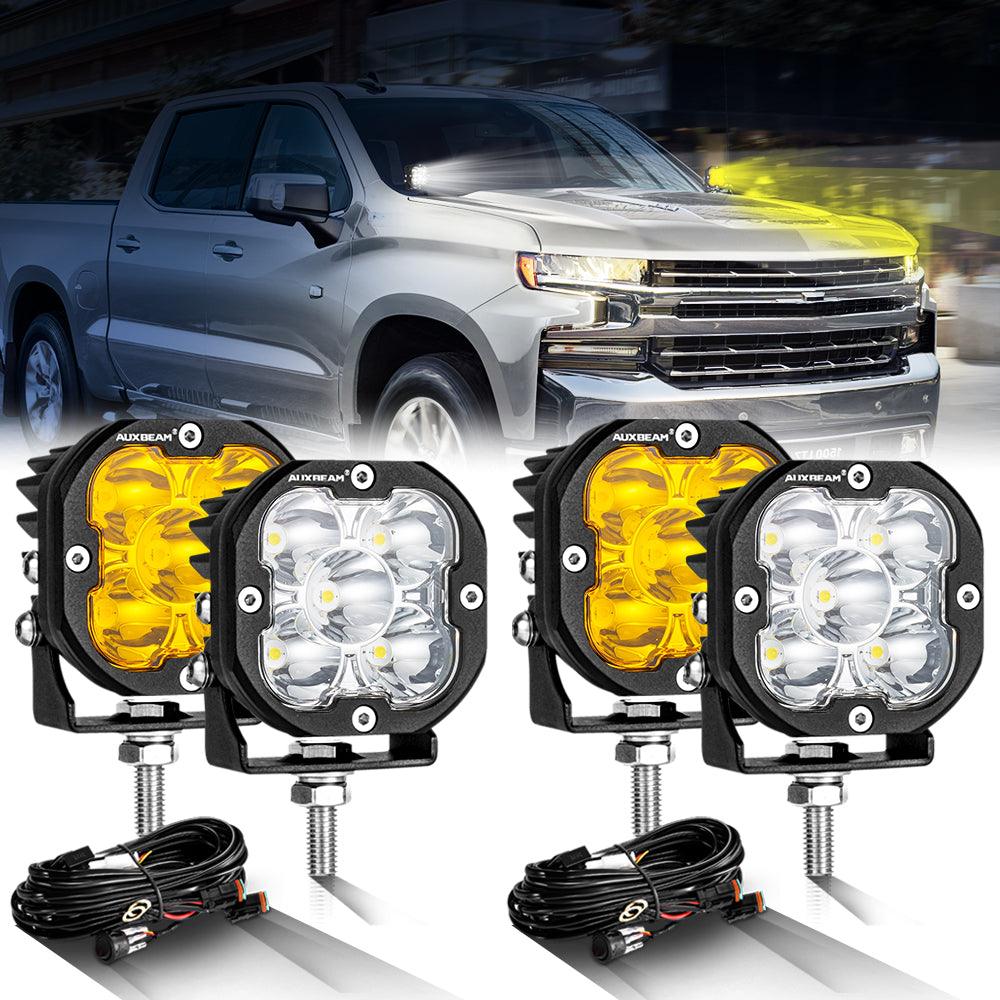

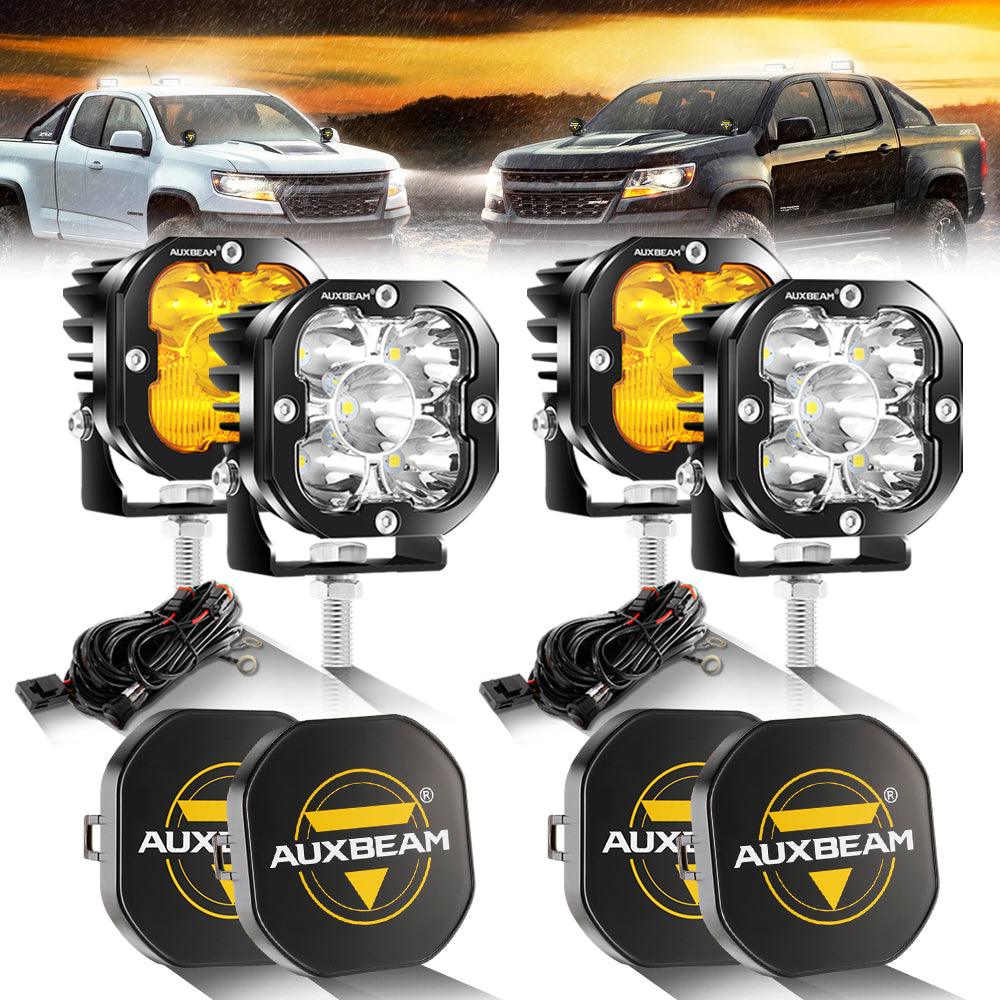

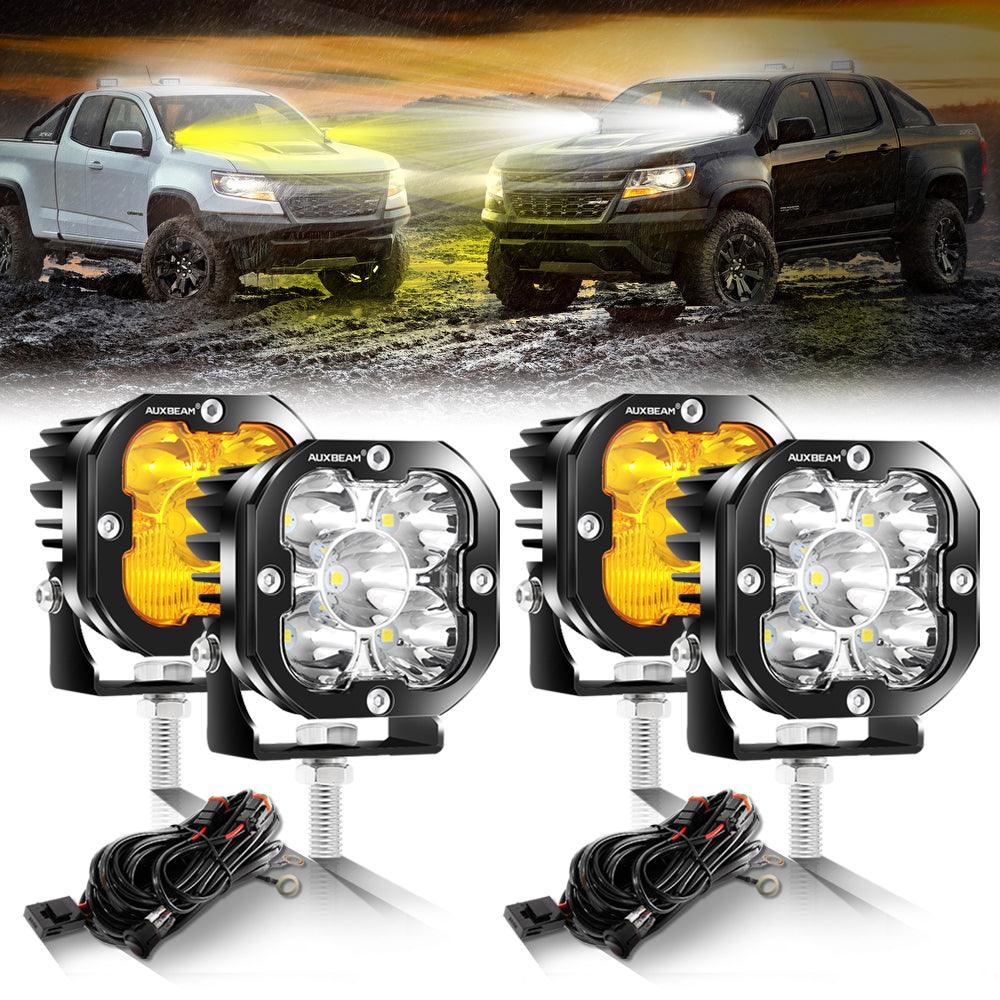

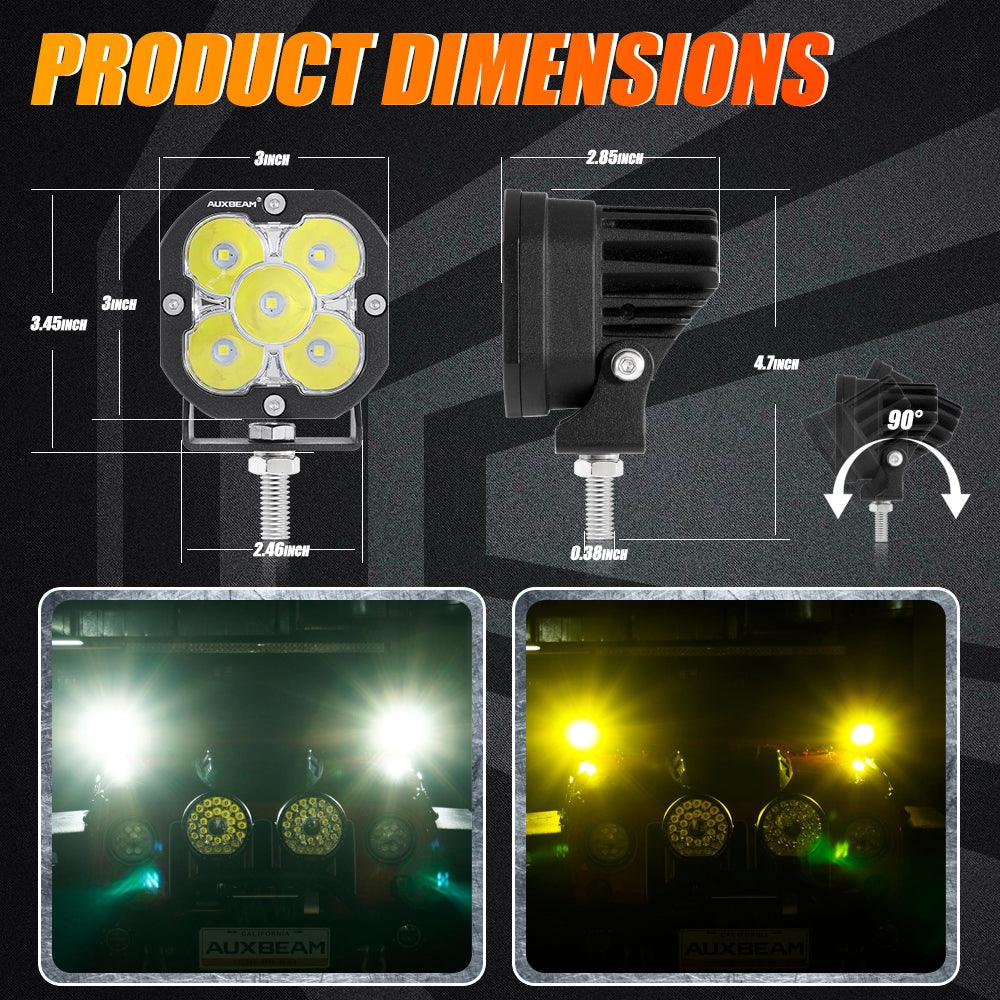

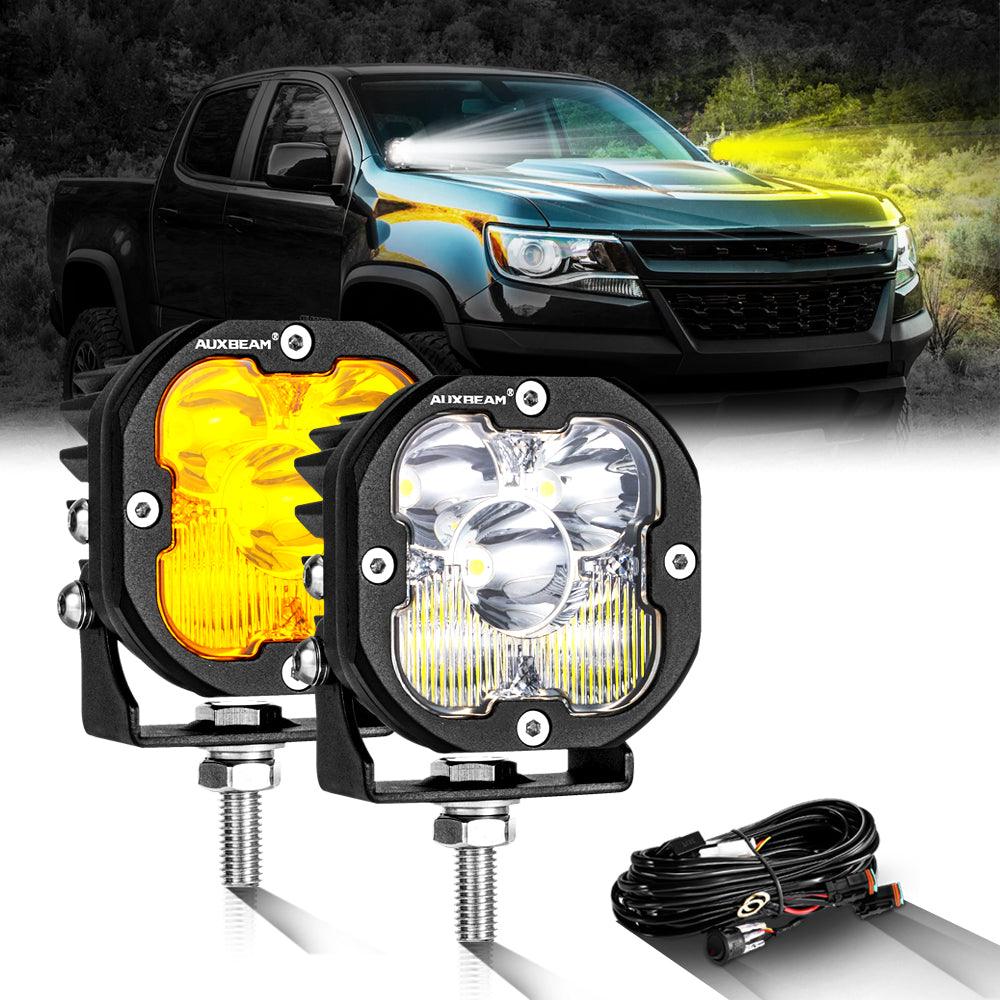

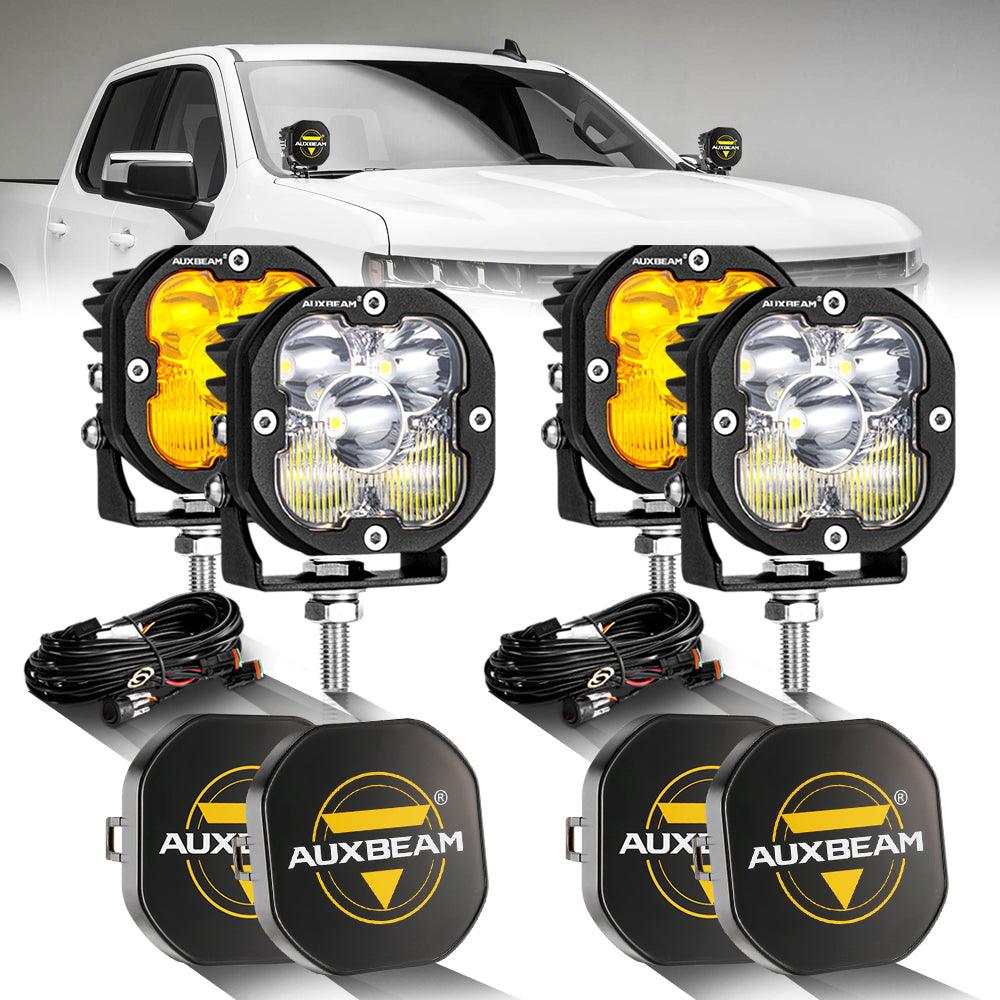

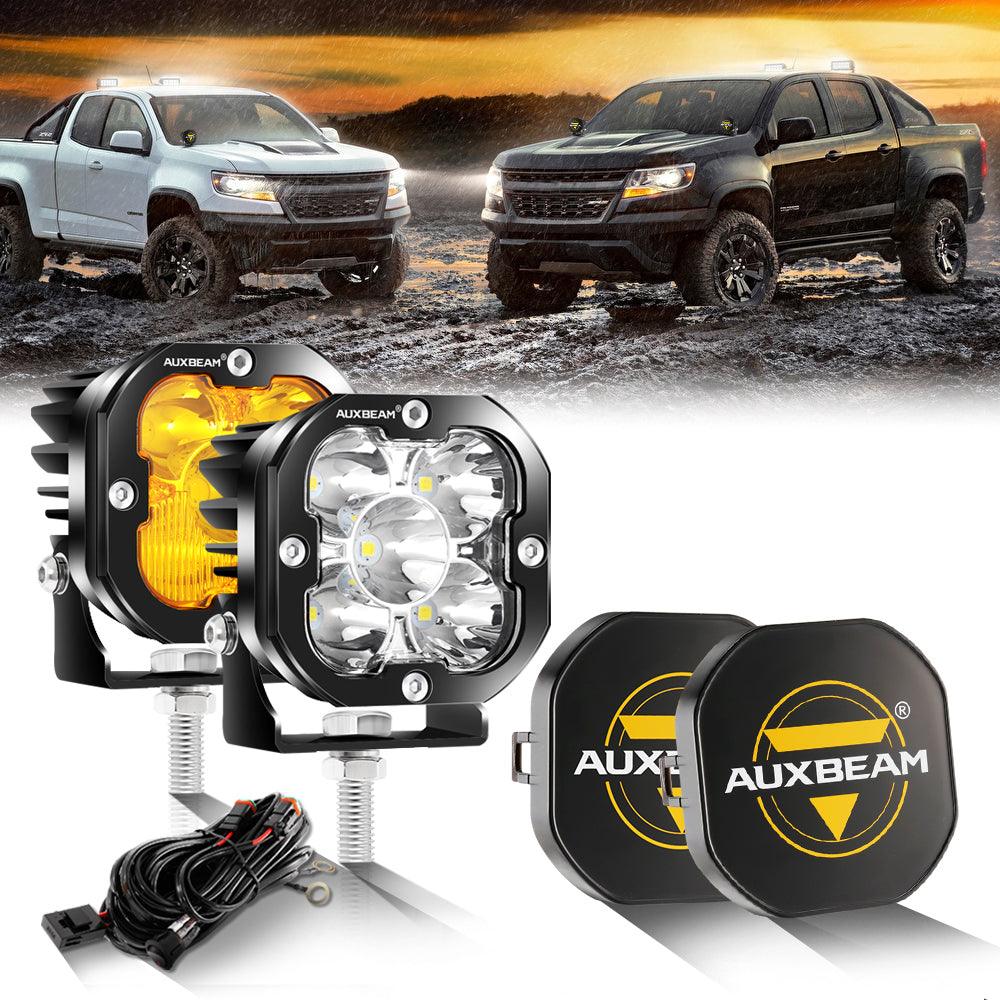

XP-ULTRA Series 3 Inch 80W 9600LM LED Pods Lights White&Amber

▶3 Inch Pod Lights

Features:

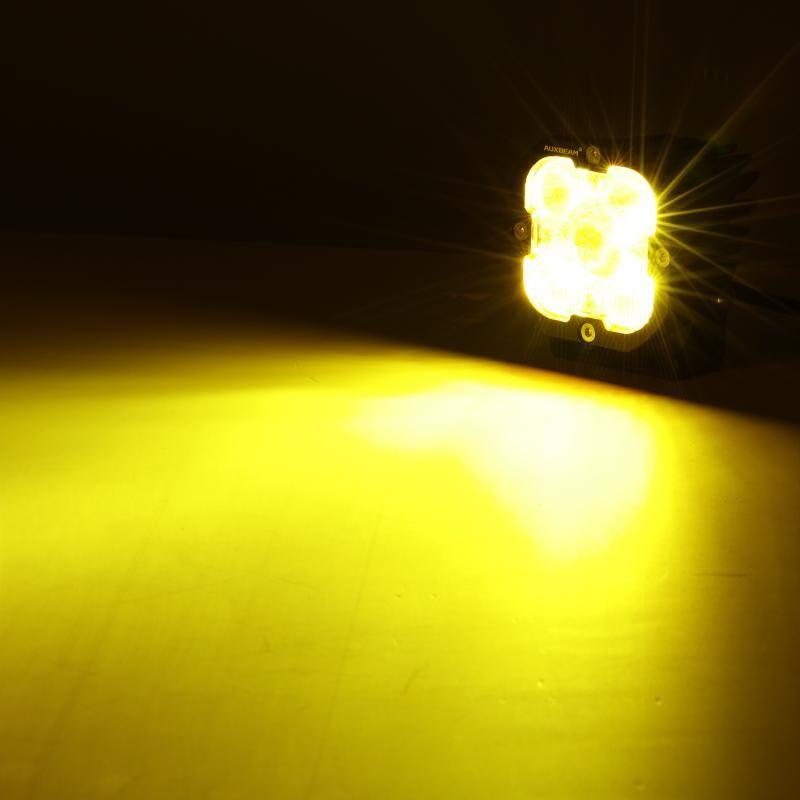

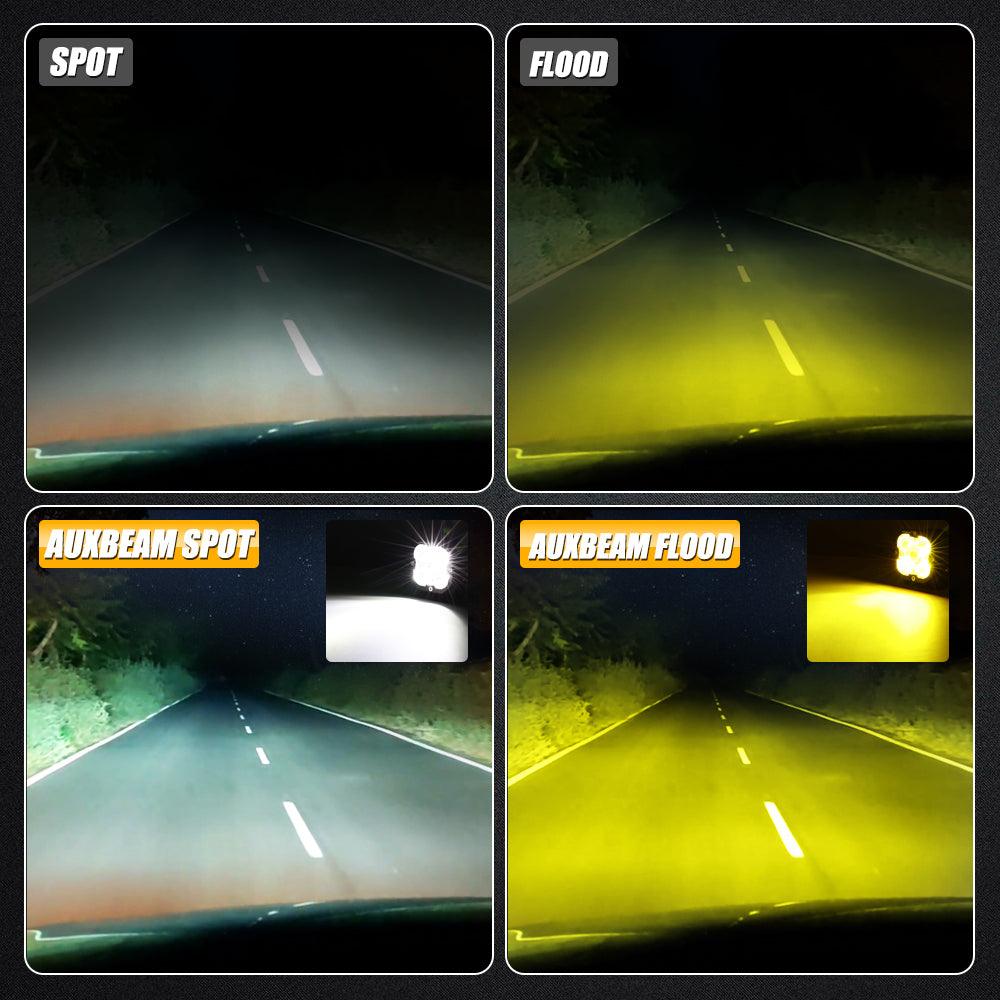

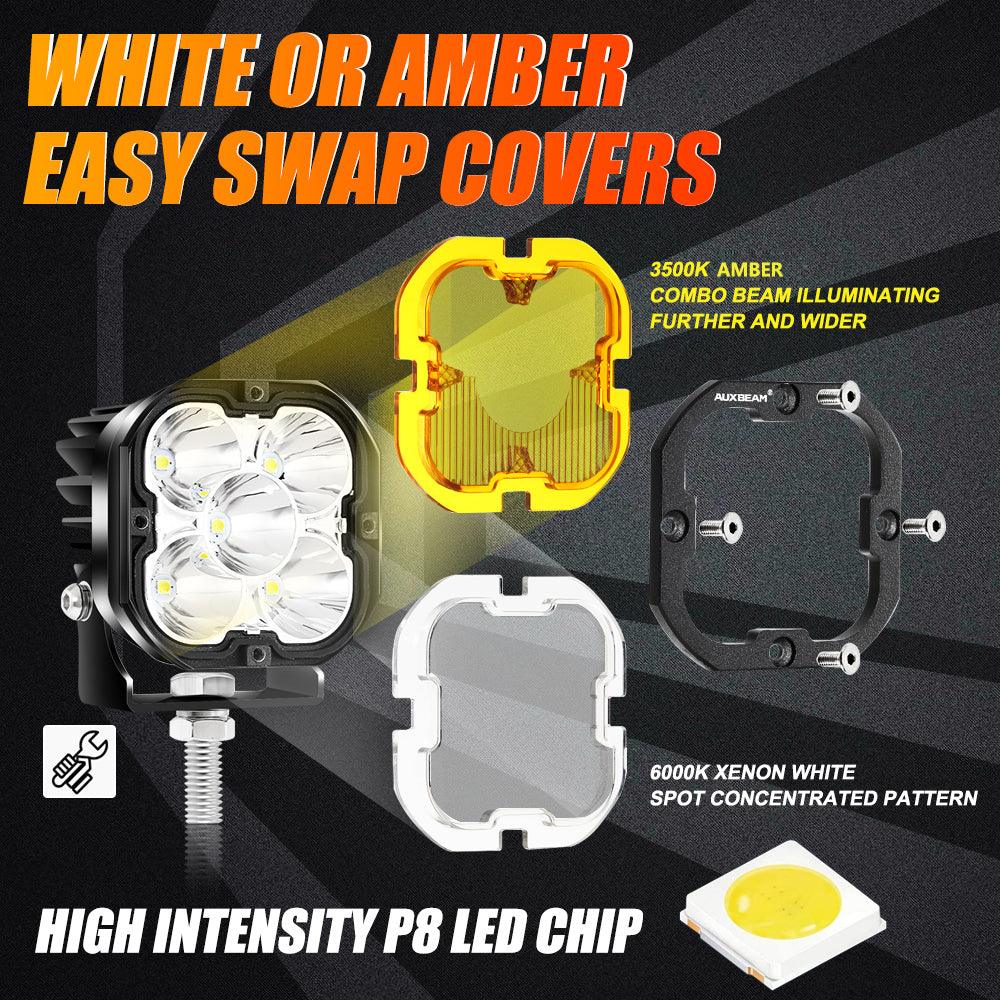

• Additional amber masks of personality modify your pods' color, get strong penetration color temperature for low visibility driving. It allows you to cut through dust, rain, snow, and fog to maintain maximum visibility.

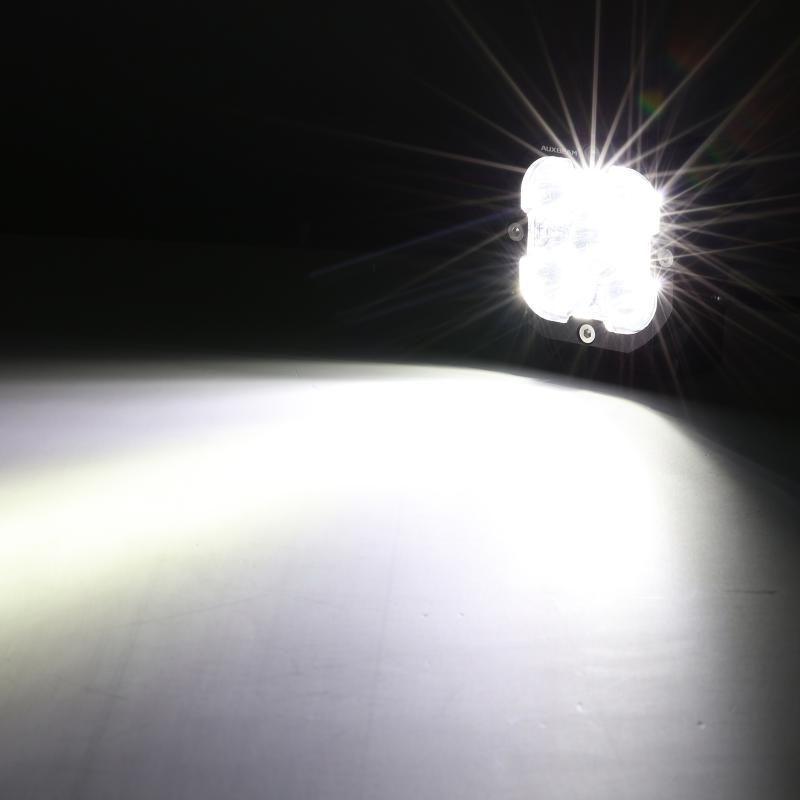

• P8 LED chips with high intensity and perfect visibility, the perfect option for led driving light.

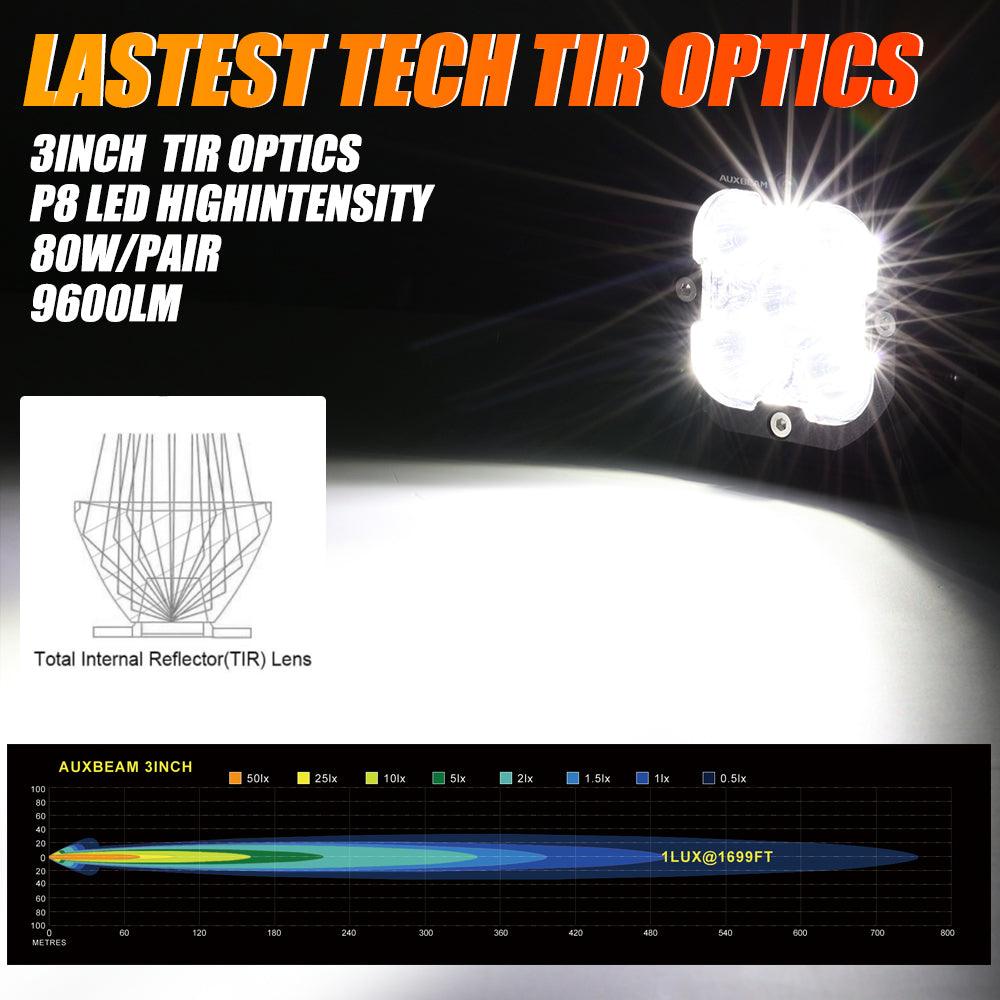

• TIR optics design collects all the light from LED improve beam pattern more focused and effective, reducing glare.

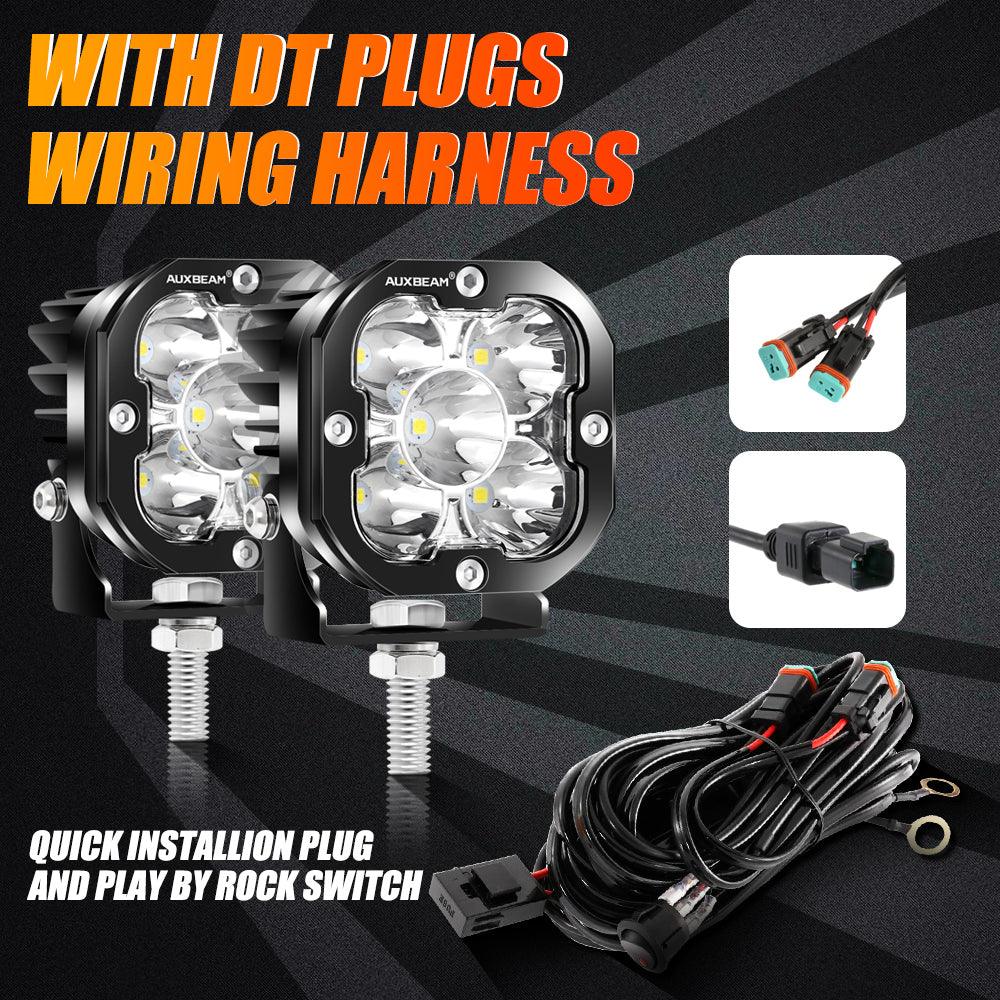

• Comes with 2 lead DT plugs wiring harness kit include fuse relay and switch all in a set, pretty easy and quick hook up.
  Rugged die-casting aluminum body designed for optimal heat removal, conquers rough off-road environments and resists corrosion.

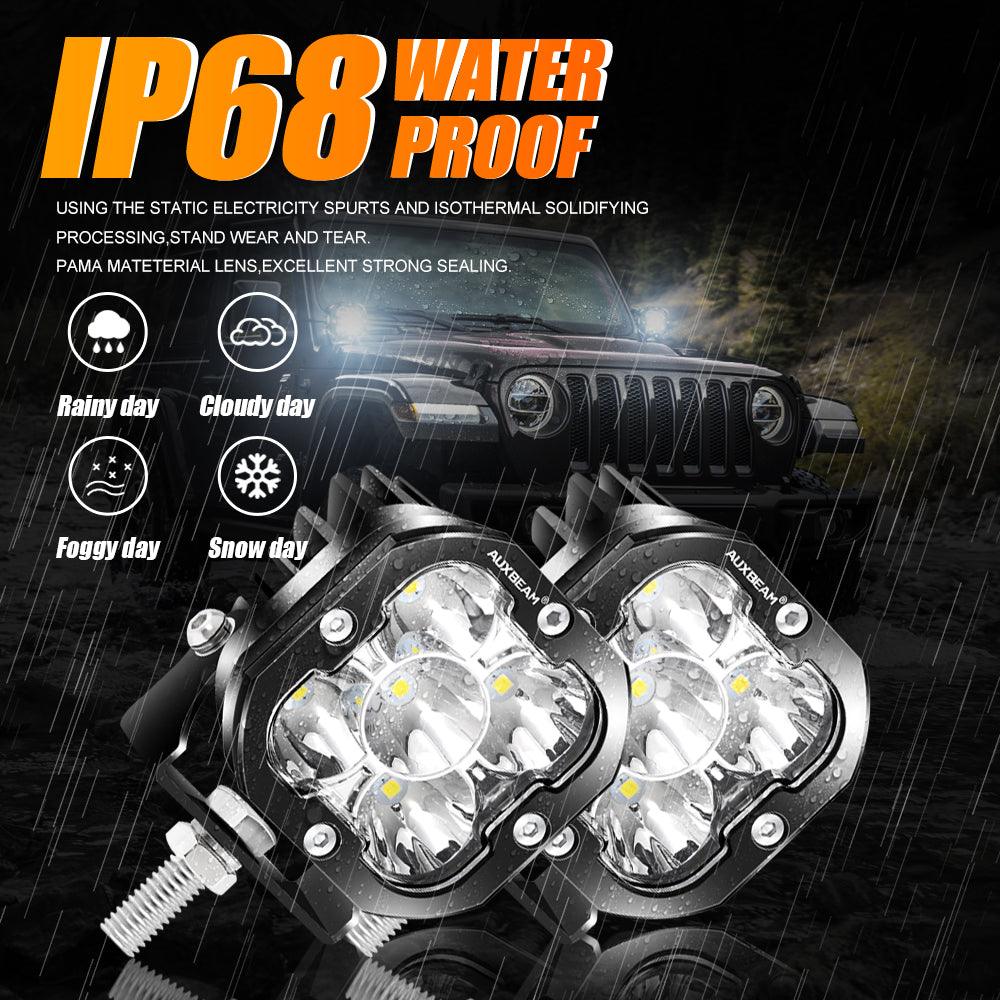

• Impact-resistant polycarbonate lens. IP68 rated water-resistant.

Specifications:

Input Voltage: 12-30V
Power: 80W/SET
Lumen: 9600M/PAIR
LED CHIPS: P8*5
LED Quantity(each): 5 Pcs
Color Temperature: 6000KWhite/3500K-Amber
Waterproof Rate: IP68
PCS/SET: 2Pcs

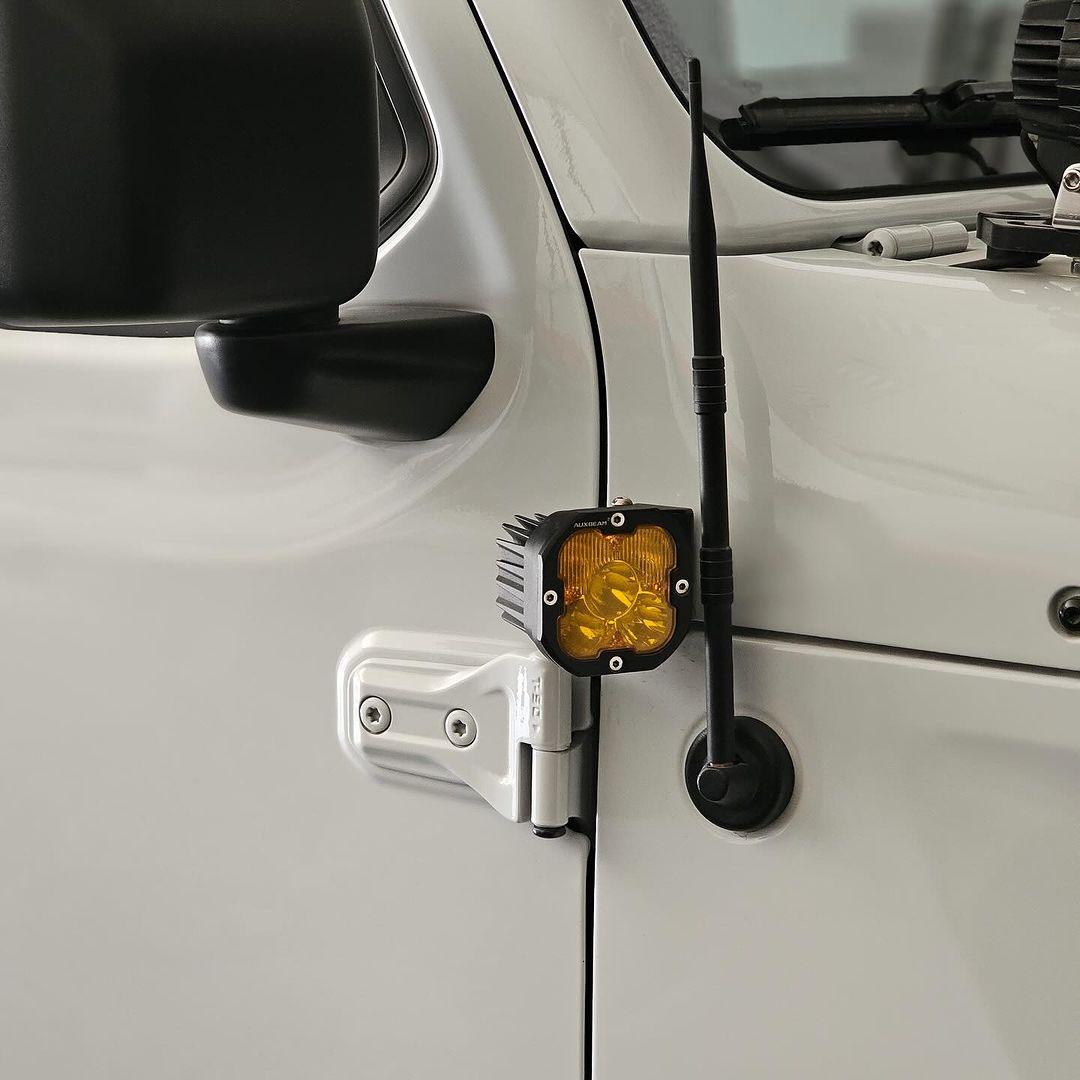

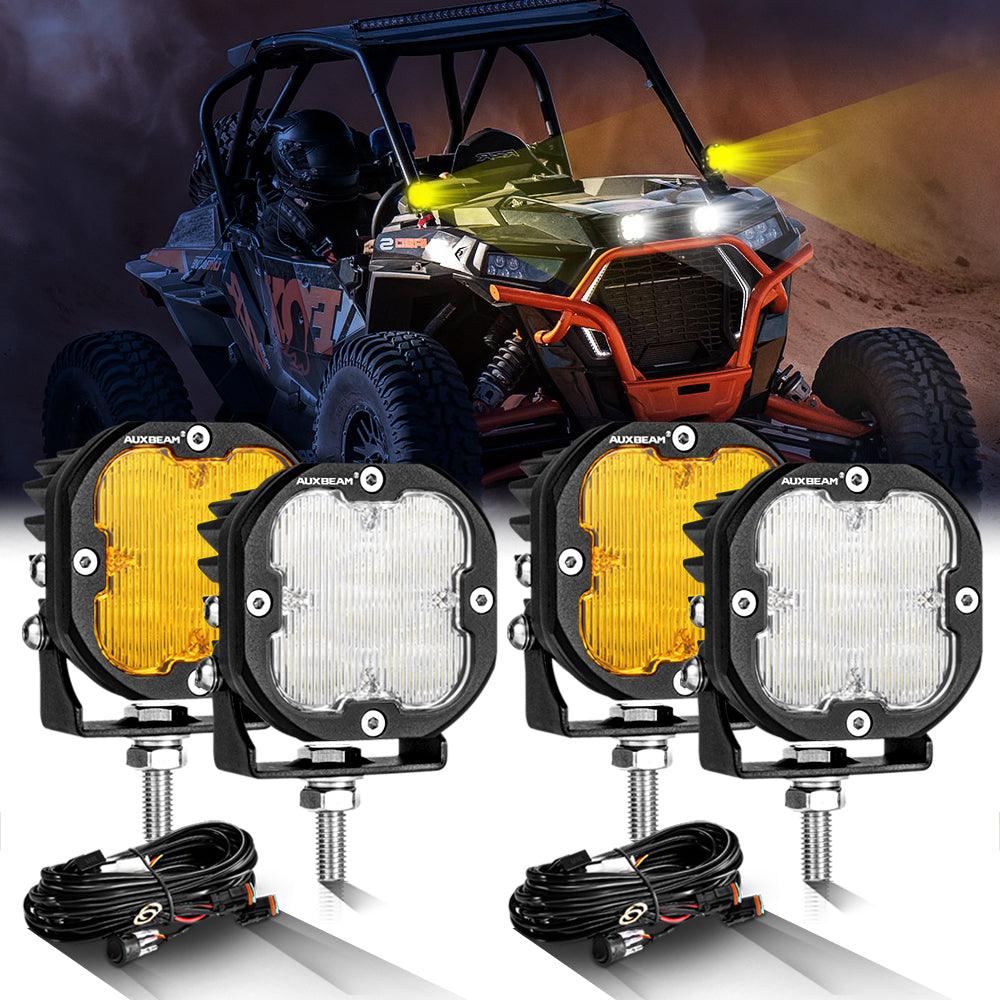

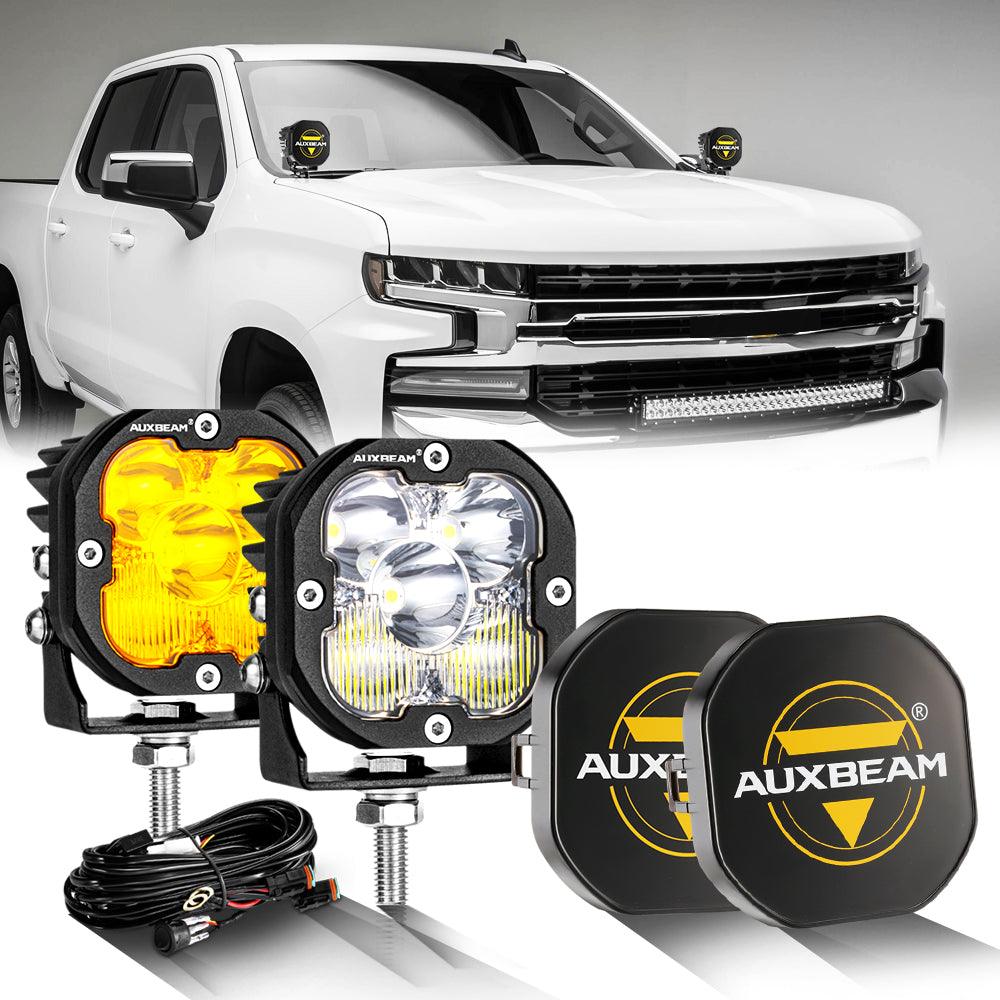

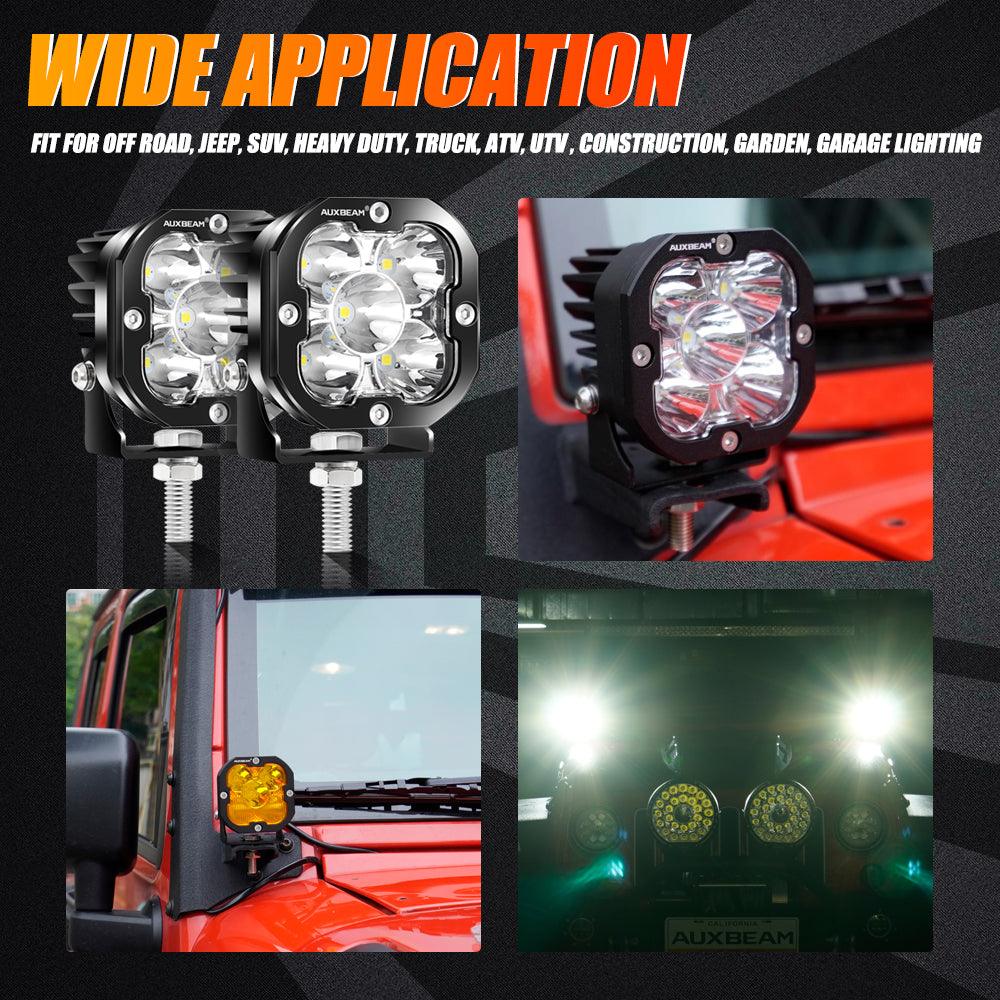

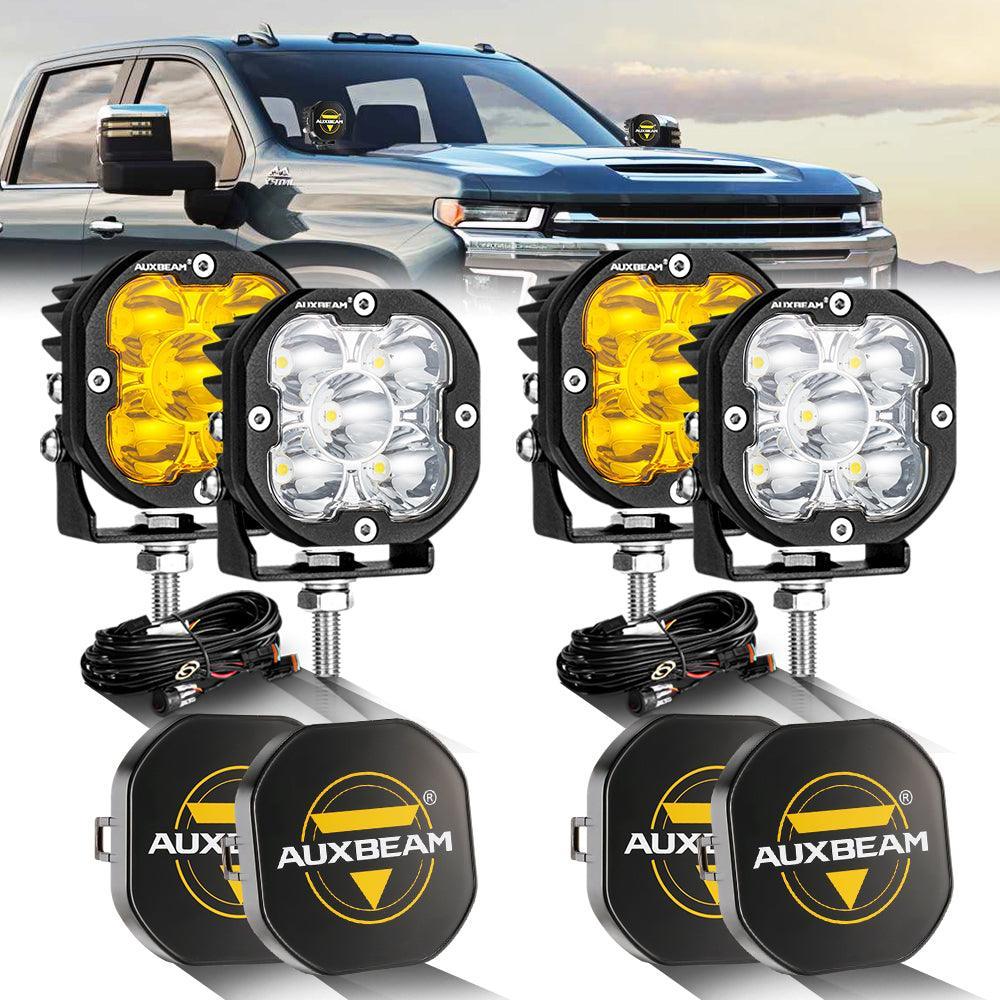

Built For Any Adventure:

Auxbeam LED light pods are designed to be tough enough for a wide range of applications.

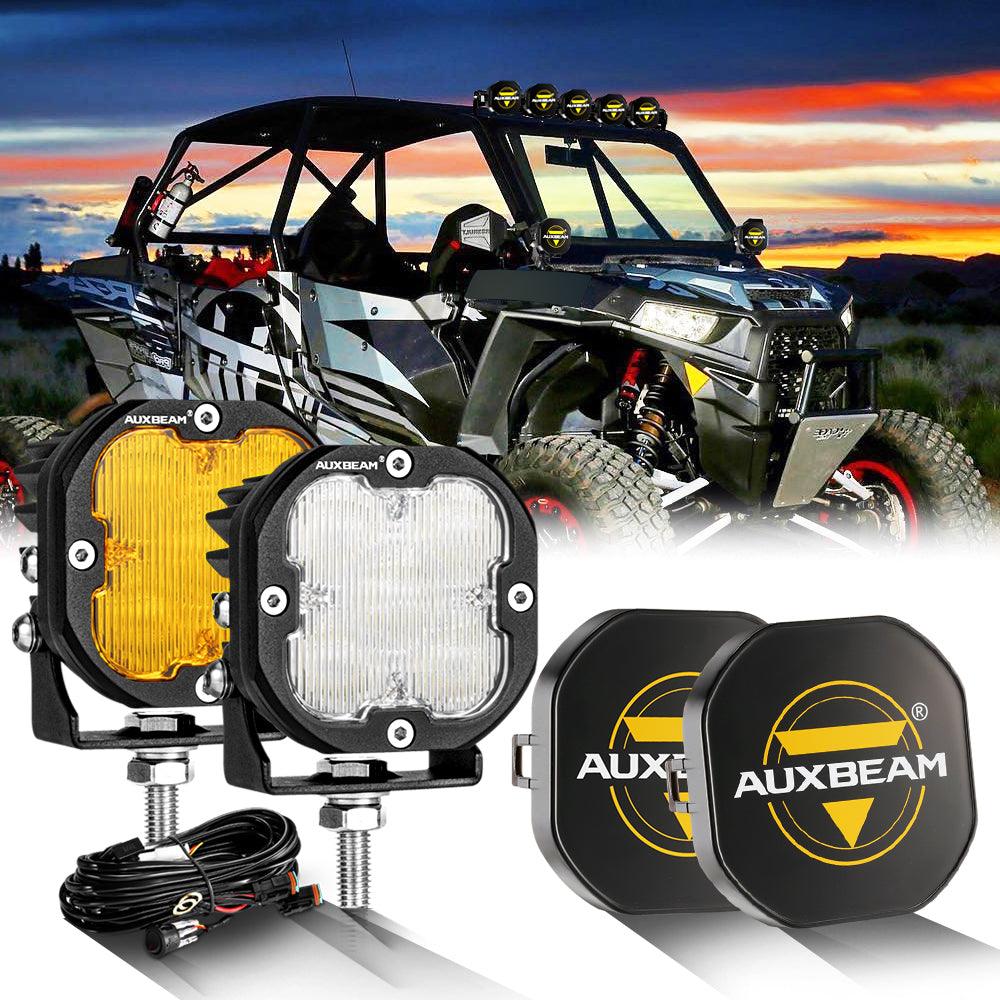

Compatible with Trucks, Cars, Boats, SUV, UTV, ATV, Snowmobiles, Motorcycles, Dirt Bikes, 4x4...

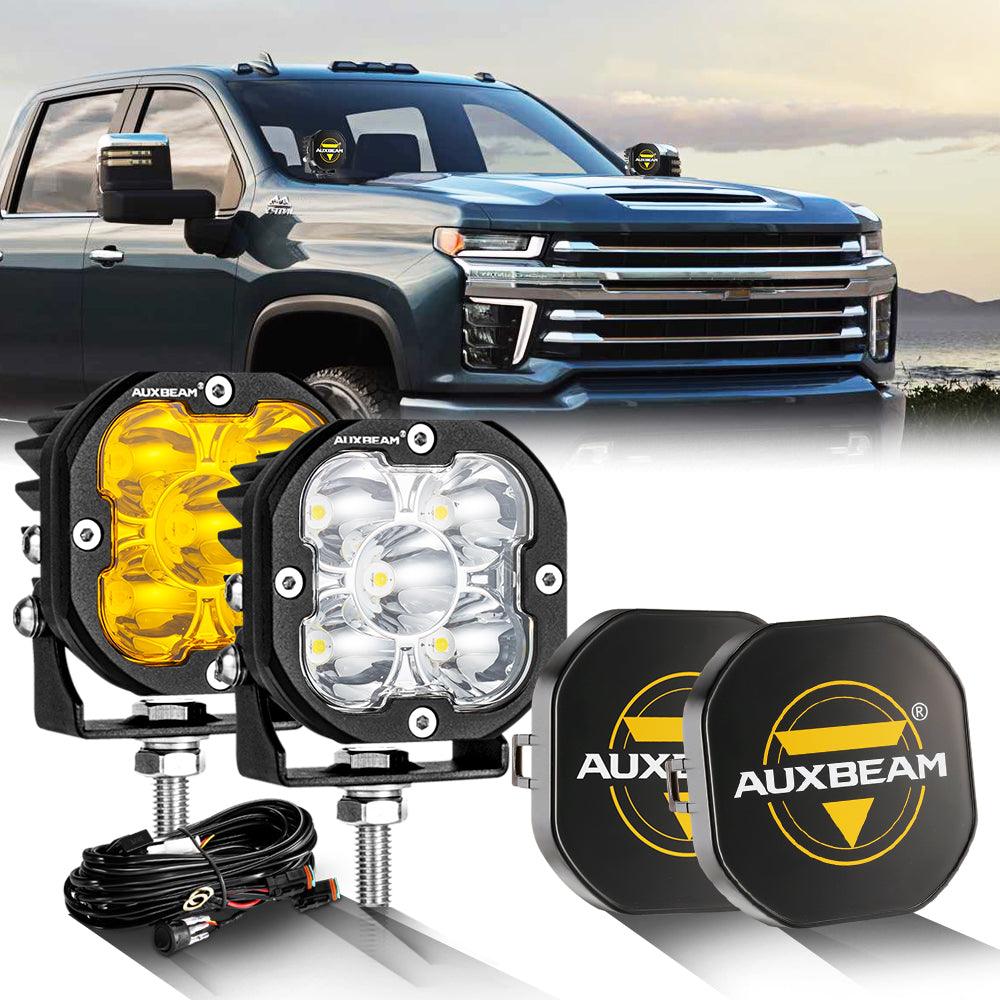

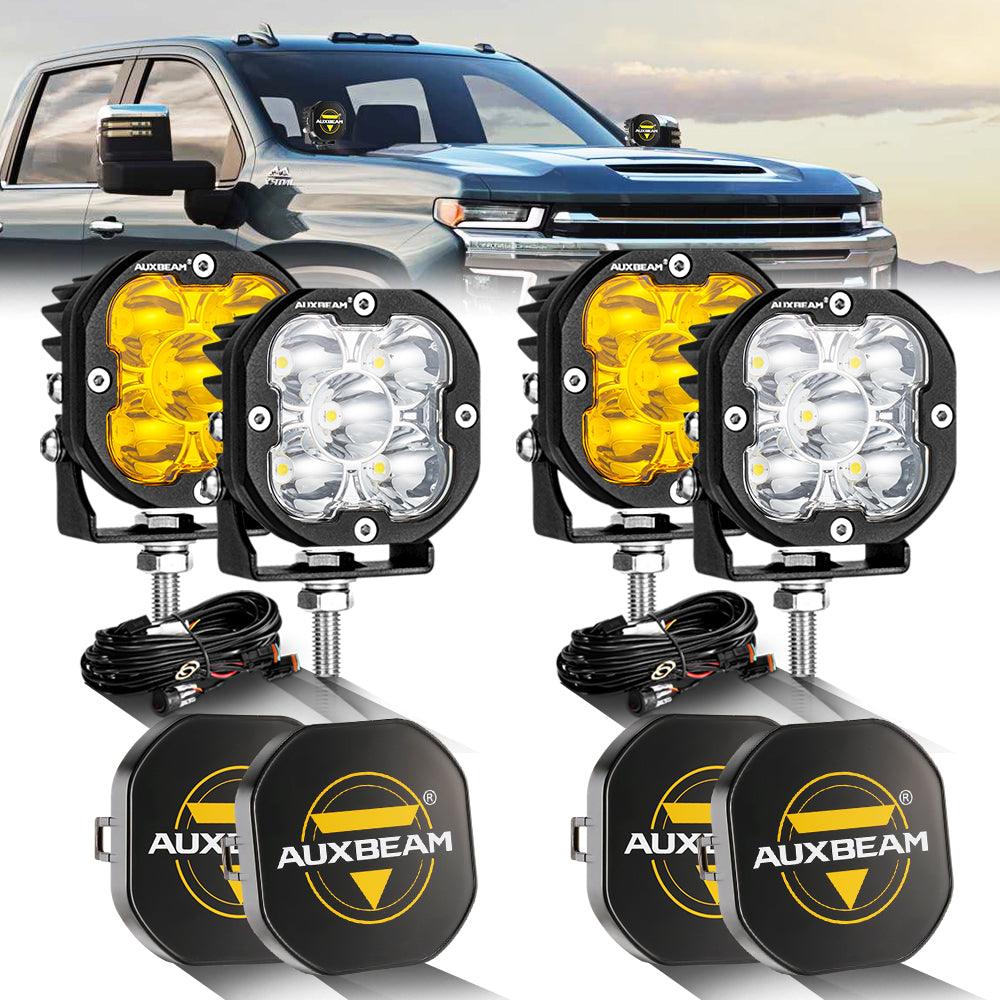

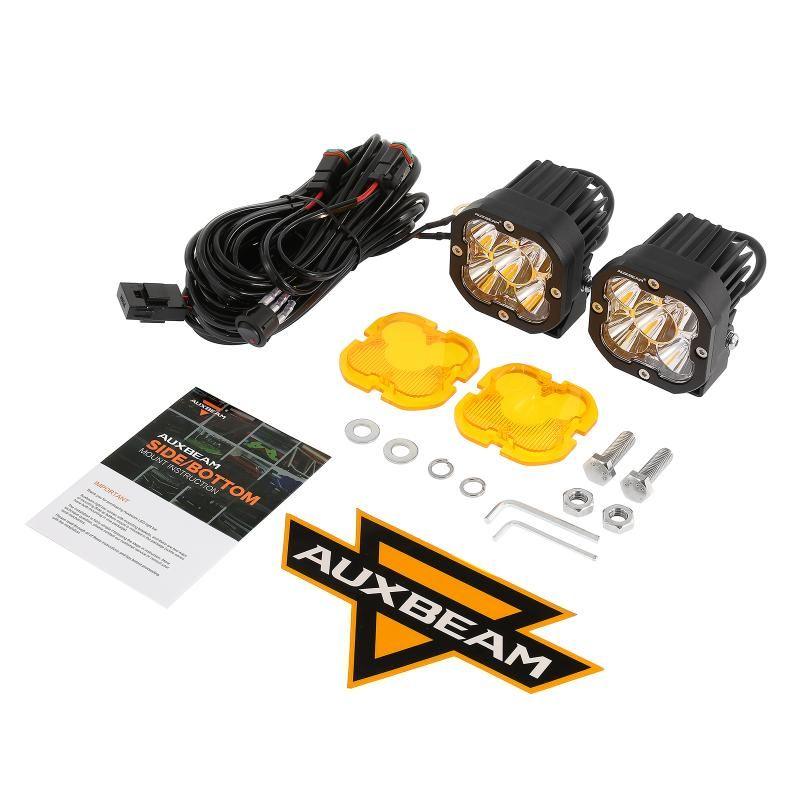

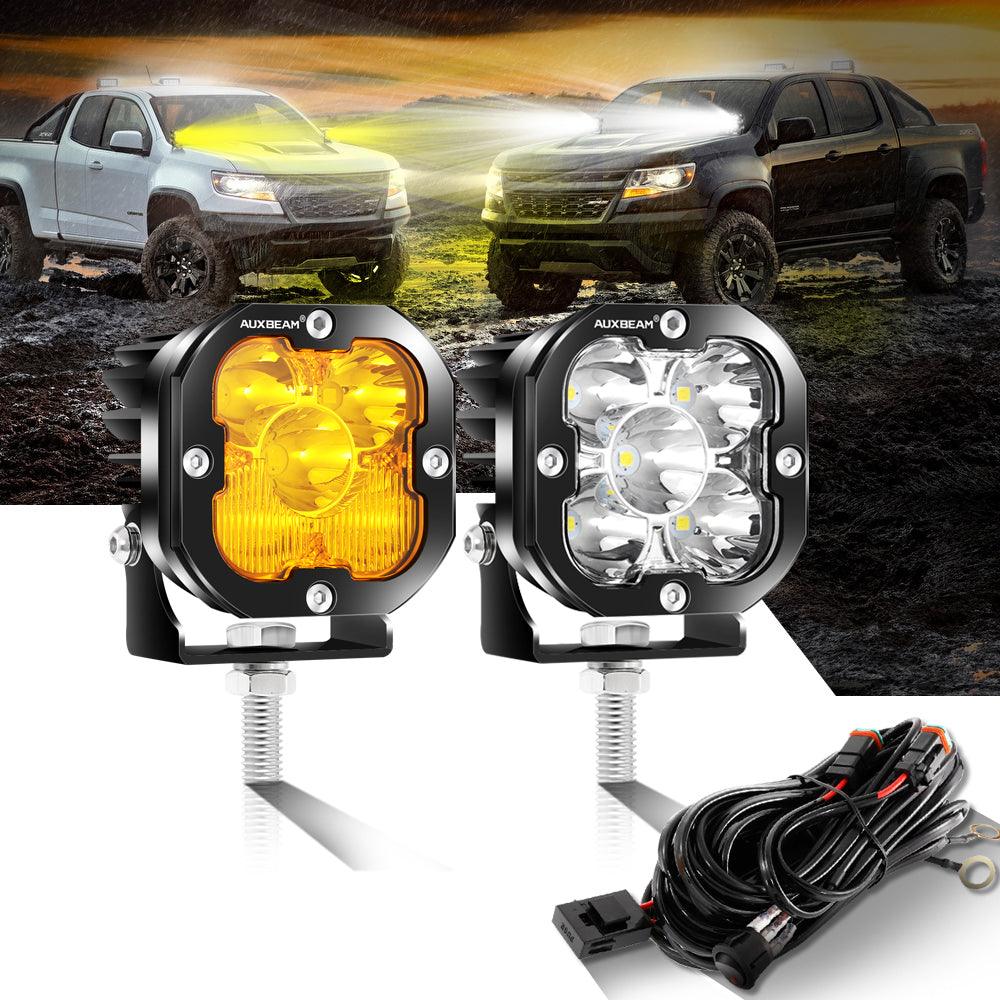

Package Included:

2 x LED Pod Lights

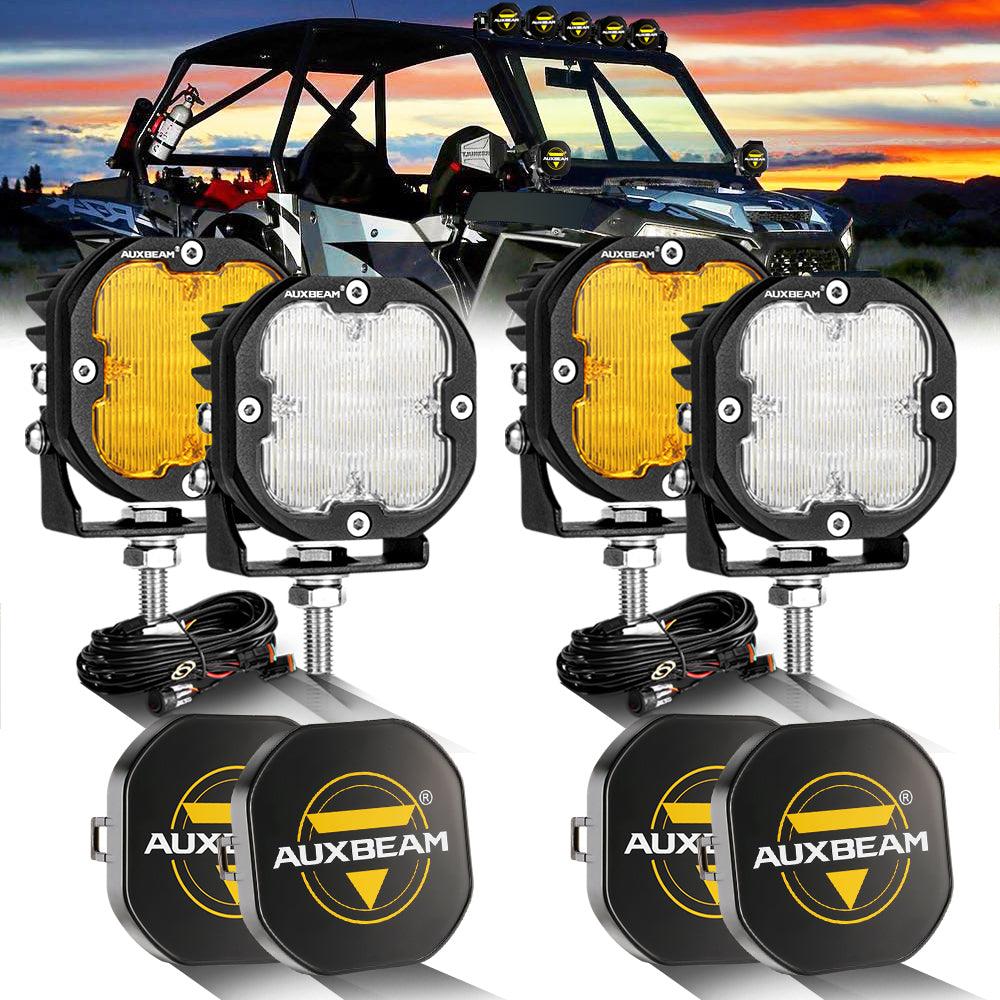

2 x Amber Lenses
1 x Harness Kit DT Plugs

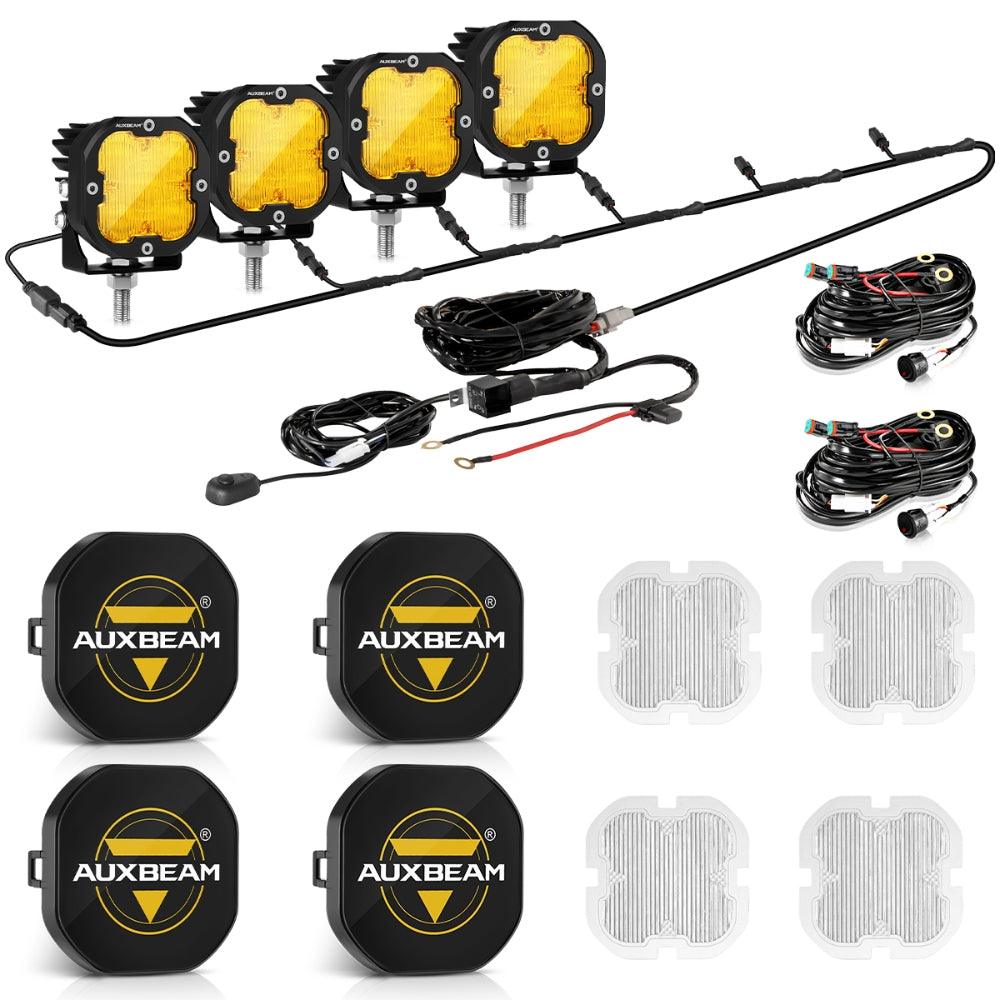

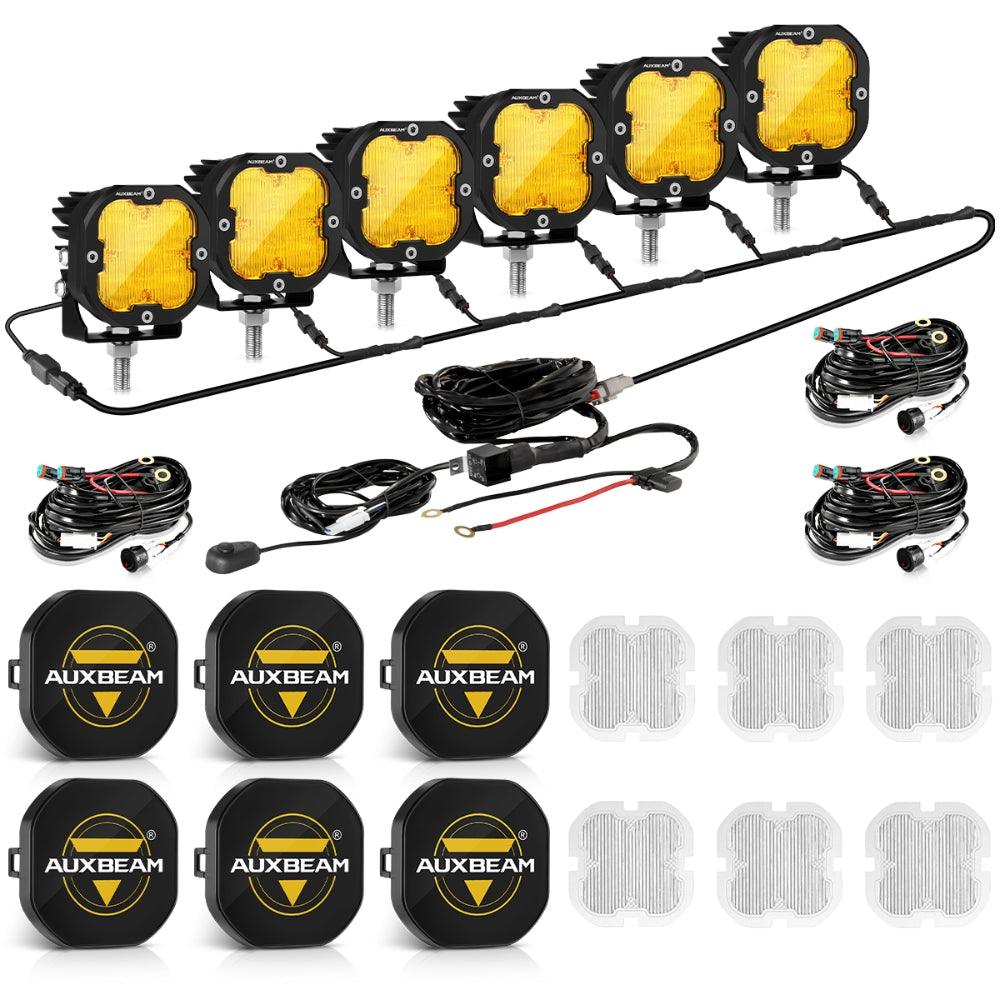

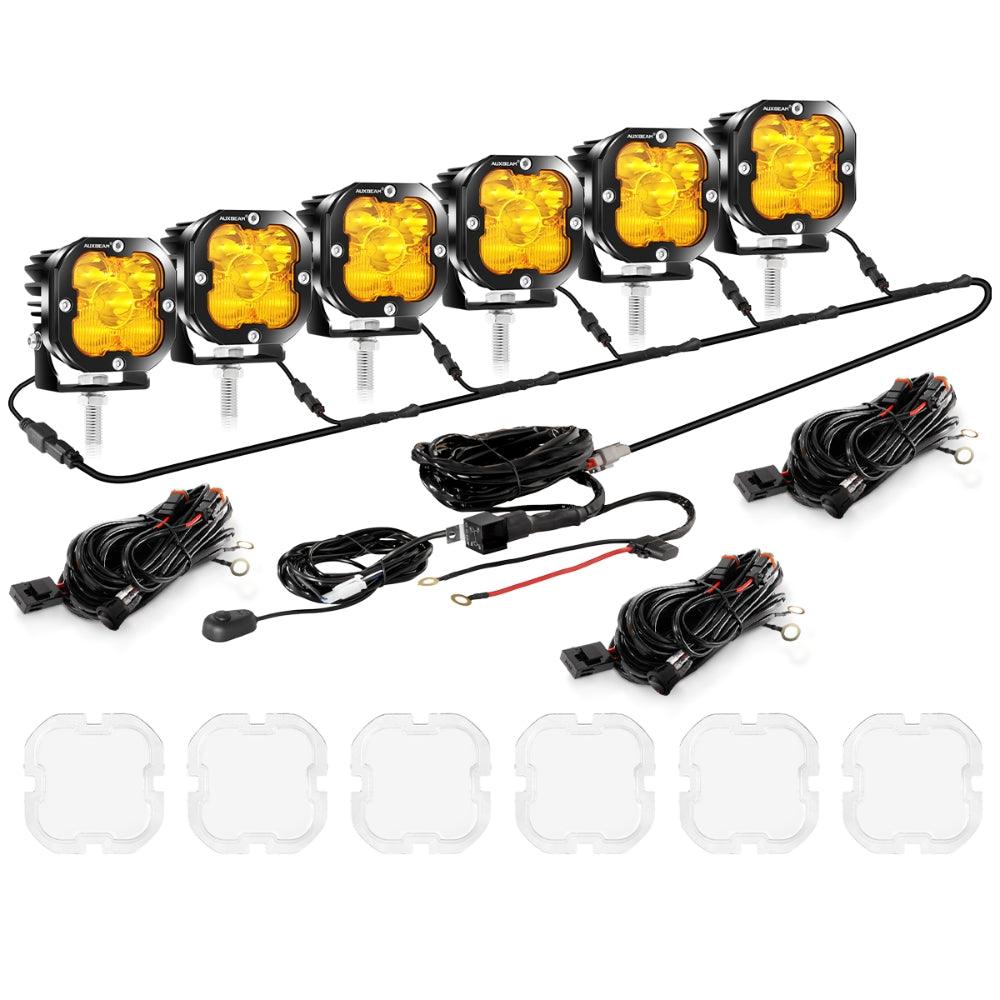

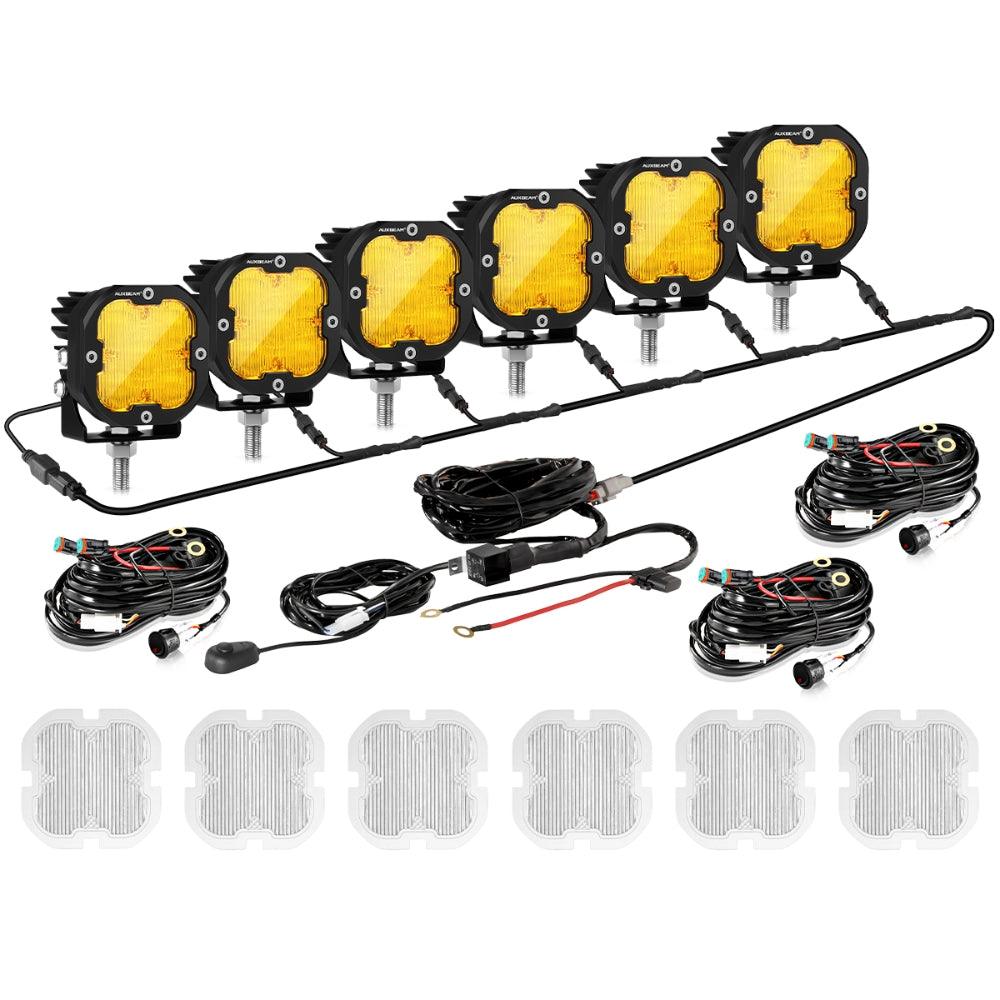

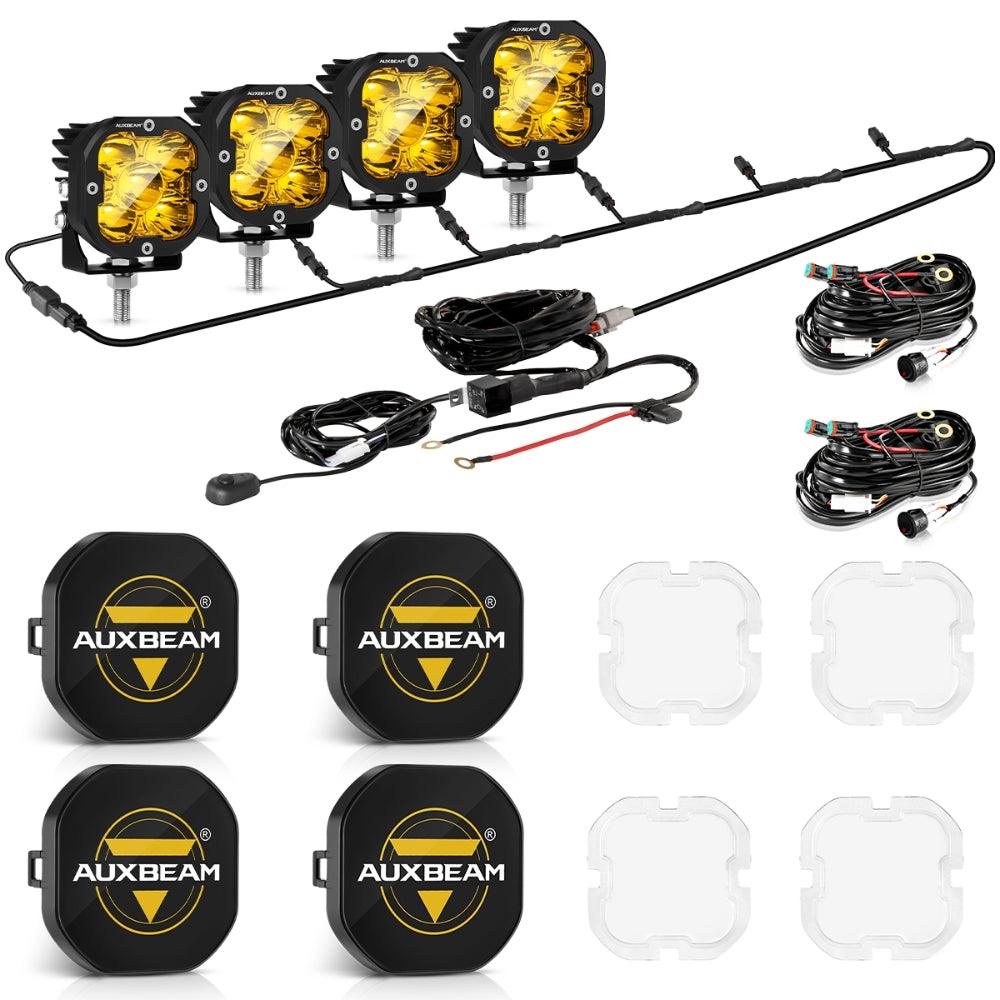

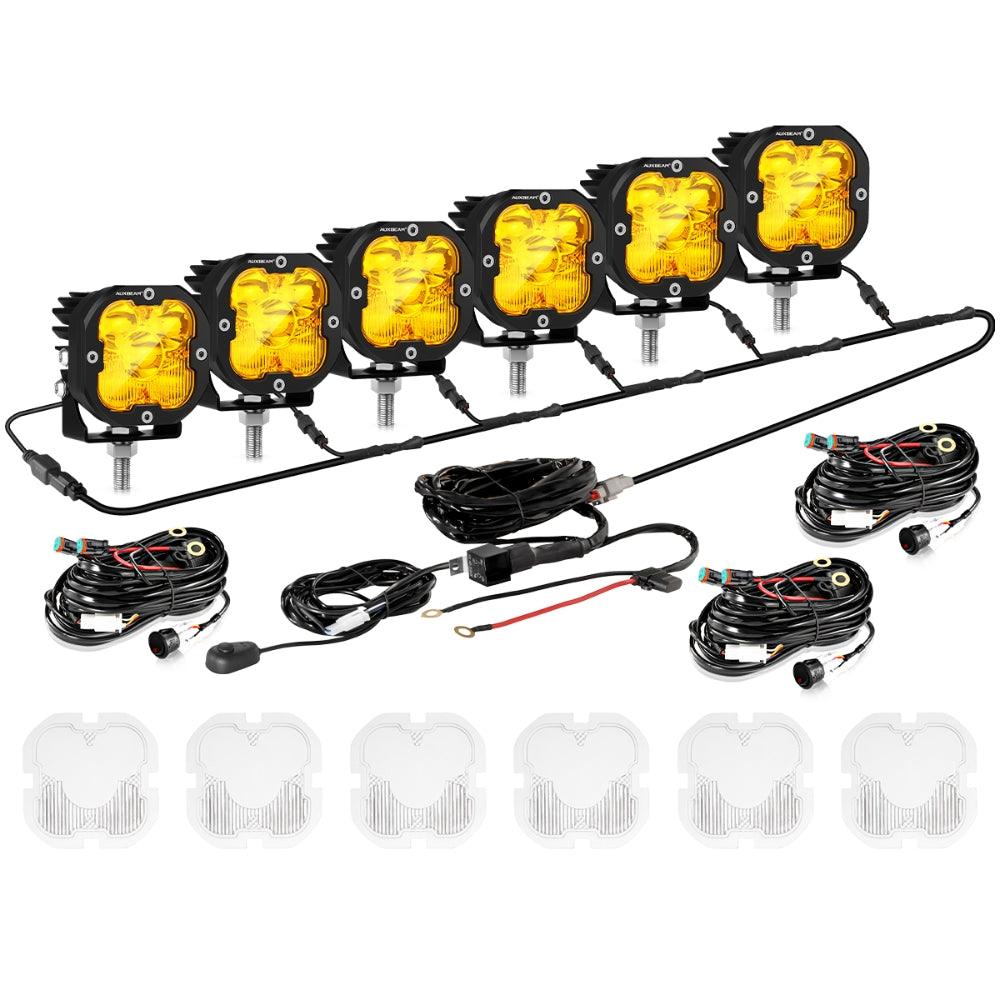

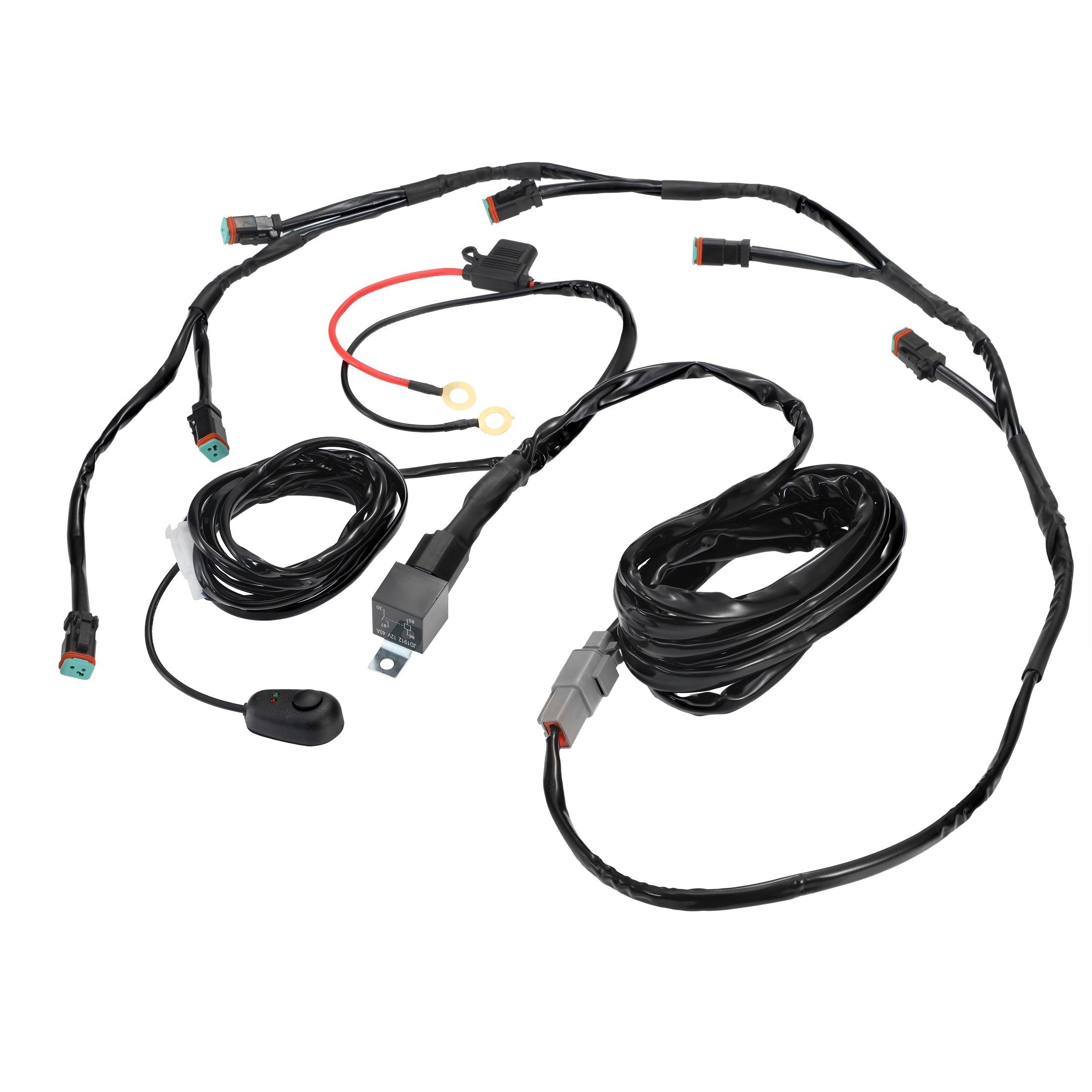

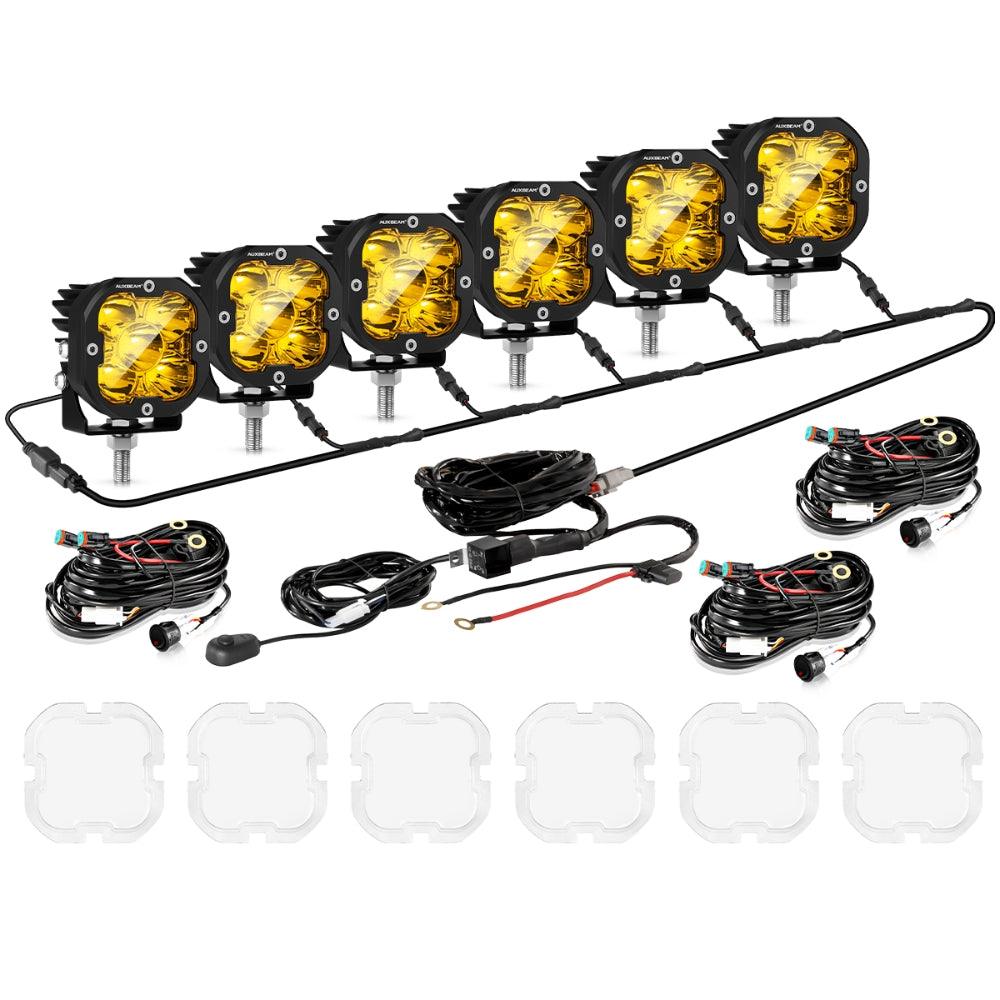

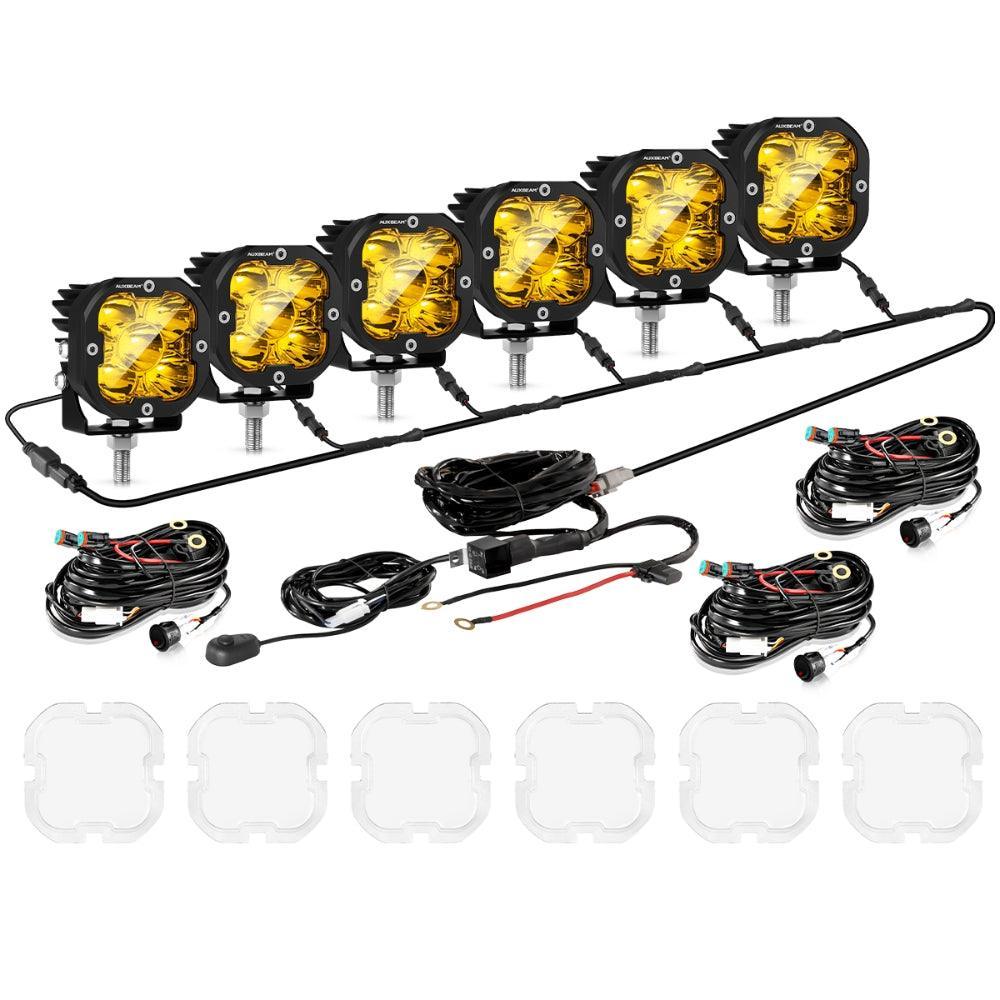

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

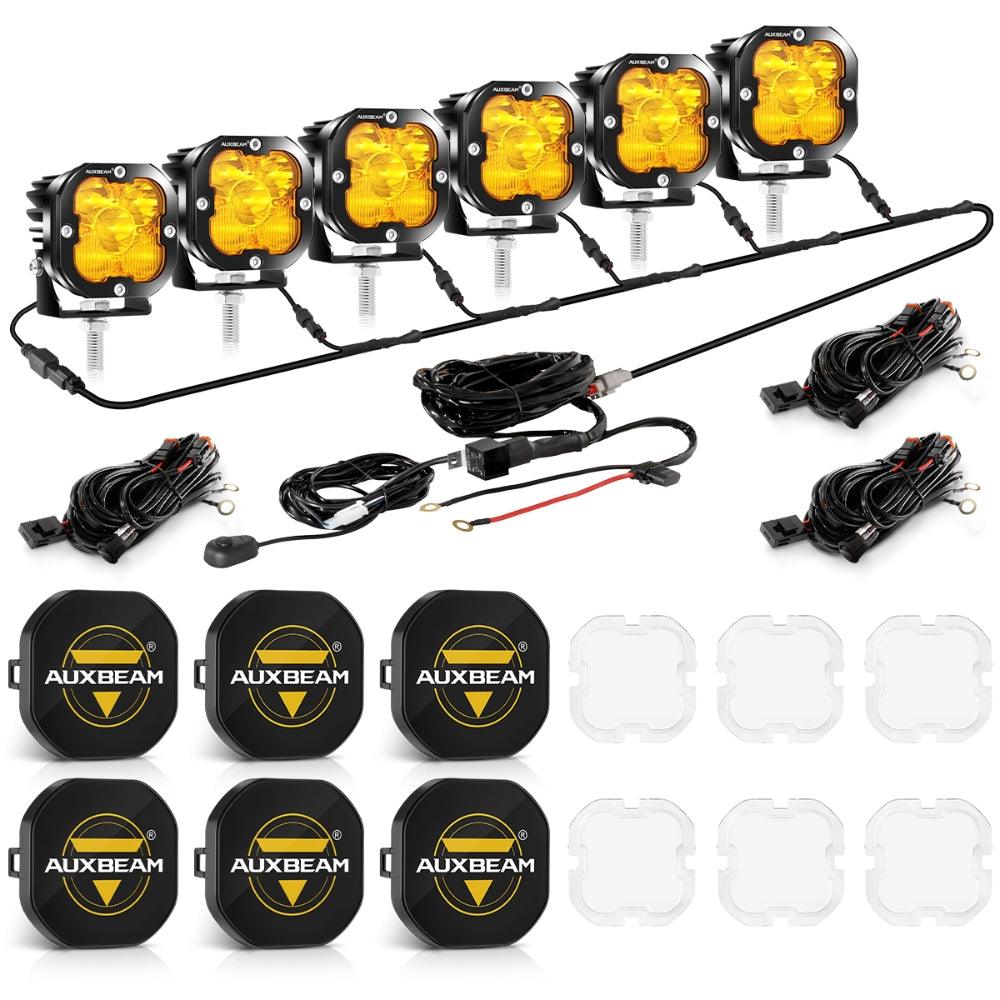

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

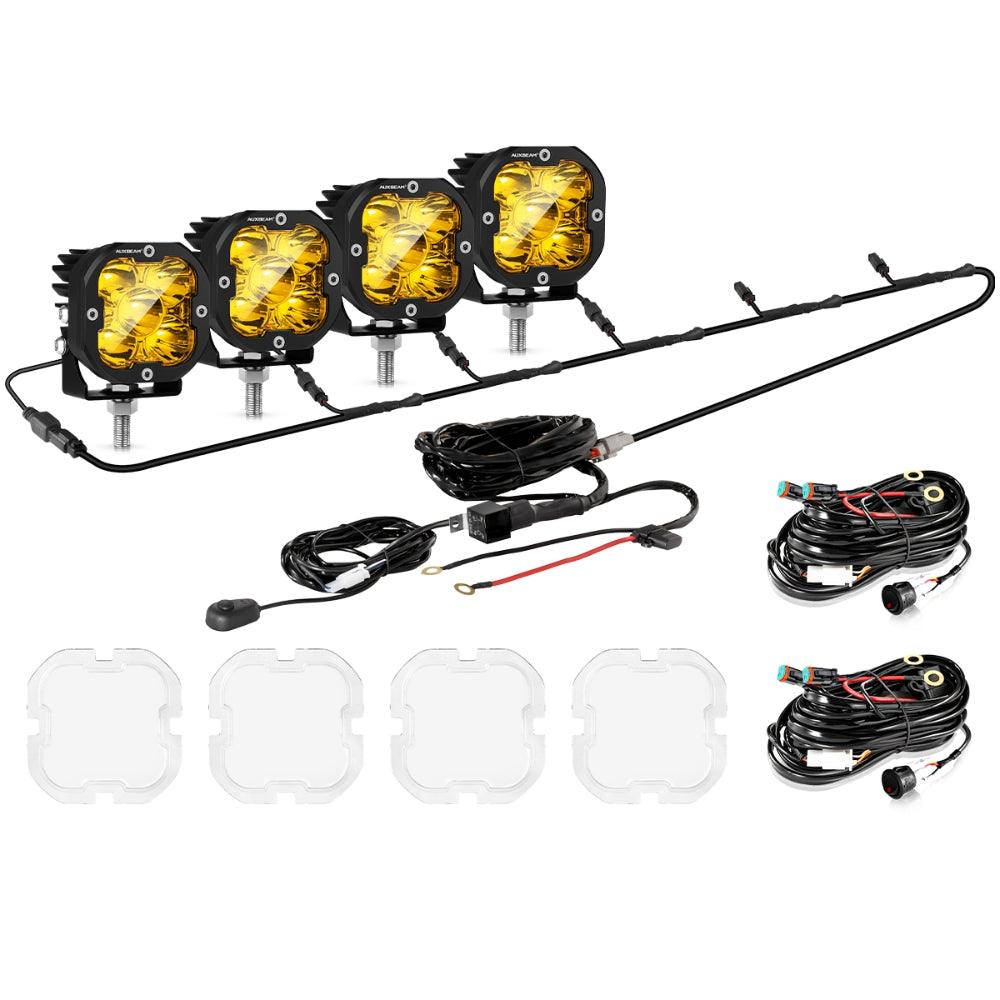

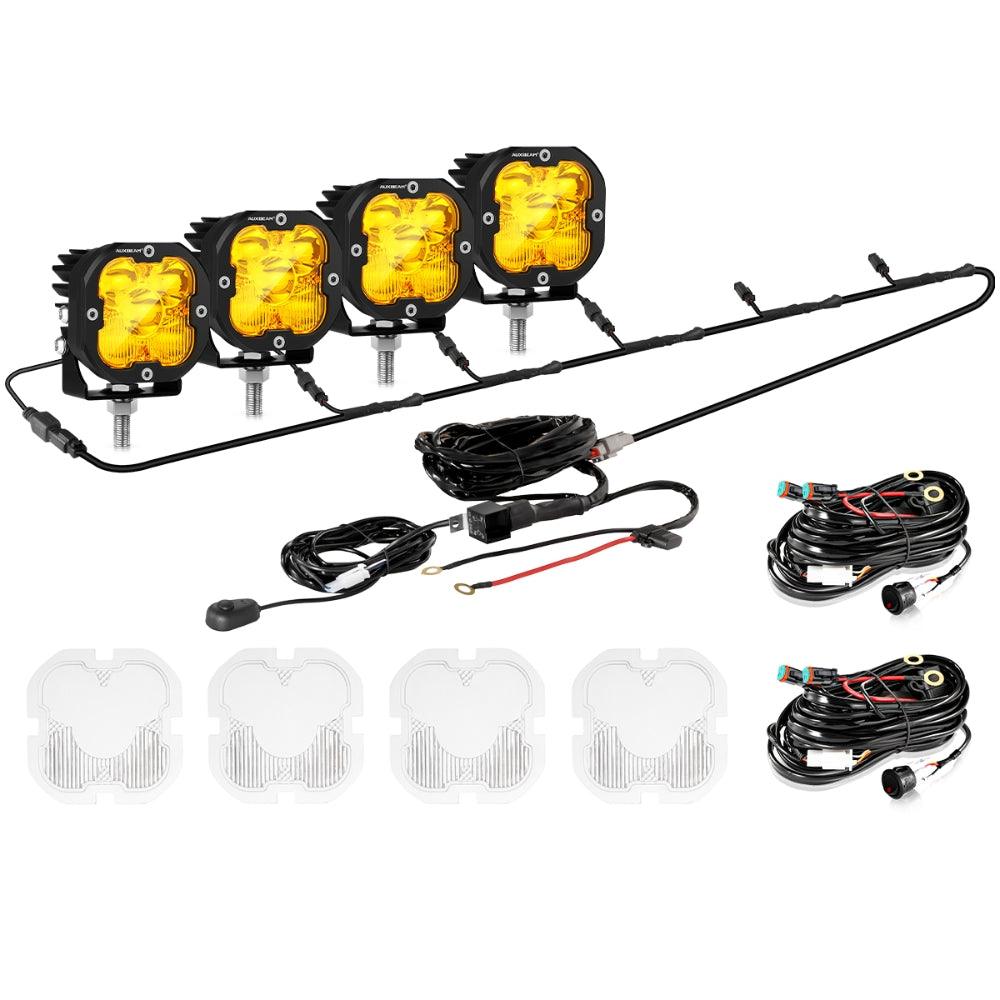

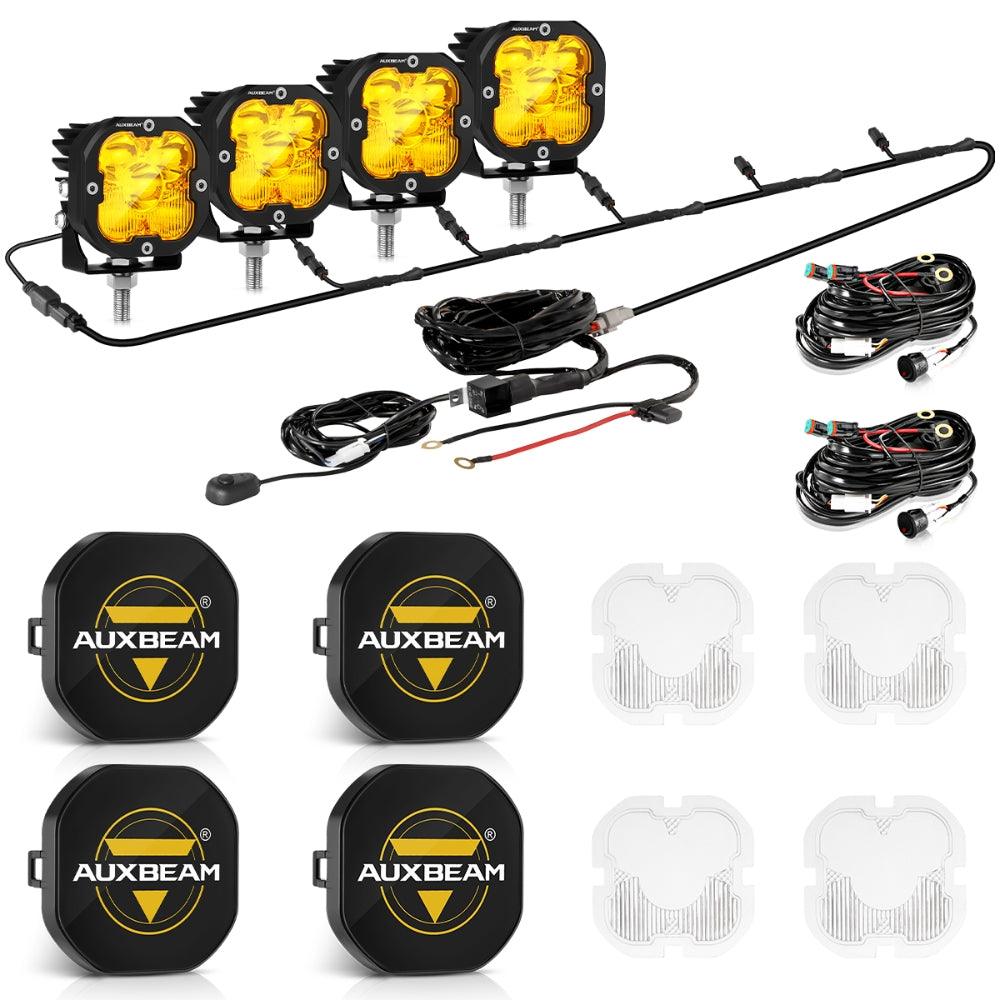

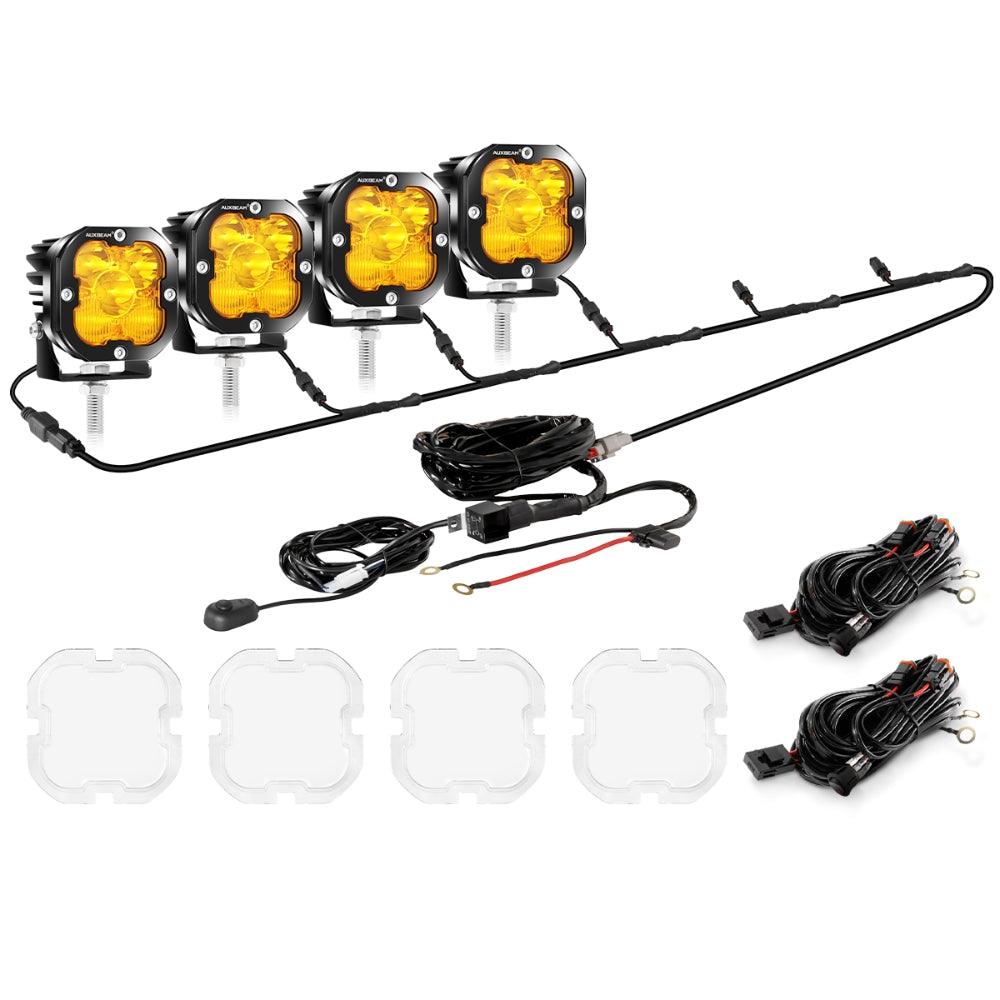

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

3-Pod Lights (A maximum of three pod lights can be installed):
ZD000675/ZD000858

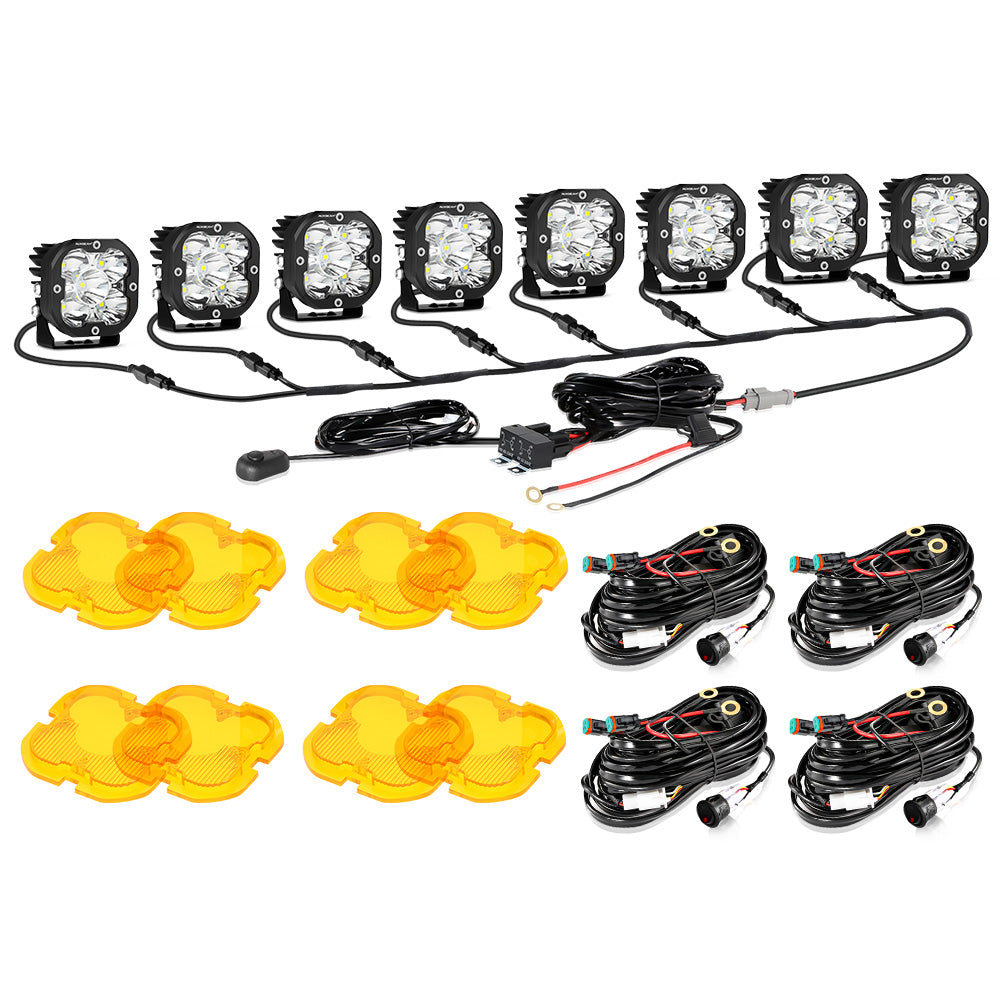

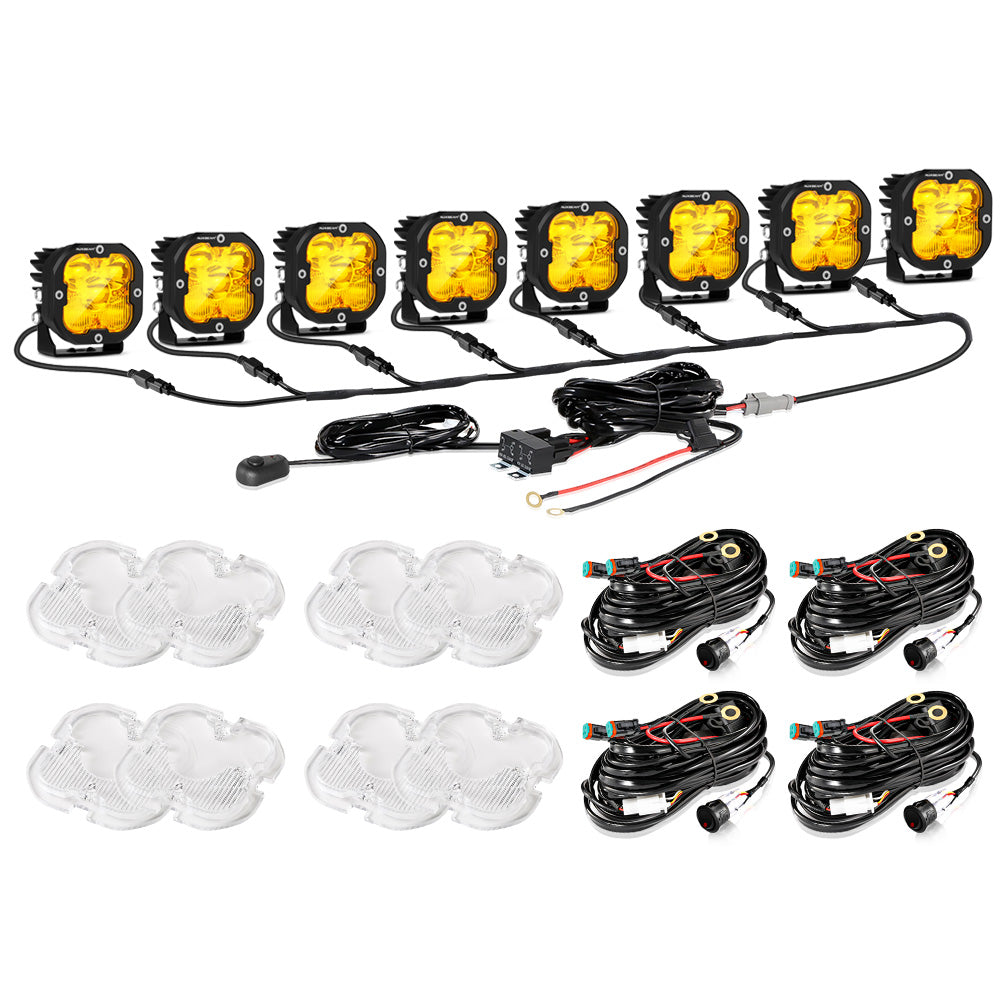

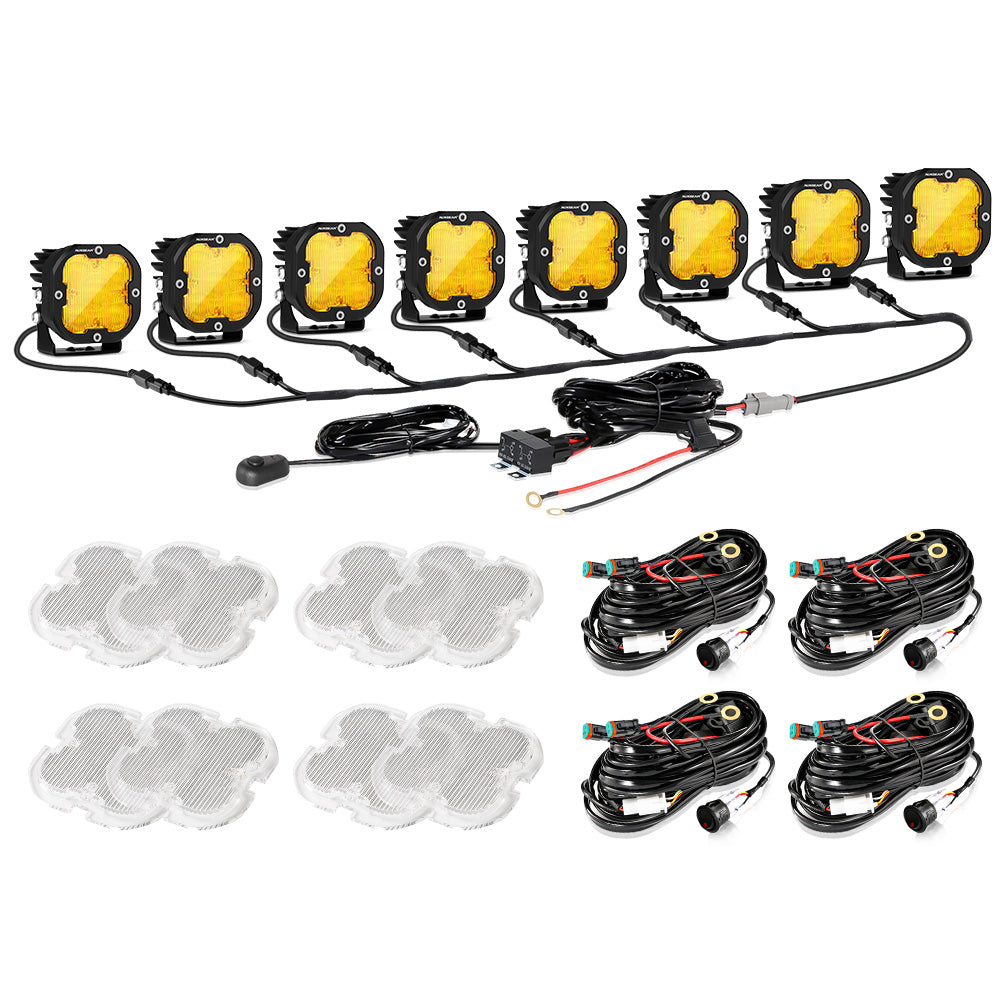

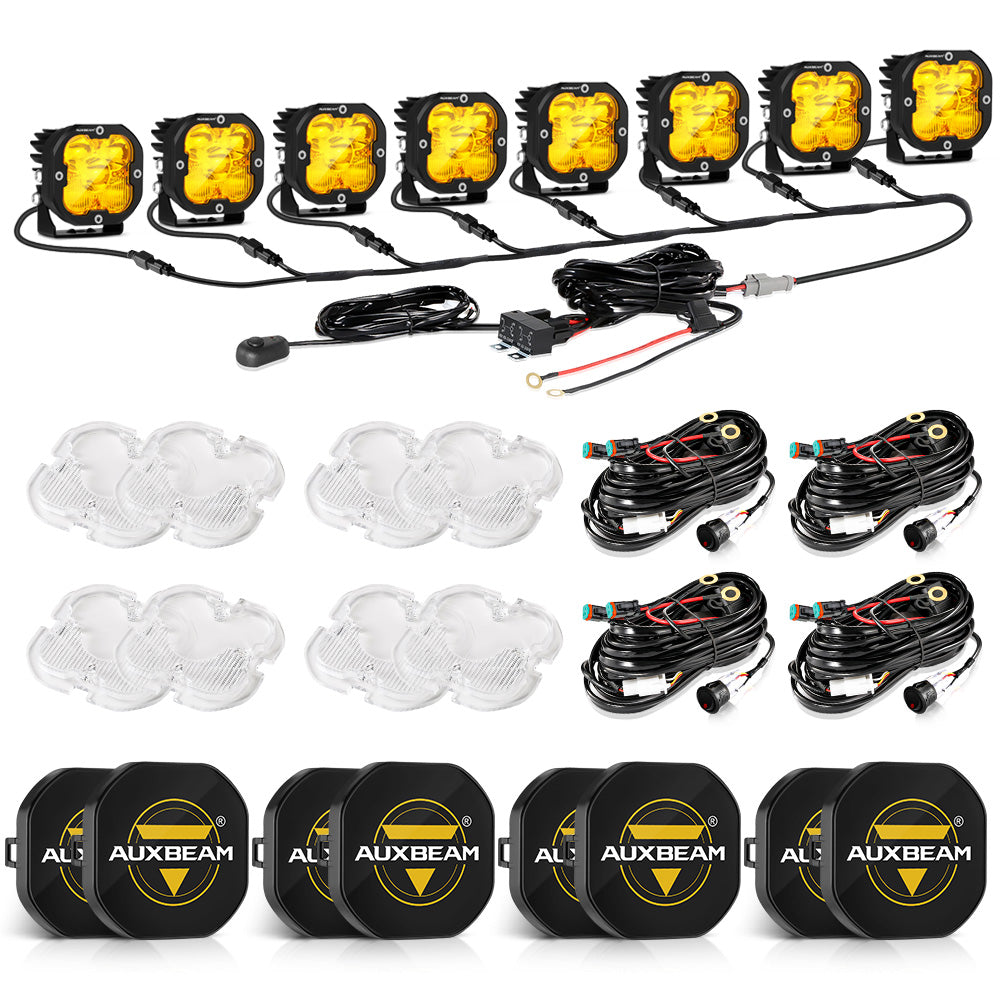

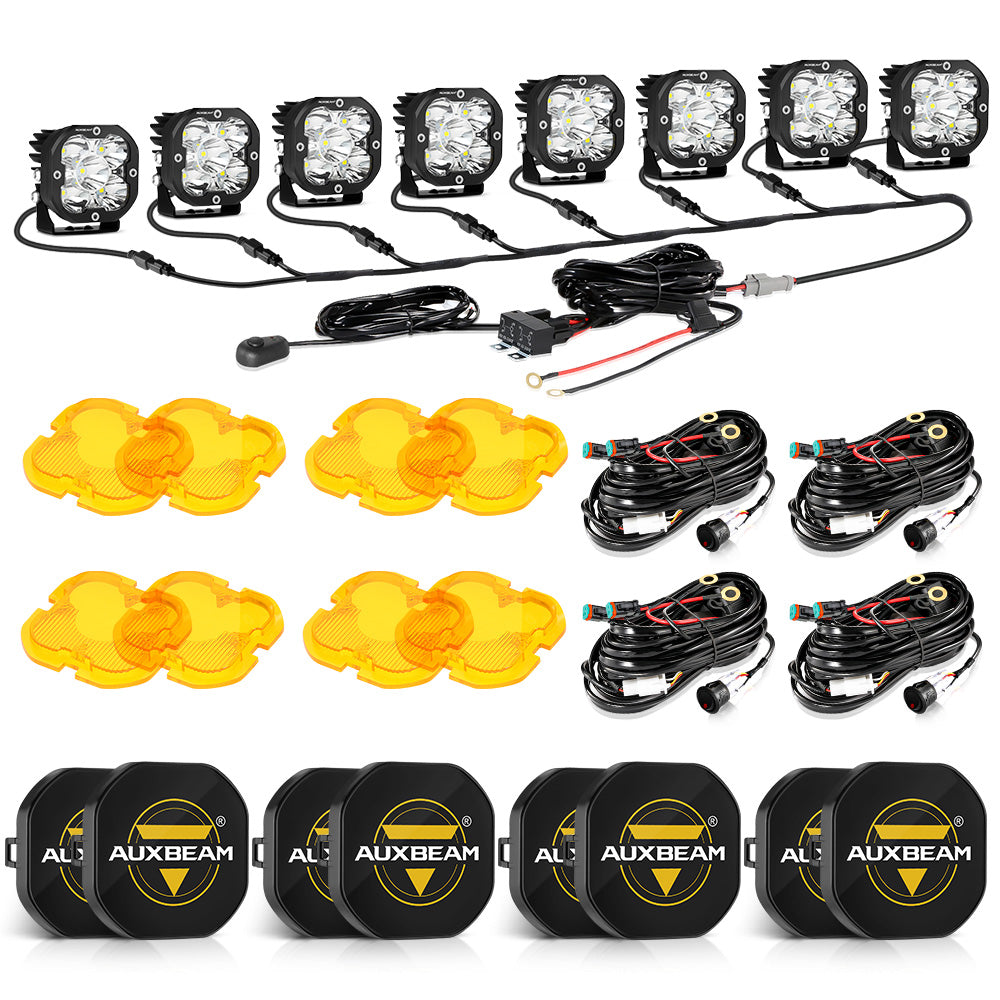

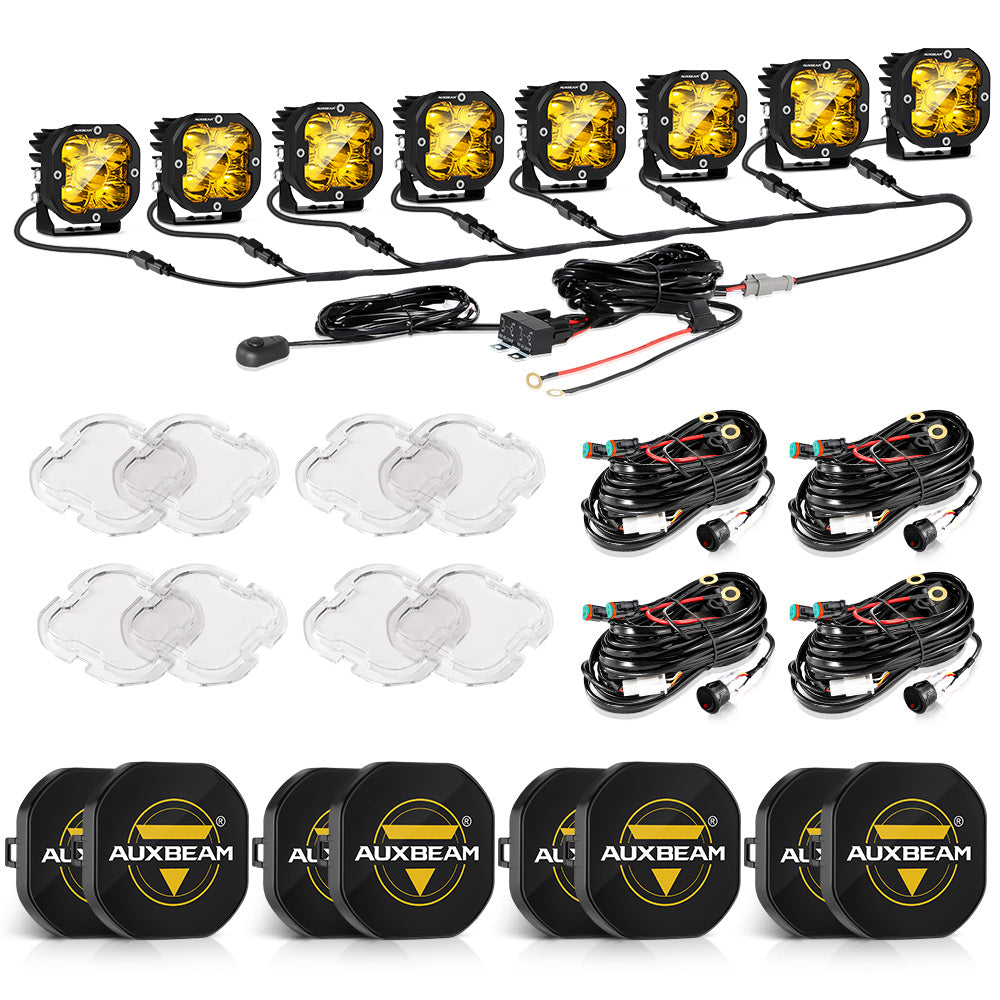

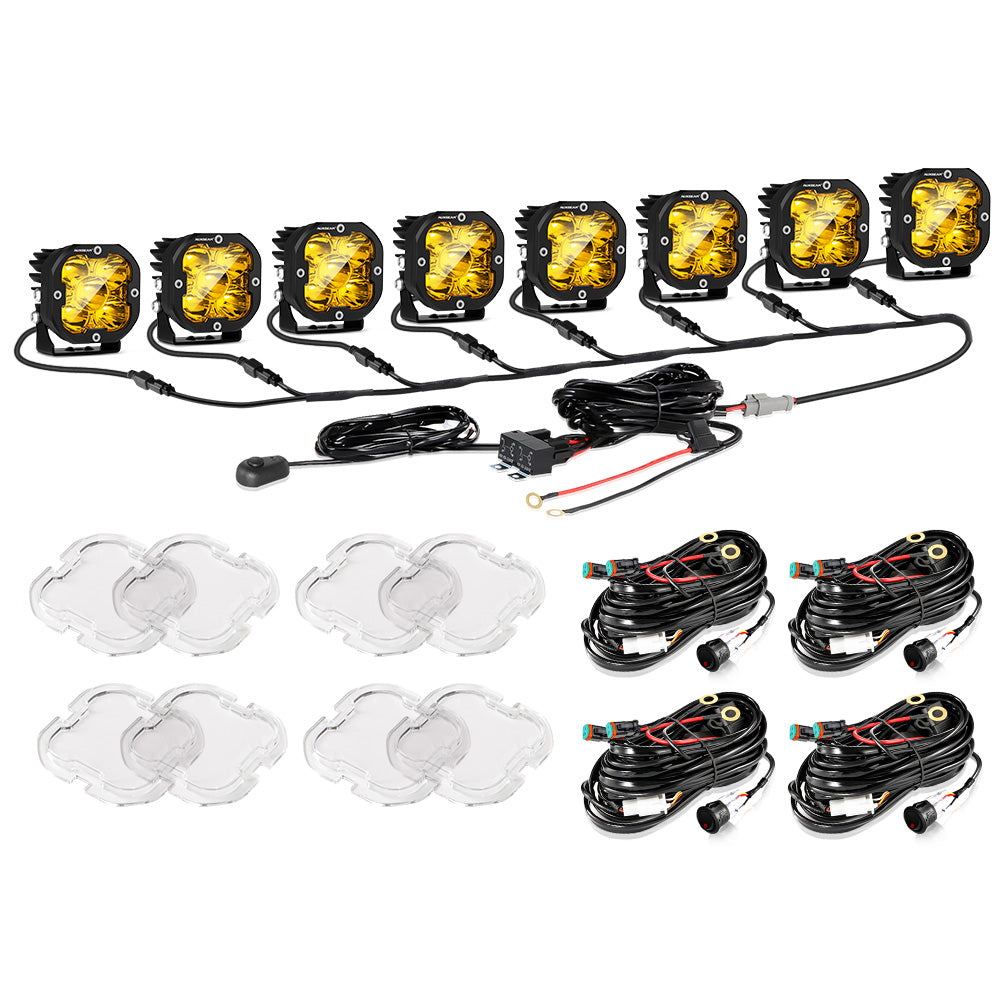

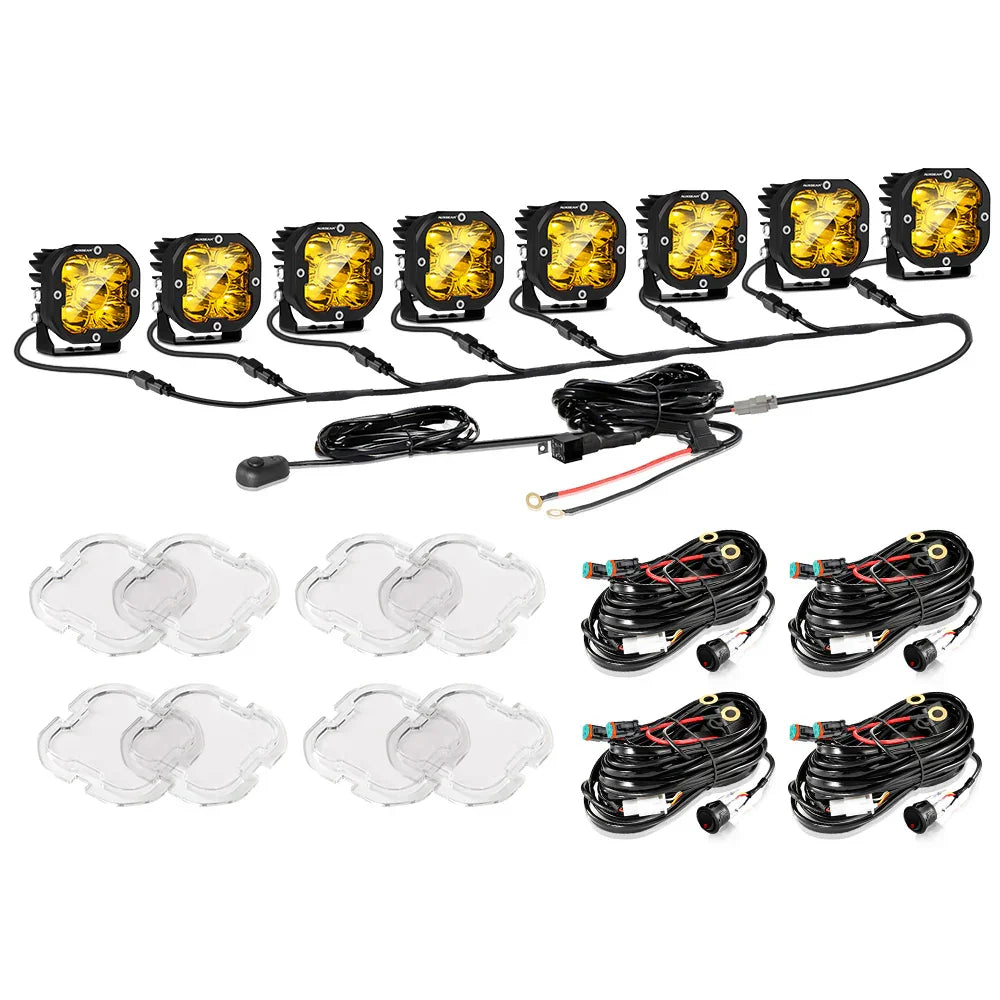

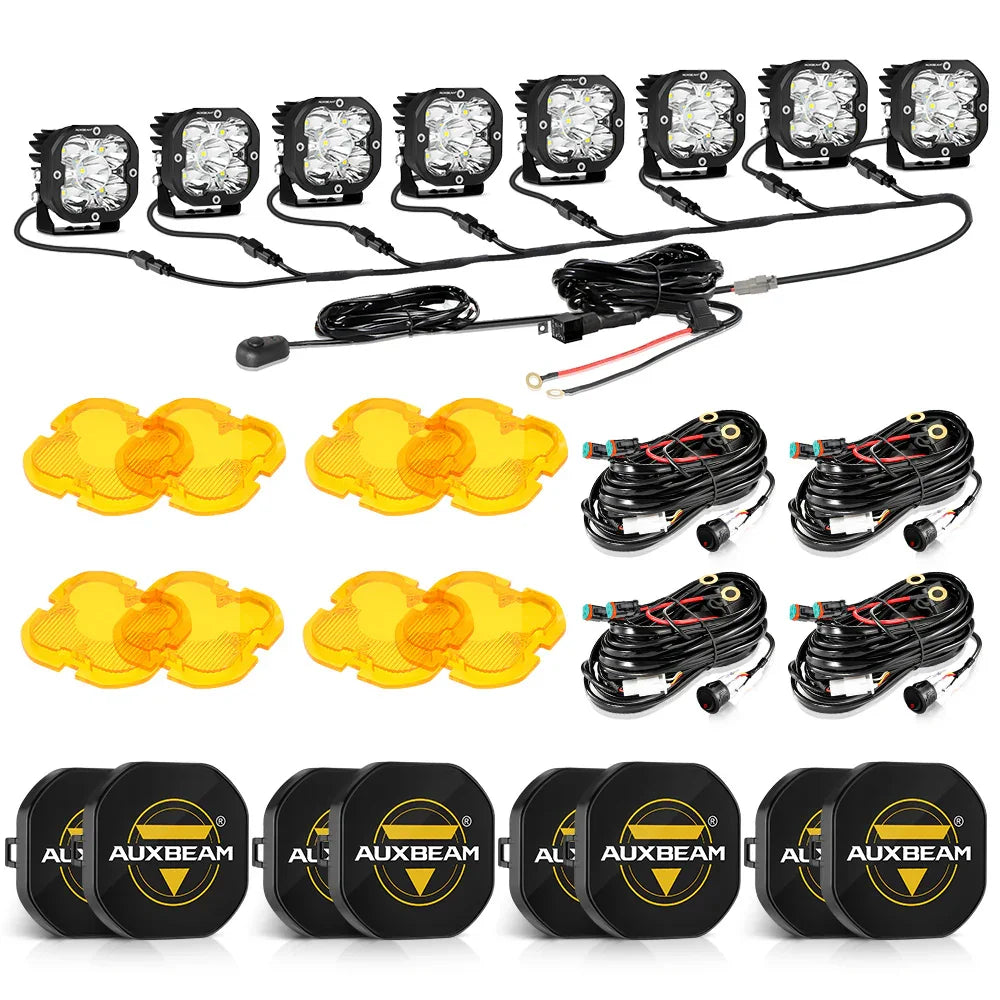

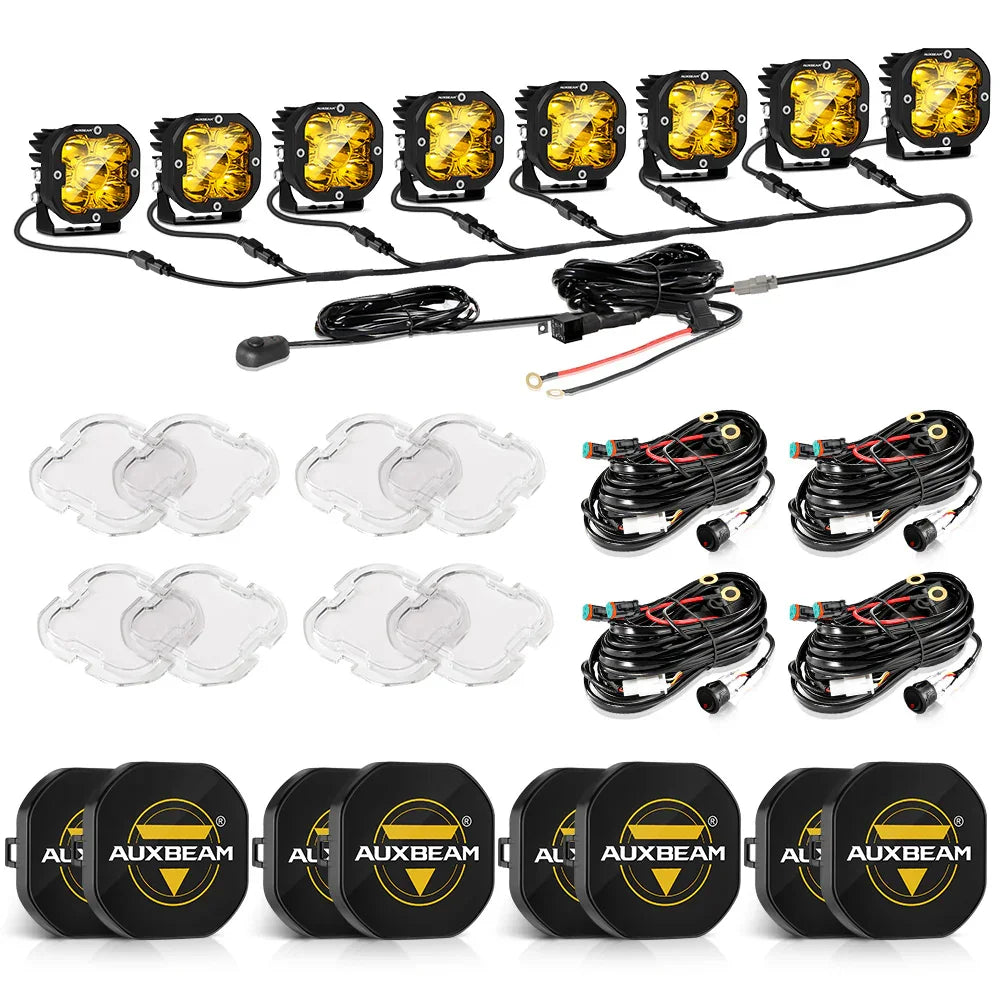

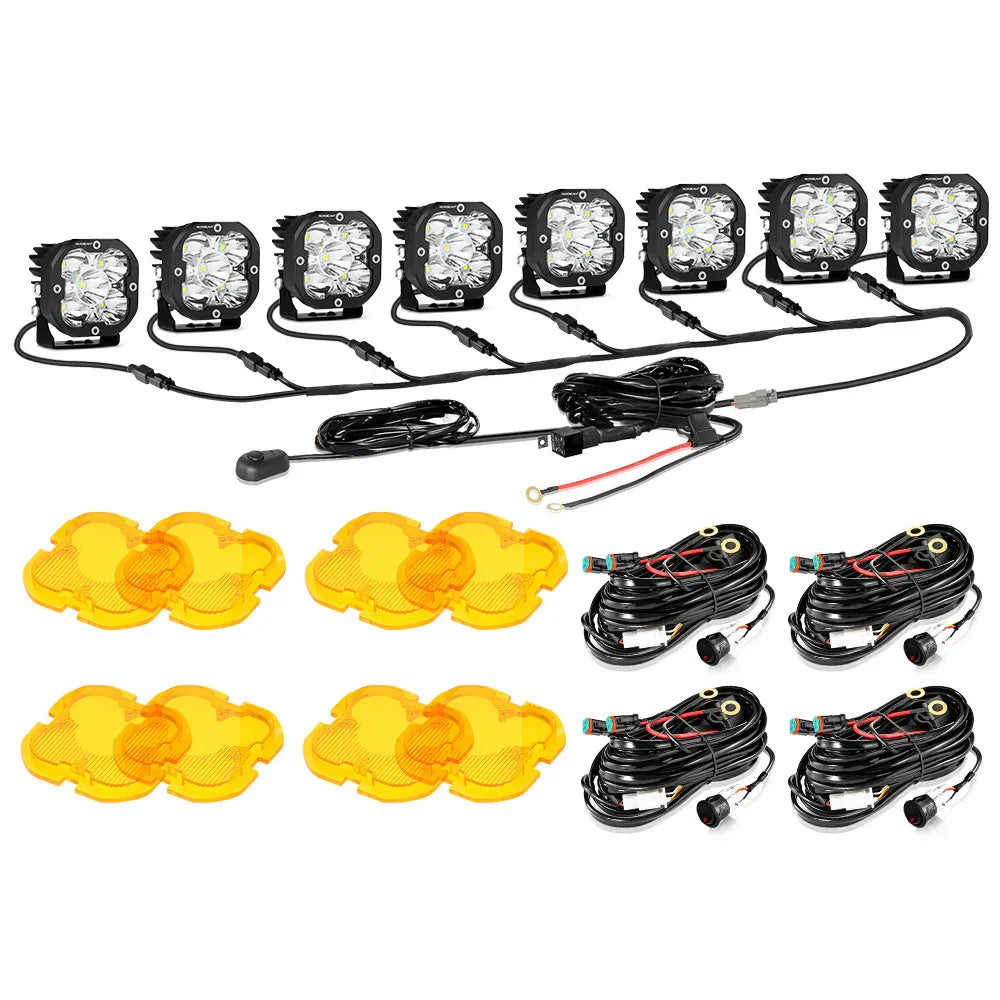

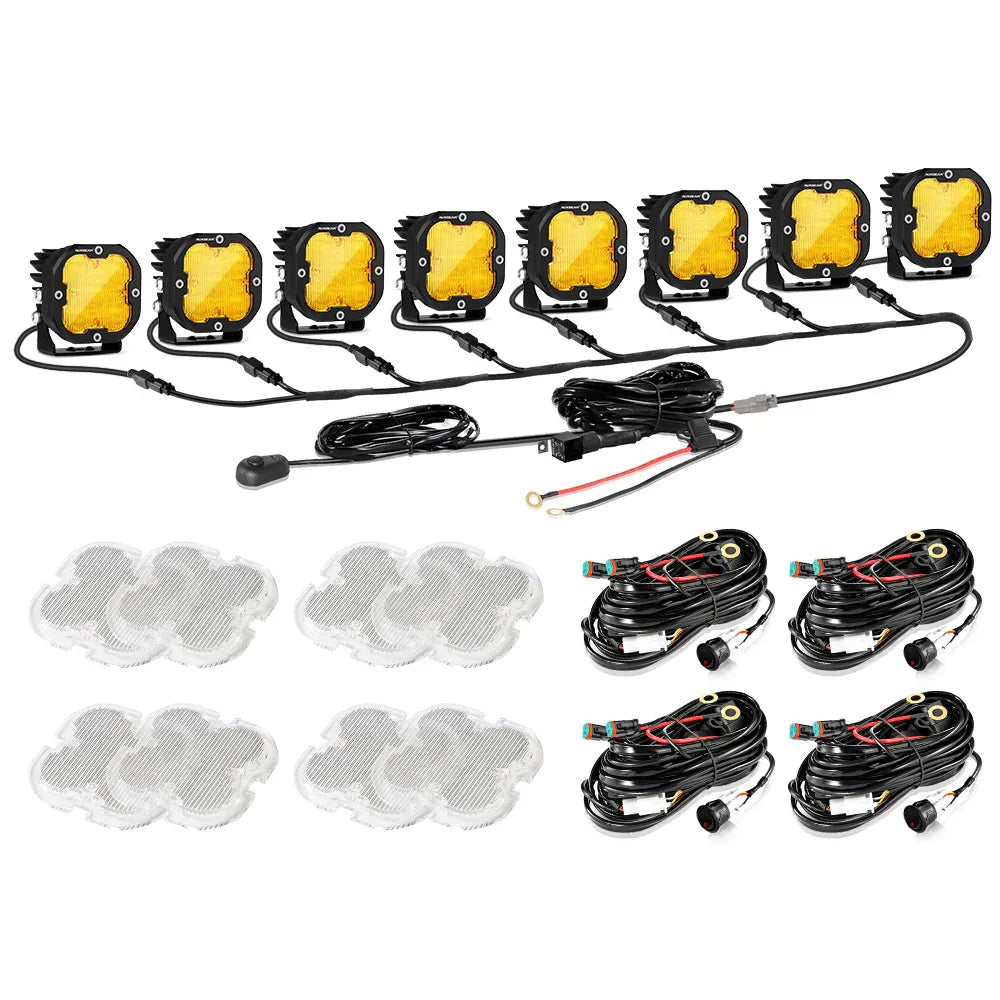

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

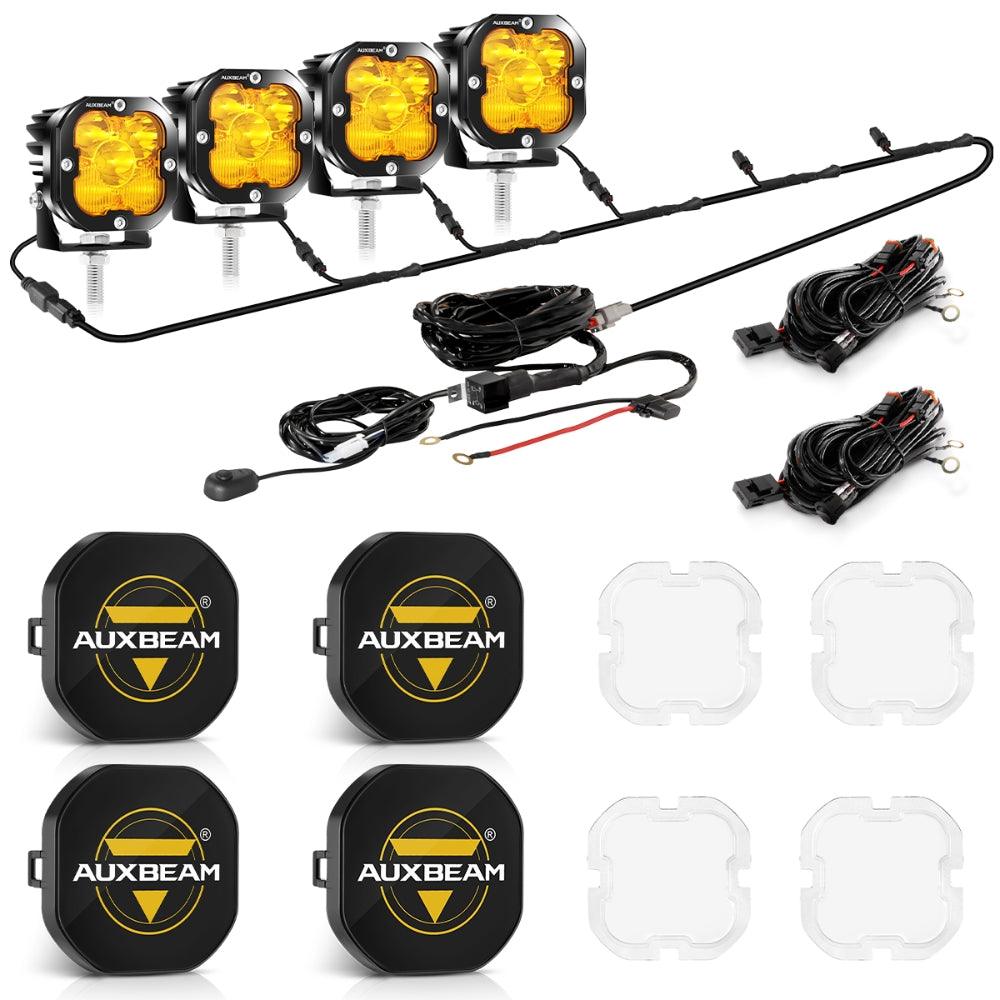

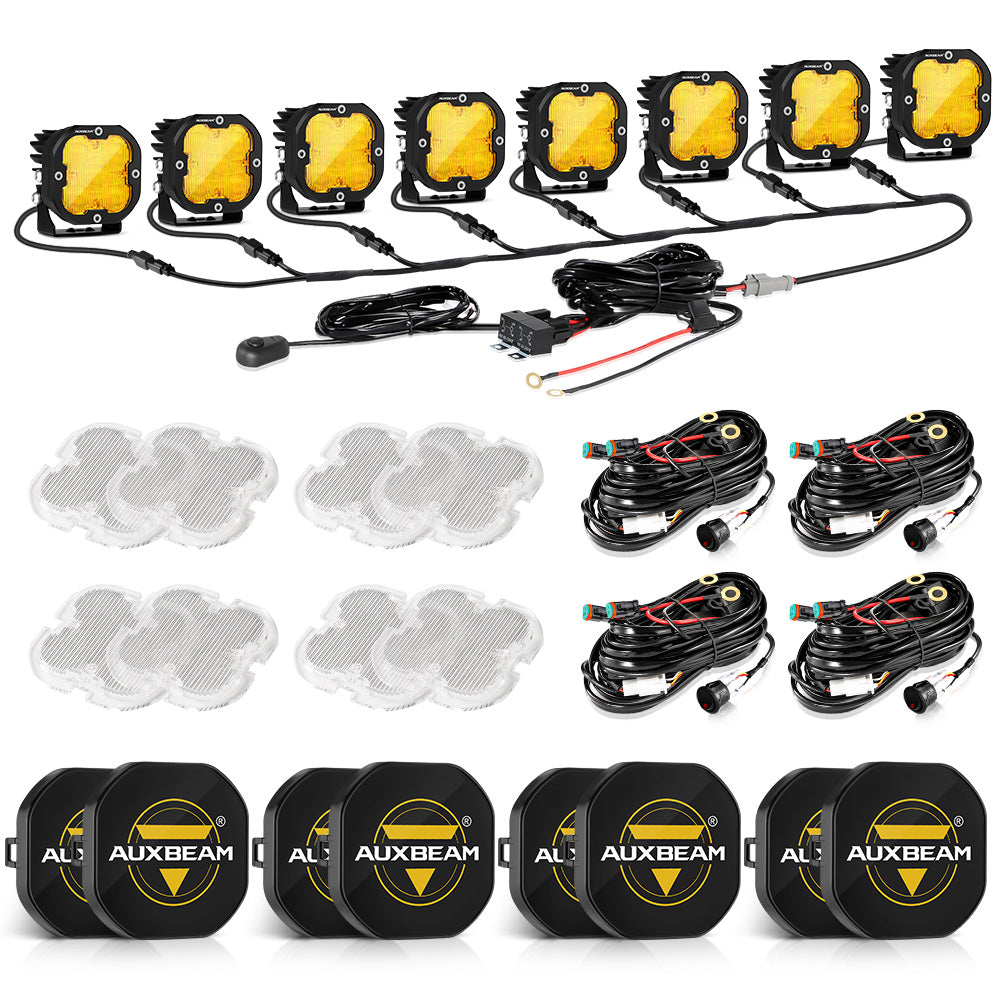

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000692/ZD000676/ZD000817/ZD000818/ZD000819
R4 Series: ZD000658/ZD000659/ZD000672/ZD000706/ZD000711
P4 Series: ZD000670/ZD000671/ZD000749/ZD000750
C4 Series: ZD000668/ZD000669
CUBE-Z Series: ZD000860/ZD000861/ZD000862
Color Play Series: ZD000865/ZD000866/ZD000867/ZD000868

6-Pod Lights (A maximum of six pod lights can be installed):
ZD000674/ZD000485/ZD000486/ZD000857

4-Pod Lights (A maximum of four pod lights can be installed):
ZD000675/ZD000858

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for two-wire single mode only ON/OFF main light, and also includes the 6 in 1 2PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.

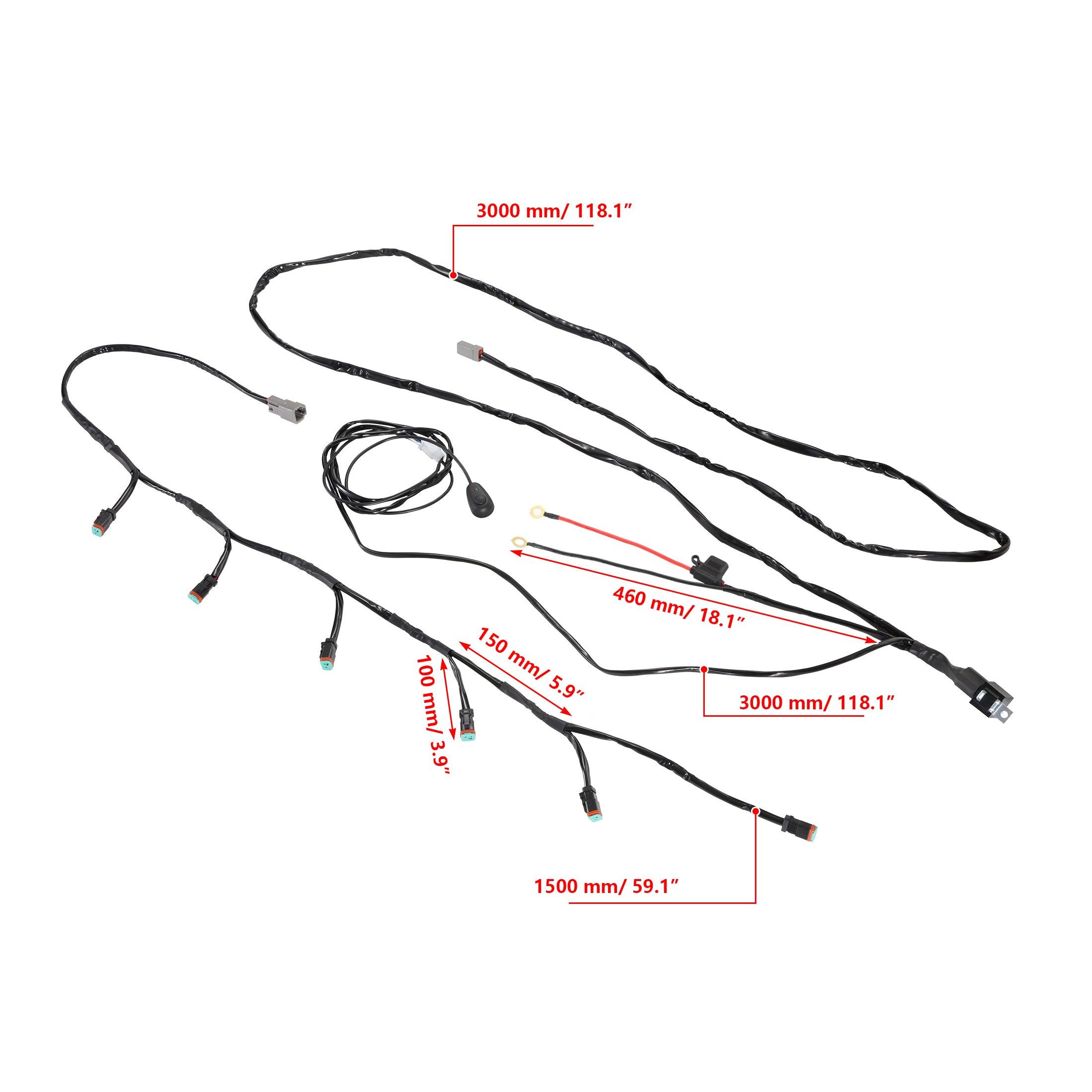

Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire and a DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 2 wires DT Plug and can be used for roof or bumper in your vehicle.

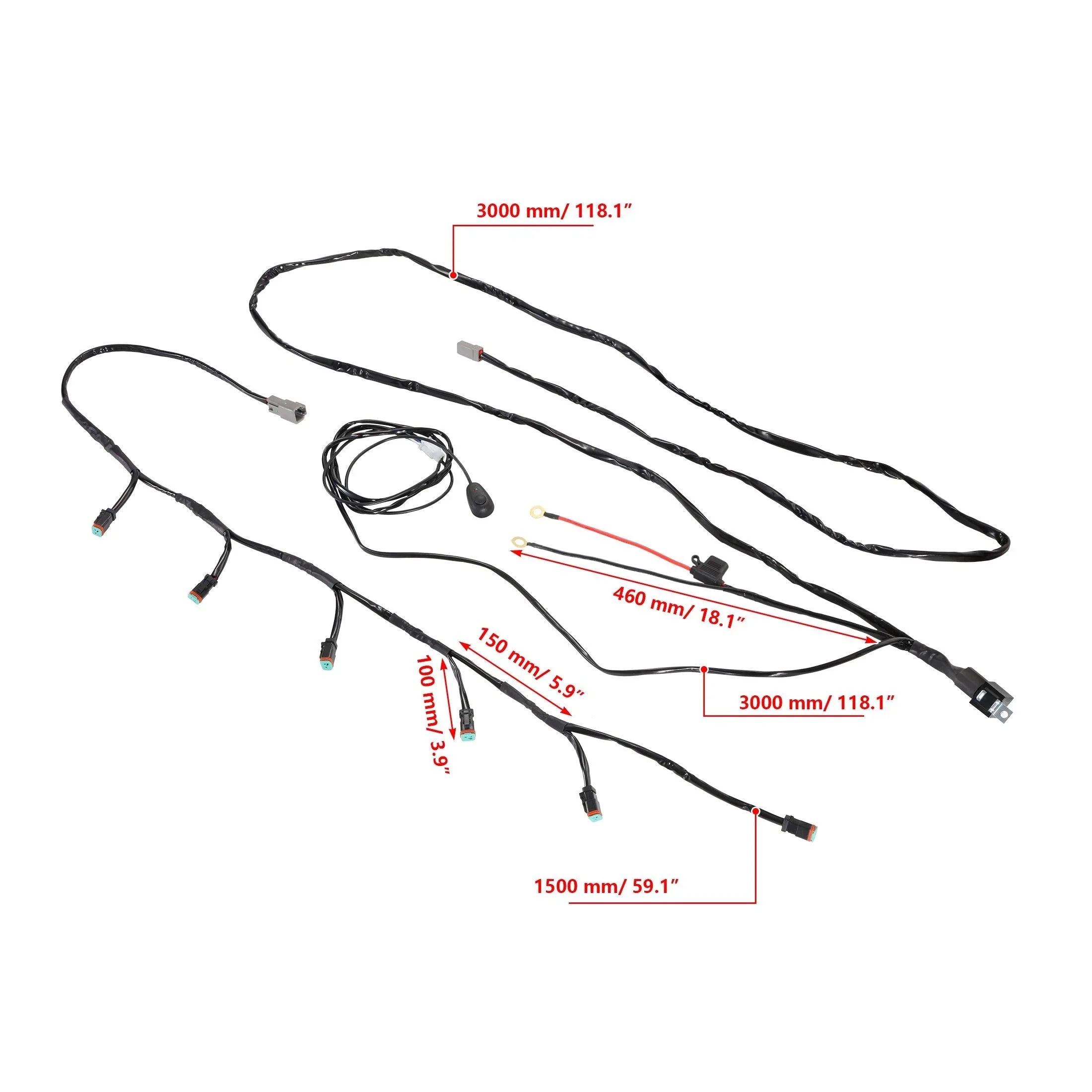

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 2 PIN
Wire Size: 10AWG National Standard
Wire Material: 5 mm² Copper Wire
Working Voltage: 12V（Replaceable 24V relay）

Type	Wire Length	Leads Power	Fuse Size
6-LED Pod Light Power Wiring Harness Kit	3M Extension Cord +1.5M Connect Cord	Max 384W（Current 40A）	40A
8-LED Pod Light Power Wiring Harness Kit	3.5M Extension Cord +2M Connect Cord	Max 480W（Current 40A）	50A
